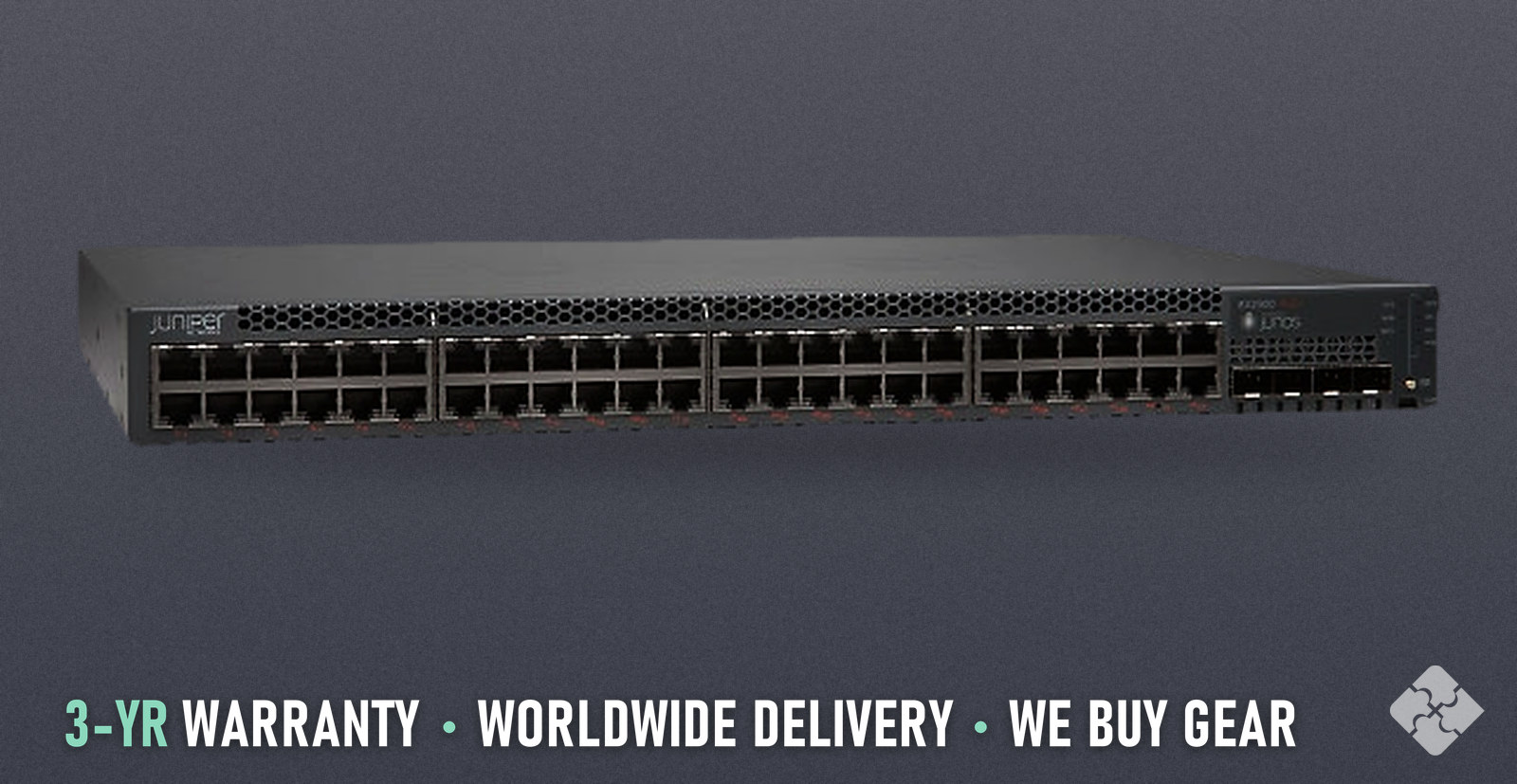

EX2300-48P
EX2300-48P Juniper Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 4x 1/10GbE SFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
EX2300-48P, in stock, ships worldwide.
$155
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- EX2300-48P
- Network Ports
- 48 × 1GbE
- Connectors
- RJ45, SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Juniper EX2300-48P is a switch from the Juniper EX2300 family with 48 ports of 1GbE PoE+ RJ45, 4 ports of 1/10GbE SFP+ and AC power. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX2300-48P / EX2300 Series Switch, 48x 10/100/1000BASE-T 802.3at PoE+ Ports (740W budget) + 4x 1GbE/10GbE SFP+ Uplinks
HOW IT DIFFERS
EX2300-48P is the 48-port PoE EX2300: 48 Gigabit Ethernet access ports, PoE or PoE+ on all 48 ports, and 740 W of maximum system PoE power. Its sister EX2300-48MP lists the same 48 ports and 740 W but first shipped with Junos OS 18.1R2, while the EX2300-48P is listed from Junos OS 15.1X53-D55. The EX2300-24P is the 24-port PoE model at 370 W.
TECHNICAL DETAILS
Brand: Juniper Family: EX2300 Uplinks: 4x 1/10GbE SFP+ Total ports: 52 Fastest port: 10GbE Management ports: Out-of-band Ethernet management port PoE: Yes PoE standard: 802.3at PoE budget: 740 W Operating system: Junos OS Rack units: 1U Airflow: 25 cfm Power input: AC Throughput: 176 Gbps switching capacity Dimensions: H 1.75 in (4.45 cm) x W 17.4 in (44.19 cm) x D 12.2 in (30.98 cm) Weight: 11.07 lb (5.02 kg) Power draw (maximum): 100 W AC (input power without PoE) Operating temperature: 32° to 113° F (0° to 45° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 10% to 85% (noncondensing) Operating altitude: up to 13,000 ft (3962 m) at 40° C according to GR-63 Acoustic noise: 51.4 dB CPU: 1.25GHz ARM CPU Memory (DRAM): 2 GB Flash storage: 2 GB (EX2300 non-multigigabit models) MAC addresses: 16,000 (in hardware) IPv4 routes: 512 prefixes; 4,096 host routes (unicast, in hardware) IPv6 routes: 512 prefixes; 2,048 host routes (unicast, in hardware) VLANs: 4093 (2044 active VLAN) Jumbo frames: 9216 bytes Stacking: Virtual Chassis, up to four switches, 80 Gbps interconnect Console port: RJ-45 serial console port USB port: rear panel USB port Certifications: FCC 47CFR Part 15 Class A; EN 55022 Class A; ICES-003 Class A; VCCI Class A
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/ex-series/ex2300-ethernet-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper EX2300-48P. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX2300-48P was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
EX2300-48P has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What power does the EX2300-48P use? The EX2300-48P uses AC, a PoE budget of 740 W and 802.3at. What software does the EX2300-48P run? The EX2300-48P runs Junos OS. What ports does the EX2300-48P have? The EX2300-48P has 48 × 1GbE, with uplinks of 4x 1/10GbE SFP+ and 52 data ports in all. What is the throughput of the EX2300-48P? The EX2300-48P has a throughput of 176 Gbps switching capacity. Which way does the air flow on the EX2300-48P? The airflow of the EX2300-48P is 25 cfm. How much power does the EX2300-48P draw? The maximum power draw of the EX2300-48P is 100 W AC (input power without PoE).
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
