EX3400-48P
EX3400-48P Juniper Switch, Front-to-Back, 48x 1GbE PoE+ RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
EX3400-48P, in stock, ships worldwide.
$375
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- EX3400-48P
- Network Ports
- 48 × 1GbE
- Connectors
- RJ45, SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

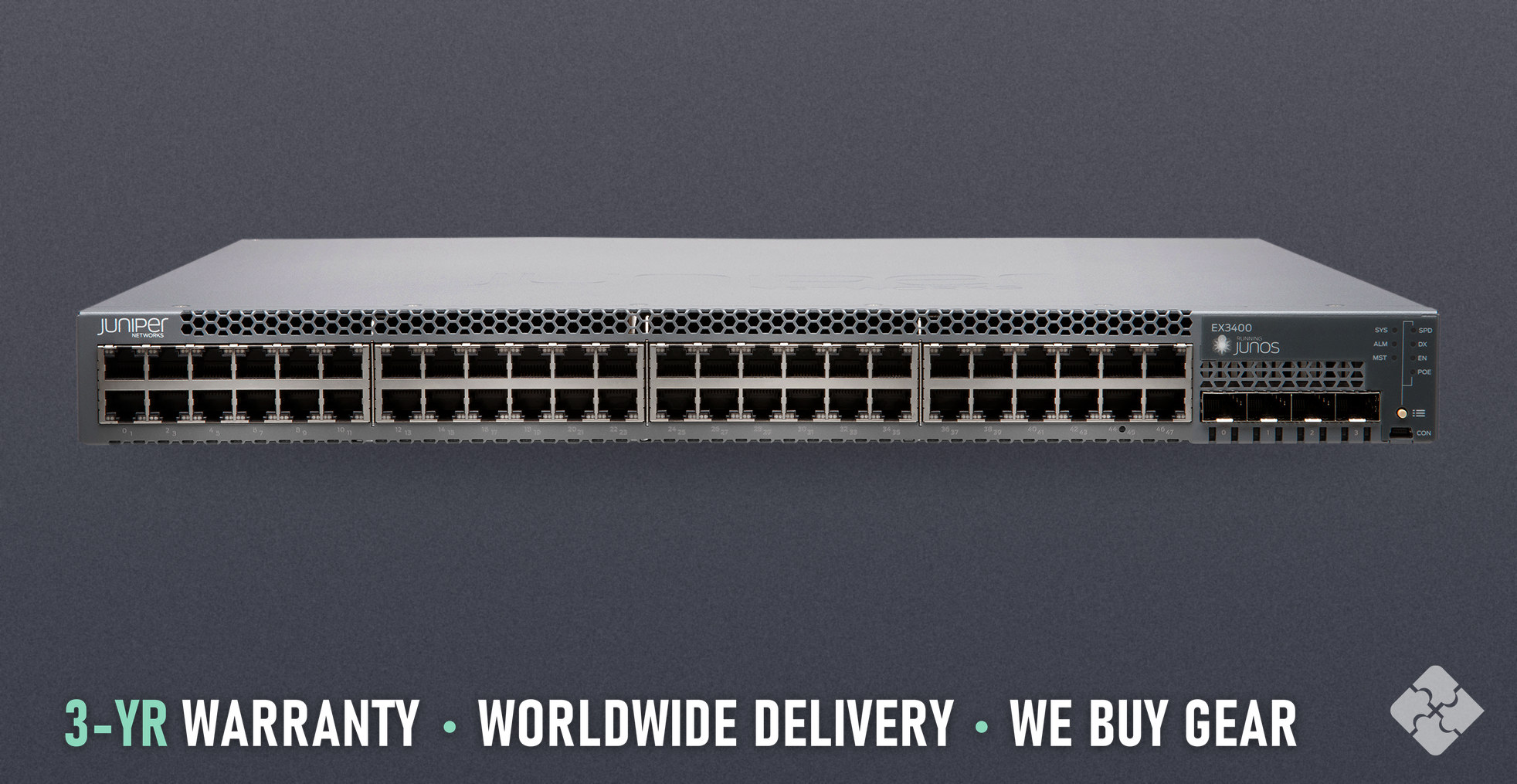

The Juniper EX3400-48P is a switch from the Juniper EX3400 family with 48 ports of 1GbE PoE+ RJ45, 4 ports of 1/10GbE SFP+, 2 ports of 40GbE QSFP+, front-to-back airflow and AC power. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX3400-48P / 48-port 1GbE PoE+ switch, 4x 1GbE/10GbE SFP+ uplinks, 2x 40GbE QSFP+ (Virtual Chassis)
HOW IT DIFFERS
EX3400-48P is the 48-port PoE model: 48 Gigabit Ethernet access ports, all of them PoE or PoE+, on the JPSU-920-AC-AFO supply. Juniper's table gives it 1440 W of system PoE with two 920 W power supplies installed and 740 W with one. The switch ships with one supply and a second is orderable. Its sister EX3400-24P has 24 PoE ports on a 600 W supply, with 720 W of PoE from two supplies and 370 W from one.
TECHNICAL DETAILS
Brand: Juniper Family: EX3400 Uplinks: 2x 40GbE QSFP+, 4x 1/10GbE SFP+ Total ports: 54 Fastest port: 40GbE PoE: Yes PoE standard: 802.3at PoE budget: 740 W Operating system: Junos OS Rack units: 1U Airflow: Front-to-back Power input: AC Dimensions: 17.36 x 1.72 x 13.78 in (44.1 x 4.37 x 35 cm), base unit, printed W x H x D Weight: 10.49 lb (4.76 kg) maximum, no power supply or fan module Power supplies: AC; 920W power supply rating Power draw (maximum): 120 W (input power without PoE) Operating temperature: 32° to 113° F (0° to 45° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 10% to 85% (noncondensing) Operating altitude: up to 10,000 ft (3048 m) Acoustic noise: 46 DBA CPU: Dual Core 1 GHz Memory (DRAM): 2 GB with ECC Flash storage: 2 GB Switching capacity: 168 Gbps (unidirectional)/336 Gbps (bidirectional) MAC addresses: 32,000 VLANs: 4,096 Jumbo frames: 9216 bytes Stacking: 160 Gbps (with QSFP+ ports) or 80 Gbps (with SFP+ ports) Virtual Chassis interconnect
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/ex-series/ex3400-ethernet-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper EX3400-48P. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX3400-48P was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
EX3400-48P has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What ports does the EX3400-48P have? The EX3400-48P has 48 × 1GbE, with uplinks of 2x 40GbE QSFP+, 4x 1/10GbE SFP+ and 54 data ports in all. What power does the EX3400-48P use? The EX3400-48P uses AC, a PoE budget of 740 W and 802.3at.
WHAT BUYERS ASK
Can the EX3400 be ordered with an additional power supply? Yes. The switch ships with one power supply preinstalled, additional power supplies are separately orderable, and up to two can be installed. Can I get a price and the quantity available for the EX3400-48P? Yes. Use Request a quote on this page with the part number EX3400-48P and the quantity you need. A firm price and the quantity available come back, typically the same business day. Does the EX3400-48P ship to my address? Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise. What condition is the EX3400-48P in? The EX3400-48P on this page is Refurbished, Tested & Guaranteed.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
