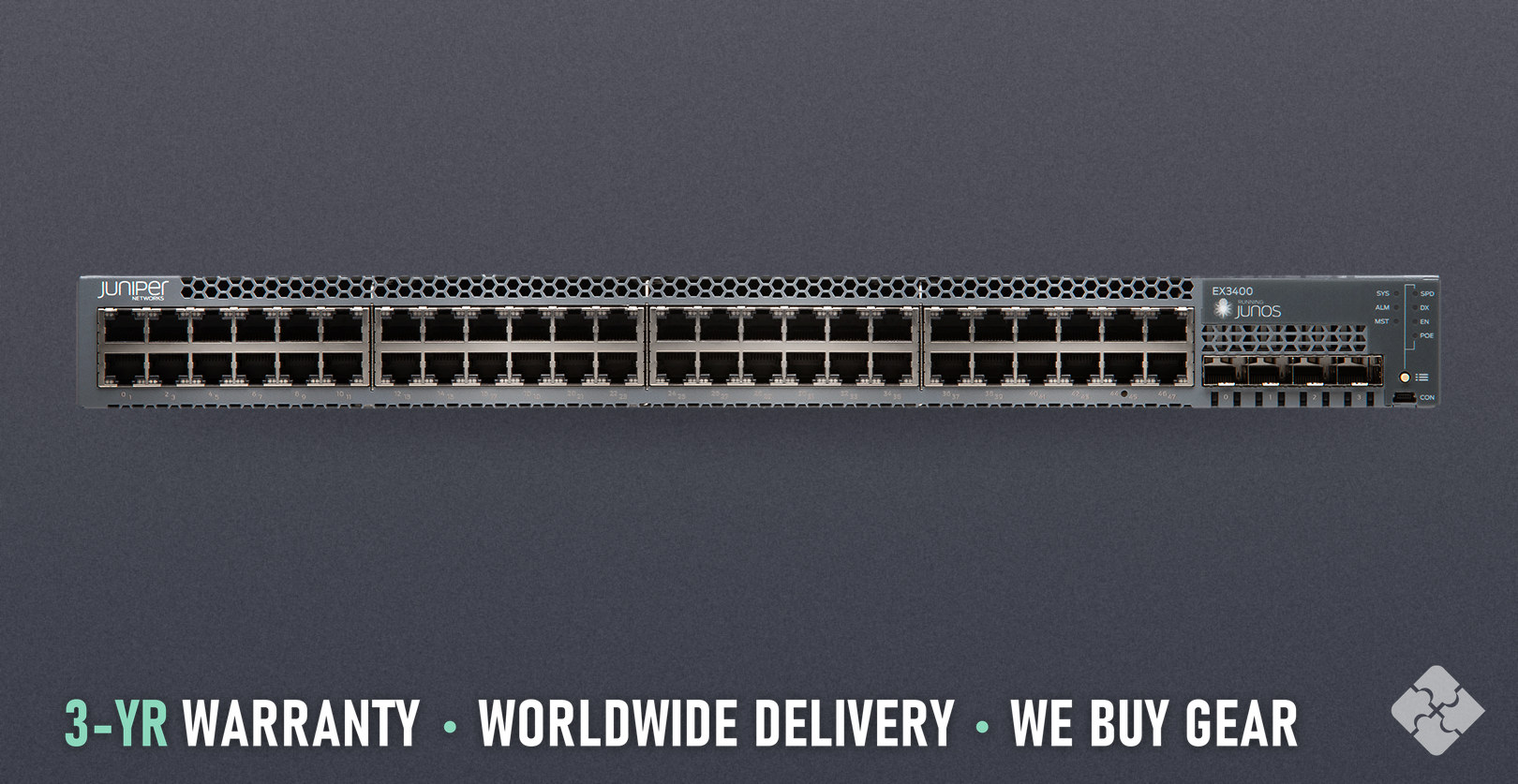

EX3400-48T
EX3400-48T Juniper Switch, Front-to-Back, 48x 1GbE RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
EX3400-48T, in stock, ships worldwide.
$245
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- EX3400-48T
- Network Ports
- 48 × 1GbE
- Connectors
- RJ45, SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Juniper EX3400-48T is a switch from the Juniper EX3400 family with 48 ports of 1GbE RJ45, 4 ports of 1/10GbE SFP+, 2 ports of 40GbE QSFP+, front-to-back airflow and AC power. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX3400-48T / EX3400 Series Switch, 48x 10/100/1000BASE-T Ports + 4x 1GbE/10GbE SFP+ Uplinks + 2x 40GbE QSFP+ Uplinks, Front-to-Back Airflow (optics sold separately)
HOW IT DIFFERS
EX3400-48T is the 48-port non-PoE EX3400: 48 Gigabit Ethernet access ports on the JPSU-150-AC-AFO supply with front-to-back airflow. Juniper lists a back-to-front version as EX3400-48T-AFI with the JPSU-150-AC-AFI supply. Its sister EX3400-24T has 24 ports on the same 150 W supply, and the EX3400-48P adds PoE to all 48 ports with a 920 W supply.
TECHNICAL DETAILS
Brand: Juniper Family: EX3400 Uplinks: 2x 40GbE QSFP+, 4x 1/10GbE SFP+ Total ports: 54 Fastest port: 40GbE PoE: Non-PoE Operating system: Junos OS Rack units: 1U Airflow: Front-to-back Power input: AC Throughput: 168 Gbps unidirectional / 336 Gbps bidirectional Dimensions: 17.36 x 1.72 x 13.78 in (44.1 x 4.37 x 35 cm), base unit, printed W x H x D Weight: 10.49 lb (4.76 kg) maximum, no power supply or fan module Fans: redundant fans Power supplies: AC; 150W rating; 1 AC PSU JPSU-150-AC-AFO included Power draw (maximum): 120 W (input power without PoE) Operating temperature: 32° to 113° F (0° to 45° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 10% to 85% (noncondensing) Operating altitude: up to 10,000 ft (3048 m) Acoustic noise: 35 DBA CPU: Dual Core 1 GHz Memory (DRAM): 2 GB with ECC Flash storage: 2 GB MAC addresses: 32,000 VLANs: 4,096 Jumbo frames: 9216 bytes Stacking: 160 Gbps (with QSFP+ ports) or 80 Gbps (with SFP+ ports) Virtual Chassis interconnect
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/ex-series/ex3400-ethernet-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper EX3400-48T. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX3400-48T was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
EX3400-48T has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What ports does the EX3400-48T have? The EX3400-48T has 48 × 1GbE, with uplinks of 2x 40GbE QSFP+, 4x 1/10GbE SFP+ and 54 data ports in all. What power does the EX3400-48T use? The EX3400-48T uses AC.
WHAT BUYERS ASK
Can the EX3400 be ordered with an additional power supply? Yes. The switch ships with one power supply preinstalled, additional power supplies are separately orderable, and up to two can be installed.
