ICX7150-24P-4X10GR
ICX7150-24P-4X10GR Brocade Switch, AC Power, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 10GbE SFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
ICX7150-24P-4X10GR, in stock, ships worldwide.
$985
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- ICX7150-24P-4X10GR
- Network Ports
- 24 × 1GbE
- Connectors
- RJ45, SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

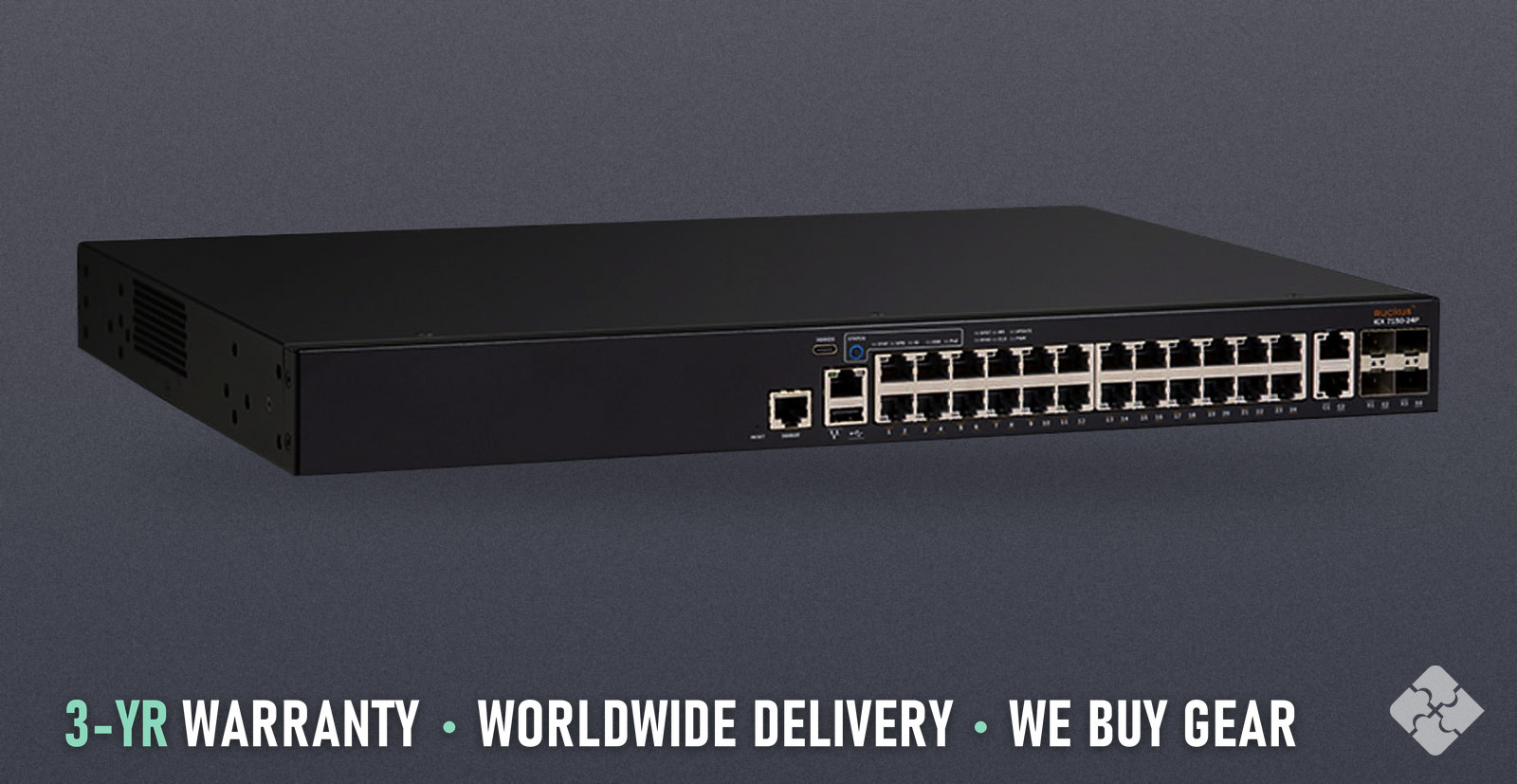

The Brocade ICX7150-24P-4X10GR is a switch from the Brocade ICX7150 family with 24 ports of 1GbE PoE+ RJ45, 4 ports of 10GbE SFP+ and AC power. It has 30 ports in all. It runs RUCKUS FastIron. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Ruckus (Brocade) ICX7150-24P-4X10GR / ICX 7150 Series Switch, 24x 10/100/1000 PoE+ Ports (370W Budget) + 2x 1GbE RJ45 + 4x 10GbE SFP+ Uplinks
HOW IT DIFFERS
ICX7150-24P-4X10GR is the top uplink option of the 24 port PoE+ line: 24 PoE+ ports, 2 one-gigabit RJ45 uplinks and 4 10 GbE SFP+ stacking and uplink ports, a 370 W PoE budget and the Layer 3 features OSPF, VRRP, PIM and PBR. ICX7150-24P-4X10GR is the only one of the three with all four uplinks at 10 GbE SFP+ as shipped; the 24 port models ending in X1G and X10G carry basic Layer 3 (static routing and RIP) instead. Its sister ICX7150-24P-2X10G has two 10 GbE SFP+ and two 1 GbE SFP uplinks, and ICX7150-24P-4X1G has four 1 GbE SFP uplinks.
TECHNICAL DETAILS
Brand: Brocade Family: ICX7150 Compatible with: Stacks with the other ICX 7150 models, up to 12 switches in a stack, on up to four 10 GbE SFP+ ports. All four uplinks are already SFP+ and the Layer 3 features OSPF, VRRP, PIM and PBR are included, so Ruckus lists no uplink or routing license for it. Uplinks: 4x 10GbE SFP+, 2x 1GbE RJ45 Total ports: 30 Fastest port: 10GbE PoE: Yes PoE standard: 802.3at PoE budget: 370 W Operating system: RUCKUS FastIron Rack units: 1U Airflow: Side-to-back Power input: AC Throughput: 132 Gbps switching capacity, 98 Mpps forwarding Dimensions: 43.65 x 440 x 280 mm Weight: 4.93 kg net Acoustic noise: 41.4 dBA at 25 C and minimum fan speed MTBF: 397,428 hours at 25 C Latency: 2.426 µs at 1GE and 0.961 µs at 10GE, 64 byte packets at 100% throughput
MAKER'S DOCUMENT
https://webresources.commscope.com/download/assets/Ruckus+ICX+7150+Switch+Data+Sheet/b013d23e3bd511f0a7293e67199c332c
WHAT'S INCLUDED
One (1) Brocade ICX7150-24P-4X10GR. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed ICX7150-24P-4X10GR was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
ICX7150-24P-4X10GR has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
