ICX7150-48P-4X1G

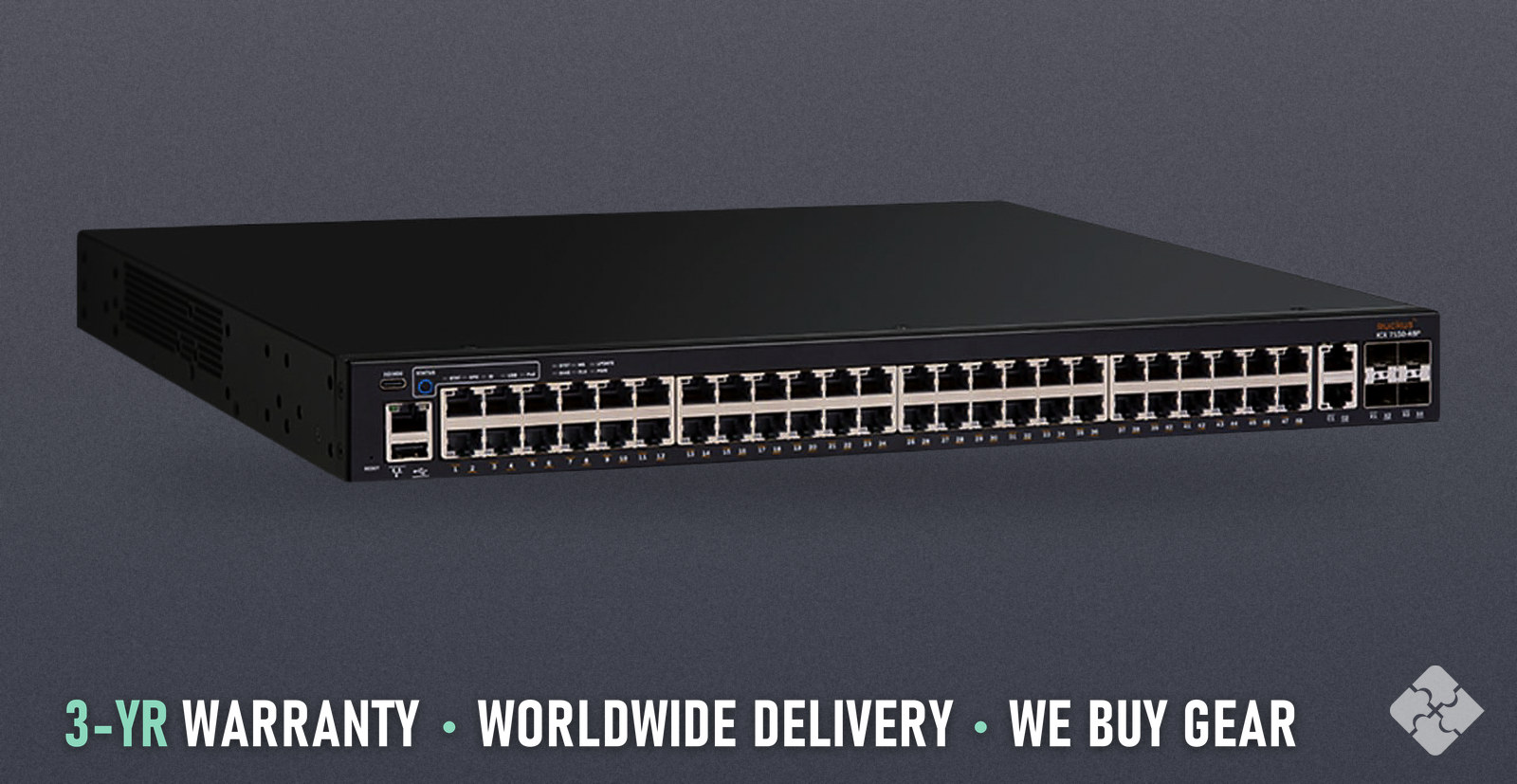

ICX7150-48P-4X1G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 1GbE RJ45
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
ICX7150-48P-4X1G, in stock, ships worldwide.
$265
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- ICX7150-48P-4X1G
- Network Ports
- 48 × 1GbE
- Connectors
- RJ45, SFP
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade ICX7150-48P-4X1G is a switch from the Brocade ICX7150 family with 48 ports of 1GbE PoE+ RJ45, 2 ports of 1GbE RJ45 and AC power. It has 54 ports in all. It runs RUCKUS FastIron. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Ruckus (Brocade) ICX7150-48P-4X1G / ICX 7150 Series Switch, 48x 10/100/1000 PoE+ Ports (370W Budget) + 2x 1GbE RJ45 + 4x 1GbE SFP Uplinks (10GbE SFP+ Upgradable via License)
HOW IT DIFFERS
ICX7150-48P-4X1G is the 48 port PoE+ model on one-gigabit uplinks: 48 PoE+ ports, 2 one-gigabit RJ45 uplinks and 4 one-gigabit SFP uplinks upgradable to up to 4 10 GbE SFP+ with a license, a 370 W PoE budget and basic Layer 3 (static routing and RIP). ICX7150-48P-4X1G draws on a 525 W supply, where Ruckus rates the 880 W supply of ICX7150-48PF-4X10GR for its 740 W PoE budget. Its sister ICX7150-48-4X1G is the same 48 port model without PoE, and the 48P and 48PF models share the same switching capacity.
TECHNICAL DETAILS
Brand: Brocade Family: ICX7150 Compatible with: Stacks with the other ICX 7150 models, up to 12 switches in a stack. Ruckus says 10 Gbps SFP+ ports are required for stacking; this model has 4×1 GbE SFP uplinks until a license upgrades them, BR-ICX-7150-41U210-P-01 to two 10 GbE SFP+ or BR-ICX-7150-41U410R-P-01 to four, the second also adding OSPF, VRRP, PIM and PBR. Uplinks: 4x 1GbE SFP, 2x 1GbE RJ45 Total ports: 54 PoE: Yes PoE standard: 802.3at PoE budget: 370 W Operating system: RUCKUS FastIron Rack units: 1U Airflow: Side-to-back Power input: AC Throughput: 180 Gbps switching capacity, 134 Mpps forwarding Dimensions: 43.65 x 440 x 370 mm Weight: 6.17 kg net Acoustic noise: 41.8 dBA at 25 C and minimum fan speed MTBF: 335,853 hours at 25 C Latency: 2.571 µs at 1GE and 0.989 µs at 10GE, 64 byte packets at 100% throughput
MAKER'S DOCUMENT
https://webresources.commscope.com/download/assets/Ruckus+ICX+7150+Switch+Data+Sheet/b013d23e3bd511f0a7293e67199c332c
WHAT'S INCLUDED
One (1) Brocade ICX7150-48P-4X1G. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed ICX7150-48P-4X1G was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
ICX7150-48P-4X1G has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
