ICX7150-C10ZP-2X10GR
ICX7150-C10ZP-2X10GR Brocade Switch, 8x 2.5GbE PoE+ RJ45, 2x 10GbE SFP+ and 2x 10GbE PoH RJ45
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
ICX7150-C10ZP-2X10GR, in stock, ships worldwide.
$2,600
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- ICX7150-C10ZP-2X10GR
- Network Ports
- 8 × 2.5GbE
- Connectors
- RJ45, SFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

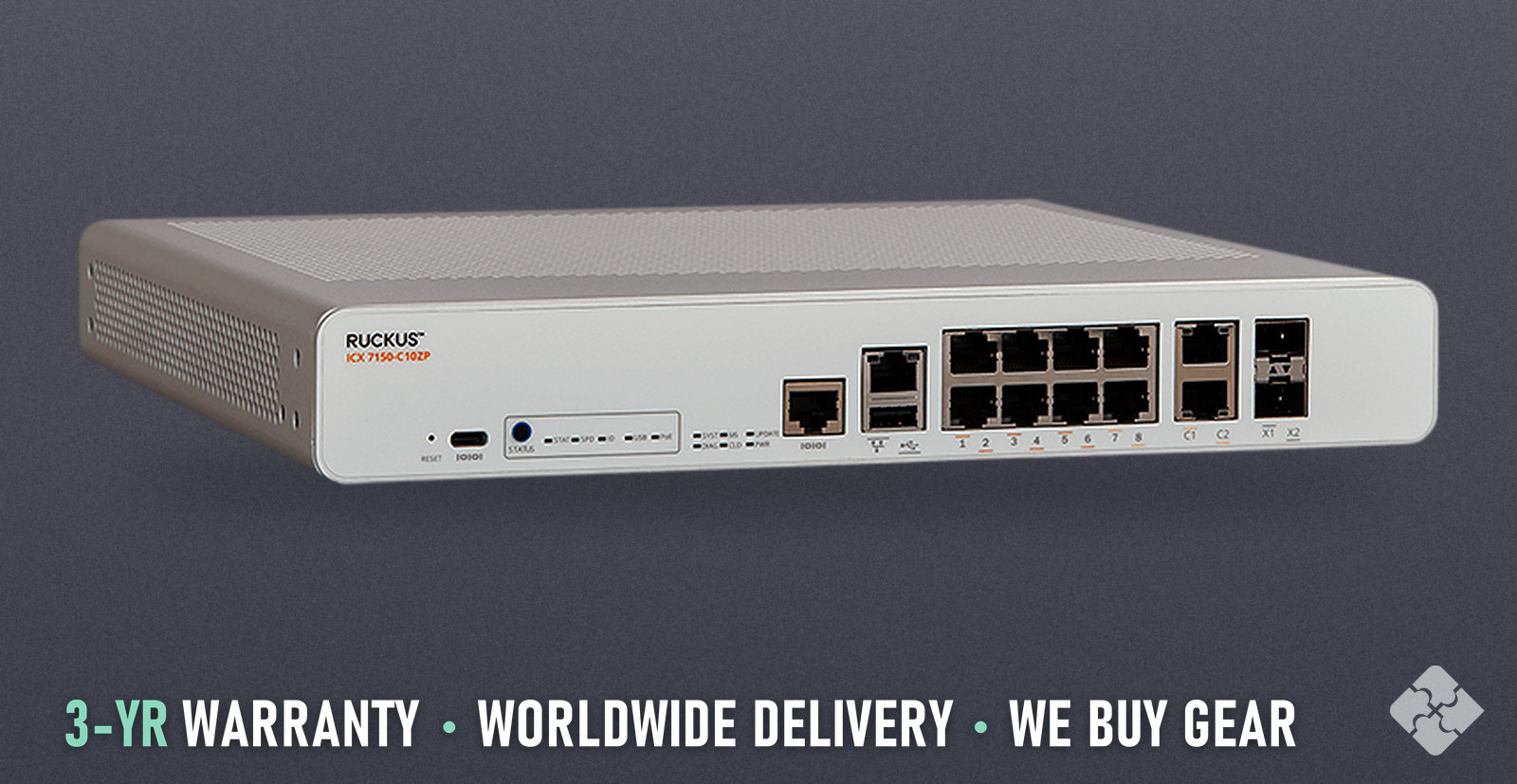

The Brocade ICX7150-C10ZP-2X10GR is a switch from the Brocade ICX7150 family with 8 ports of 2.5GbE PoE+ RJ45, 2 ports of 10GbE SFP+, 2 ports of 10GbE PoH RJ45 and AC power. It is a Layer 3 managed platform that runs RUCKUS FastIron. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Ruckus ICX7150-C10ZP-2X10GR / ICX 7150 compact stackable access switch, 10x RJ-45 ports (2x up to 10GbE multigig PoH, 2x 2.5GbE PoH, 6x 2.5GbE PoE+) plus 2x 10GbE SFP+ uplink/stacking ports. 240W PoE/PoH budget, up to ~90W on select ports. Layer 3 (OSPF/VRRP/PIM), stacks up to 12 units.
HOW IT DIFFERS
ICX7150-C10ZP-2X10GR is the multigigabit compact model: 2 ports at 100/1000/2.5/5/10G and 2 at 100/1000/2.5G, both kinds with PoH, plus 6 ports at 100/1000/2.5G with PoE+, 2 SFP+ stacking and uplink ports and a 240 W PoE budget, fanless. Ruckus lists 120 Gbps switching capacity and 3.57 kg. Its sister ICX7150-C12P-2X10GR has 12 standard 10/100/1000 PoE+ ports, a 124 W budget, 68 Gbps and 2.58 kg.
TECHNICAL DETAILS
Brand: Brocade Family: ICX7150 End of sale: discontinued January 15, 2026 Uplinks: 2x 2.5/5/10GbE RJ45, 2x 10GbE SFP+ Total ports: 12 Fastest port: 10GbE PoE: PoE+ (802.3at) PoE standard: 802.3at PoE+ on all ports; PoH (HDBaseT) up to 90 W on 4 ports, 802.3bt ready PoE budget: 240 W Layer: Layer 3 (managed) Operating system: RUCKUS FastIron Airflow: Reversible airflow option: No Power input: AC Throughput: 120 Gb/s switching capacity; stackable to 240 Gb/s aggregate across 12 units Stacking: 12 switches per stack (max); 240 Gb/s aggregate stack bandwidth (max) Replacement model: ICX8200 | RUCKUS ICX 8200 Switches
MAKER'S DOCUMENT
https://webresources.commscope.com/download/assets/Ruckus+ICX+7150+Switch+Data+Sheet/b013d23e3bd511f0a7293e67199c332c
WHAT'S INCLUDED
One (1) Brocade ICX7150-C10ZP-2X10GR. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed ICX7150-C10ZP-2X10GR was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
ICX7150-C10ZP-2X10GR has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What ports does the ICX7150-C10ZP-2X10GR have? The ICX7150-C10ZP-2X10GR has 8 × 2.5GbE, with uplinks of 2x 2.5/5/10GbE RJ45, 2x 10GbE SFP+ and 12 data ports in all. What is the throughput of the ICX7150-C10ZP-2X10GR? The ICX7150-C10ZP-2X10GR has a throughput of 120 Gb/s switching capacity; stackable to 240 Gb/s aggregate across 12 units. Which way does the air flow on the ICX7150-C10ZP-2X10GR? The airflow of the ICX7150-C10ZP-2X10GR is reversible option: No. What power does the ICX7150-C10ZP-2X10GR use? The ICX7150-C10ZP-2X10GR uses AC, a PoE budget of 240 W and 802.3at PoE+ on all ports; PoH (HDBaseT) up to 90 W on 4 ports, 802.3bt ready.
