MPC5E-100G10G

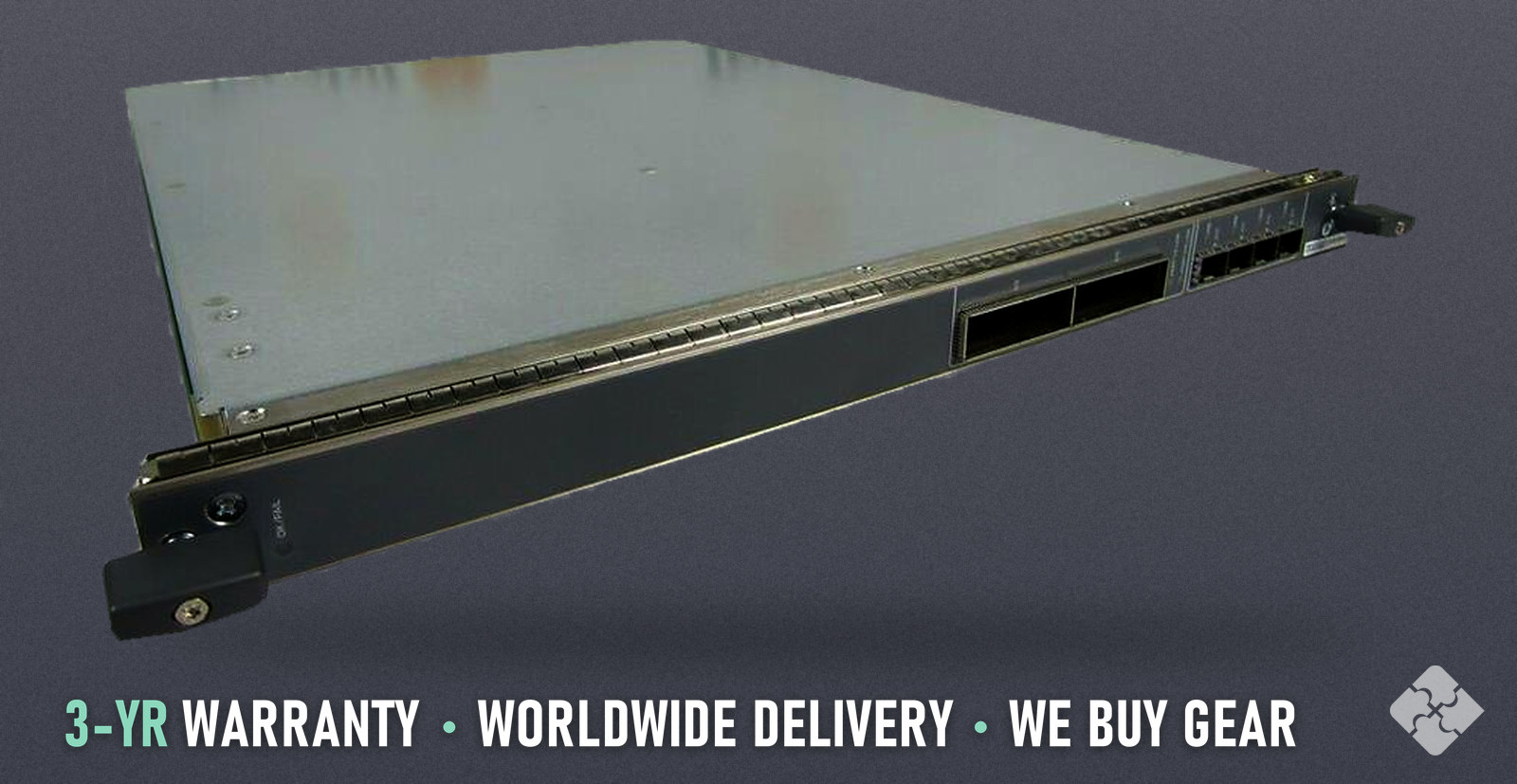

MPC5E-100G10G Juniper Line Card, Refurbished, 4x 10GbE SFP+ and 2x 100GbE CFP2
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
MPC5E-100G10G, in stock, ships worldwide.
$2,845
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- MPC5E-100G10G
- Network Ports
- 4 × 10GbE
- Connectors
- CFP2, SFP+
- Type
- Line Card
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Juniper MPC5E-100G10G is a line card with 4 ports of 10GbE SFP+ and 2 ports of 100GbE CFP2. It is a module that installs into a host chassis and does not run on its own. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. It ships as the module only.
MPC5E-100G10G MPC 2x100GE + 4x10GE MP Expansion Module for MX240
TECHNICAL DETAILS
Brand: Juniper Product line: Juniper MX Series MPC5E Uplinks: 2x 100GbE CFP2 Total ports: 6 Fastest port: 100GbE Throughput: 240 Gbps maximum Weight: 21 lb / 9.53 kg Power draw (typical): 511 W Power draw (maximum): 607 W Operating temperature: 104° F / 40° C Operating altitude: 6000 ft (1824 m) Jumbo frames: 9500 bytes (Maximum MTU Size); 9192 bytes host-bound
MAKER'S DOCUMENT
https://www.juniper.net/documentation/us/en/hardware/mx-module-reference/mx-module-reference.pdf
WHAT'S INCLUDED
One (1) Juniper MPC5E-100G10G. Ships as the module only; it installs into a host chassis, so no rack kit, power cables or console cord are included.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed MPC5E-100G10G was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
MPC5E-100G10G has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
WHAT BUYERS ASK
Which MX routers and switch control boards work with the MPC5E-100G10G? Juniper lists the MPC5E for the MX240, MX480 and MX960 with the enhanced Switch Control Board (MX-SCBE) or MX-SCBE2, and says it does not support the legacy SCB (MX-SCB). On the MX2010 and MX2020 it uses the Switch Fabric Board (SFB). On an MX960 above 40 C chassis temperature, slot 11 does not work with the MPC5E, and slot 0 does not work with the MPC4E and MPC5E. What ports and throughput does the MPC5E-100G10G have? Two 100 Gigabit Ethernet ports (1/0 and 3/0) and four 10 Gigabit Ethernet ports (0/0, 0/1, 2/0 and 2/1), with line-rate throughput of up to 240 Gbps and up to 32,000 queues per slot. Each 10 Gigabit port can run LAN-PHY mode at 10.3125 Gbps or WAN-PHY mode at 9.95328 Gbps. Which Junos release and chassis setting does the MPC5E-100G10G need? Junos OS Release 13.3R3 and later. On the MX240, MX480 and MX960 the card powers on only if the router's network services mode is enhanced-ip or enhanced-ethernet, and on the MX2010 and MX2020 only enhanced-ip is supported.
