MX204-HWBASE-AC-FS
MX204-HWBASE-AC-FS Juniper Router, New Open Box, 8x 10GbE SFP+ and 4x 40/100GbE QSFP28
New, open boxEn existencia
Condition: New Open Box
MX204-HWBASE-AC-FS, in stock, ships worldwide.
$8,495
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- MX204-HWBASE-AC-FS
- Network Ports
- 8 × 10GbE
- Connectors
- SFP+, QSFP28
- Type
- Router
- Condition
- New, open box
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

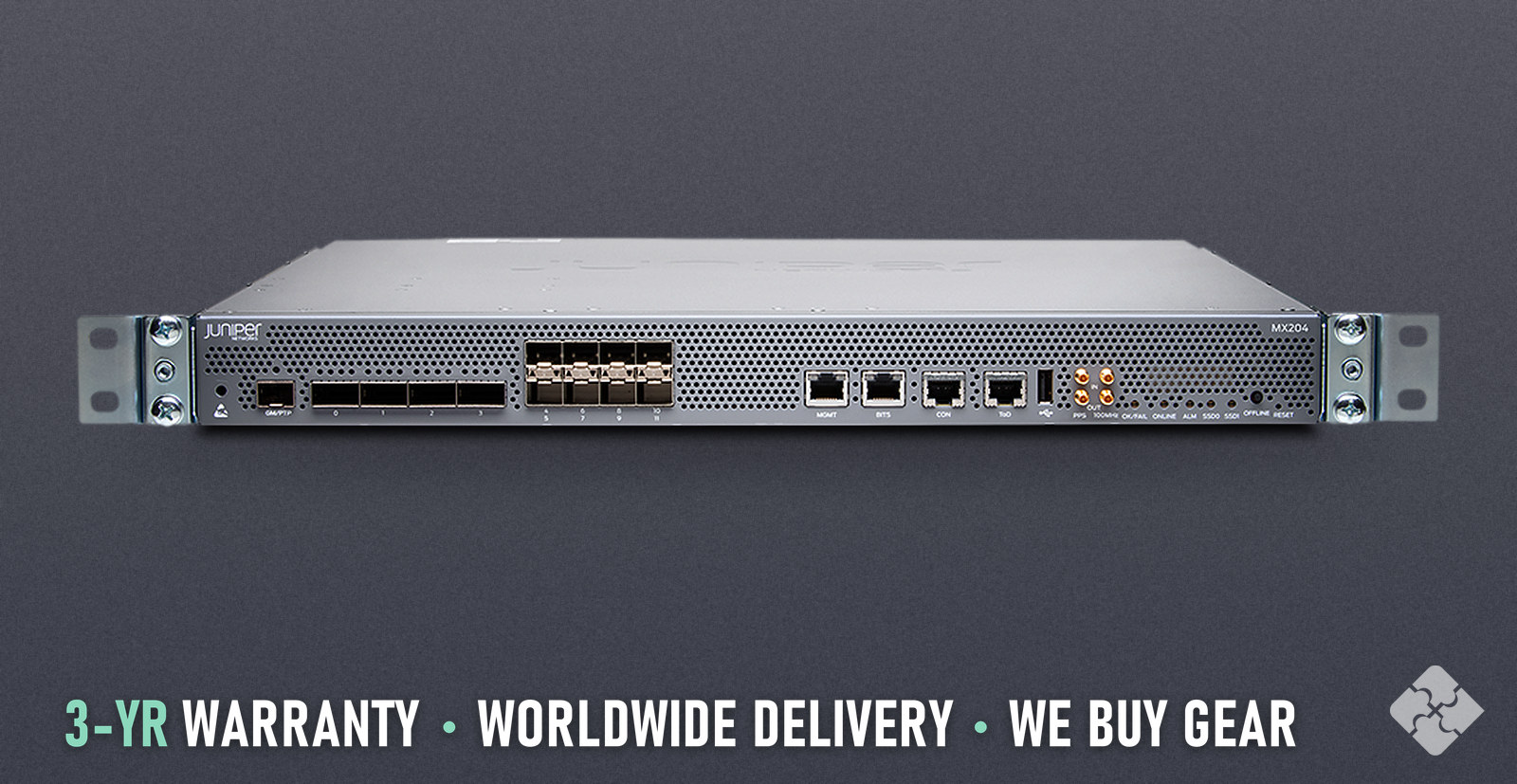

The Juniper MX204-HWBASE-AC-FS is a router from the Juniper MX204 family with 8 ports of 10GbE SFP+, 4 ports of 40/100GbE QSFP28, front-to-back airflow and AC power. It runs Junos OS, with a 1U rack-mount form factor. This unit is new, open box: unused, in its original packaging. What ships with it is listed under What's included.
HOW IT DIFFERS
MX204-HWBASE-AC-FS is the MX204 Fixed AC System in R mode: chassis with 3 fan trays and 2 power supplies, hardware and standard Junos, with the feature right to use ordered separately. Its sister MX204-HW-BASE is the integrated SKU: the same chassis, fans and power supplies with base hardware and standard Junos software, perpetual.
TECHNICAL DETAILS
Brand: Juniper Family: MX204 Maker description: MX204 chassis with 3 fan trays and 2 power supplies, R mode MX204 Fixed AC System - HW and standard Junos; feature right to use must be ordered separately End of sale: June 15, 2027 Uplinks: 4x 40/100GbE QSFP28 Total ports: 12 Fastest port: 100GbE Operating system: Junos OS Form factor: 1U rack-mount Rack units: 1U Airflow: Front-to-back (AFO) Power input: AC Throughput: 400 Gbps Dimensions: 1.72 x 19 x 18.5 in (4.37 x 48.26 x 47.0 cm) Weight: 22.7 lb (10.3 kg) fully loaded Fans: 3 fan modules (JNP-FAN-1RU) Power supplies: 2 (JPSU-650W-AC-AO AC or JPSU-650W-DC-AFO DC, 650 W) Input voltage: 100 to 240 VAC, or -40 to -72 VDC Power draw (typical): 240 W fully loaded at 25°C Power draw (maximum): 280 W fully loaded at 55°C Heat output: 1705 BTU/hour (500 W) maximum Operating temperature: 32 to 104°F (0 to 40°C); short term 23 to 131°F (-5 to 55°C) Operating humidity: 5% to 90%, noncondensing Operating altitude: Up to 10,000 ft (3048 m) with no performance degradation CPU: Built-in Routing Engine (RE-S-1600x8); datasheet: 8 cores, 32GB DDR4, 2 x 100 GB SSD End of support: June 30, 2032
MAKER'S DOCUMENT
https://www.juniper.net/us/en/products/routers/mx-series/mx-204-240-480-960-series-universal-routing-platforms-datasheet.html
WHAT'S INCLUDED
One (1) Juniper MX204-HWBASE-AC-FS router, 3x fan tray and 2x power supply.
CONDITION
Condition: New Open Box A new, unused unit in its original packaging. Cosmetic handling marks on the outer box are possible for warehouse stock.
WARRANTY & RETURNS
MX204-HWBASE-AC-FS has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
When is the end of sale for the MX204-HWBASE-AC-FS? Juniper's end of sale date for the MX204-HWBASE-AC-FS is June 15, 2027, and its end of support date is June 30, 2032. What ports does the MX204-HWBASE-AC-FS have? The MX204-HWBASE-AC-FS has 8 × 10GbE, with uplinks of 4x 40/100GbE QSFP28 and 12 data ports in all. How much power does the MX204-HWBASE-AC-FS draw? The typical power draw of the MX204-HWBASE-AC-FS is 240 W fully loaded at 25°C, and its maximum is 280 W fully loaded at 55°C. What are the size and weight of the MX204-HWBASE-AC-FS? The MX204-HWBASE-AC-FS measures 1.72 x 19 x 18.5 in (4.37 x 48.26 x 47.0 cm) and weighs 22.7 lb (10.3 kg) fully loaded. What is the throughput of the MX204-HWBASE-AC-FS? The MX204-HWBASE-AC-FS has a throughput of 400 Gbps. Which way does the air flow on the MX204-HWBASE-AC-FS? The airflow of the MX204-HWBASE-AC-FS is front-to-back (AFO).
WHAT BUYERS ASK
Can I get a price and the quantity available for the MX204-HWBASE-AC-FS? Yes. Use Request a quote on this page with the part number MX204-HWBASE-AC-FS and the quantity you need. A firm price and the quantity available come back, typically the same business day. Does the MX204-HWBASE-AC-FS ship to my address? Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise. What condition is the MX204-HWBASE-AC-FS in? The MX204-HWBASE-AC-FS on this page is New Open Box. An open box unit is new.
