QFX5100-96S-DC-AFI
QFX5100-96S-DC-AFI Juniper Switch, Back-to-Front, Used, 96x 1/10GbE SFP+ and 8x 40GbE QSFP+
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
QFX5100-96S-DC-AFI, in stock, ships worldwide.
$2,260
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- QFX5100-96S-DC-AFI
- Network Ports
- 96 × 1/10GbE
- Connectors
- SFP+, QSFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

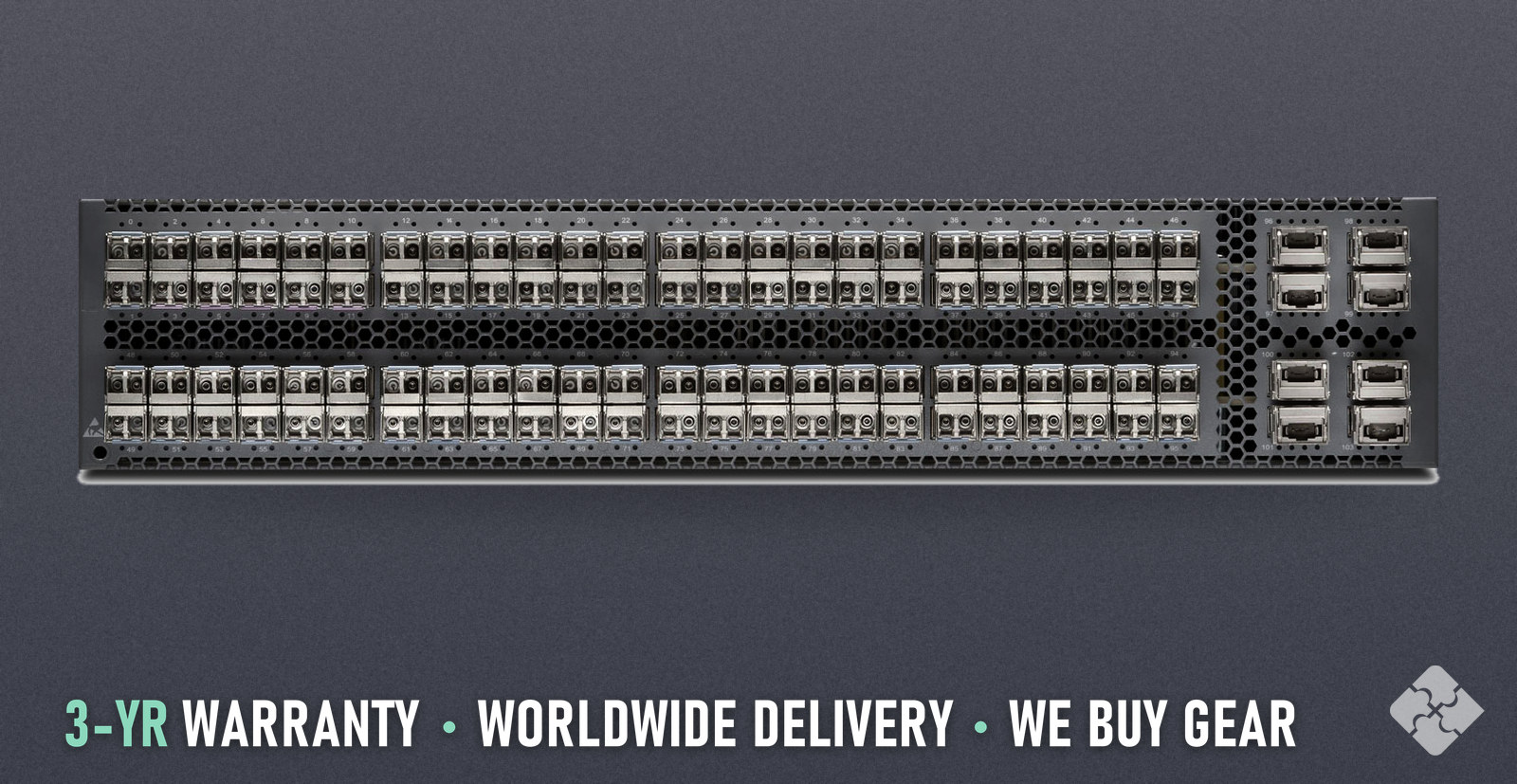

The Juniper QFX5100-96S-DC-AFI is a switch from the Juniper QFX5100 family with 96 ports of 1/10GbE SFP+, 8 ports of 40GbE QSFP+, back-to-front airflow and DC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cables to match.
Juniper QFX5100-96S-DC-AFI / QFX5100 switch, 96x SFP+/SFP ports (1/10GbE), 8x QSFP+ ports (40GbE, breakout-capable to 4x10GbE each), up to 104x 10GbE with breakout, 2.56 Tbps throughput, dual redundant 850W DC power supplies, back-to-front airflow, 2RU
HOW IT DIFFERS
QFX5100-96S-DC-AFI is the DC-powered, back-to-front version of the 96-port QFX5100: 96 SFP/SFP+ ports and 8 QSFP+ ports with redundant fans and redundant DC power supplies. Juniper lists its DC power supply as the JPSU-850W-DC-AFI, an 850 W unit for the QFX5100-96S. Its sister QFX5100-96S-AFI has the same ports and airflow on redundant AC power supplies. The 96S chassis weighs 32.5 lb, against 21.8 lb for the 48S.
TECHNICAL DETAILS
Brand: Juniper Family: QFX5100 Uplinks: 8x 40GbE QSFP+ Total ports: 104 Fastest port: 40GbE Management ports: 2: 1 RJ-45 and 1 SFP Layer: Layer 3 (managed) Operating system: Junos OS Rack units: 2 U Airflow: Back-to-front (AFI) Power input: DC Throughput: 2.56 Tbps, 1.44 Bpps Dimensions: 3.46 x 17.36 x 22.44 in (8.8 x 44.09 x 57 cm) Weight: 32.5 lb (14.74 kg) Mounting: four post mounting for 19-in server rack or datacom rack Fans: Redundant and hot-pluggable fan modules Power supplies: Dual redundant and hot-pluggable Input voltage: -36 to -72 V DC power Operating temperature: 32° to 104° F (0° to 40° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 5% to 90% (noncondensing) Operating altitude: up to 2,000 (610 m) CPU: 1.5 GHz dual-core Intel CPU Memory (DRAM): 8 GB Flash storage: 32 GB SSD storage MAC addresses: 288,000 IPv4 routes: 128,000 prefixes; 208,000 host routes IPv6 routes: 64,000 prefixes VLANs: 4,096 VLAN IDs Jumbo frames: 9,216 bytes Packet buffer: 12 MB shared Latency: as low as 550 ns Stacking: Virtual Chassis, up to 10 interconnected switches Certifications: FCC 47CFR Part 15 Class A (2009); EN 55022 Class A (2006); UL 60950-1 (2nd Ed.)
MAKER'S DOCUMENT
https://www.juniper.net/content/dam/www/assets/datasheets/us/en/switches/qfx5100-ethernet-switch-datasheet.pdf
WHAT'S INCLUDED
One (1) Juniper QFX5100-96S-DC-AFI. Includes a rack-mount kit and the power cables to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed QFX5100-96S-DC-AFI was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
QFX5100-96S-DC-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What ports does the QFX5100-96S-DC-AFI have? The QFX5100-96S-DC-AFI has 96 × 1/10GbE, with uplinks of 8x 40GbE QSFP+ and 104 data ports in all. What is the throughput of the QFX5100-96S-DC-AFI? The QFX5100-96S-DC-AFI has a throughput of 2.56 Tbps, 1.44 Bpps. Which way does the air flow on the QFX5100-96S-DC-AFI? The airflow of the QFX5100-96S-DC-AFI is back-to-front (AFI). What power does the QFX5100-96S-DC-AFI use? The QFX5100-96S-DC-AFI uses DC. What are the size and weight of the QFX5100-96S-DC-AFI? The QFX5100-96S-DC-AFI measures 3.46 x 17.36 x 22.44 in (8.8 x 44.09 x 57 cm) and weighs 32.5 lb (14.74 kg). How much rack space does the QFX5100-96S-DC-AFI take? The QFX5100-96S-DC-AFI takes 2 U of rack space.
