QFX5120-48Y-AFI2

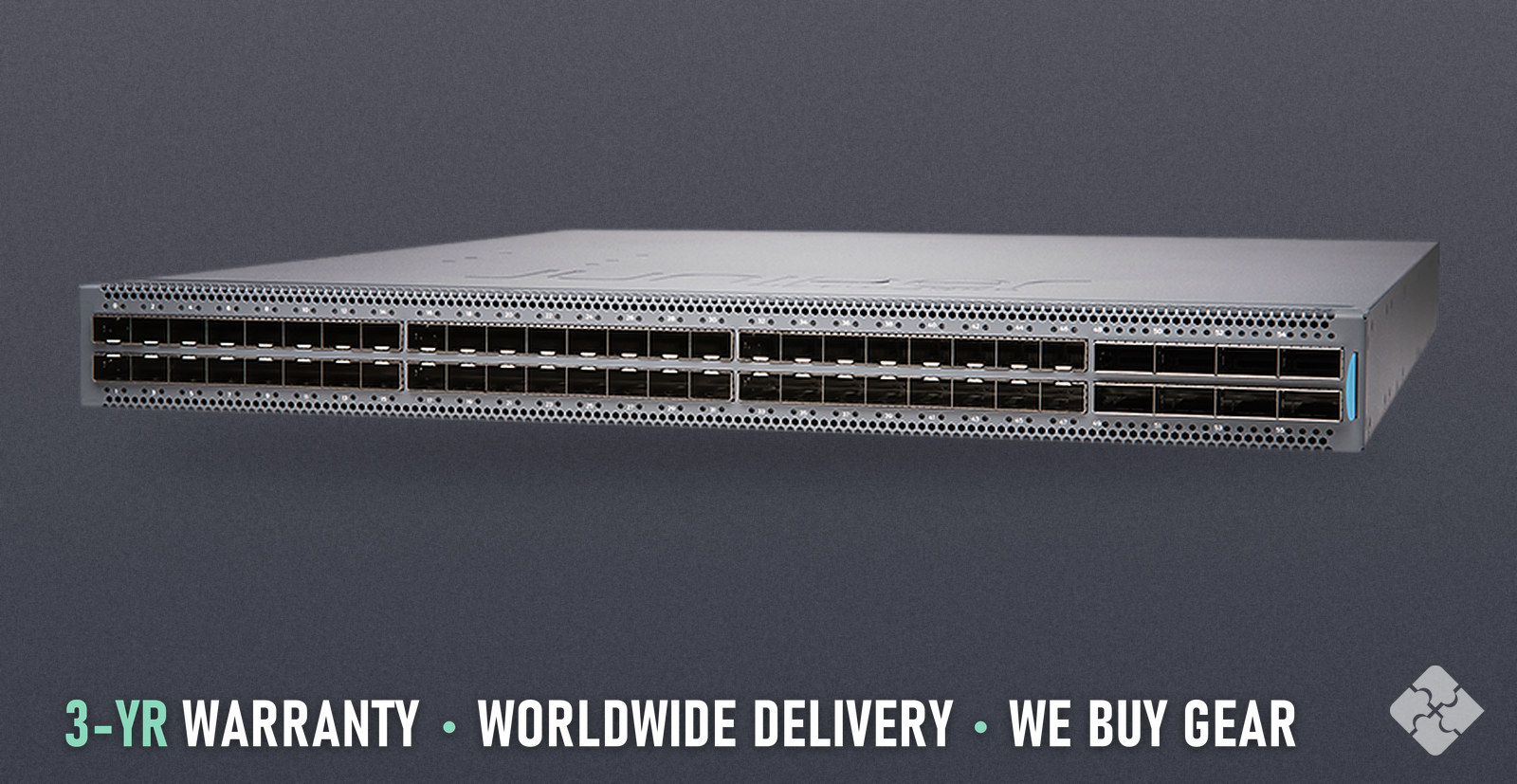

QFX5120-48Y-AFI2 Juniper Switch, Back-to-Front, Used, 48x 25GbE SFP28 and 8x 100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
QFX5120-48Y-AFI2, in stock, ships worldwide.
$9,895
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- QFX5120-48Y-AFI2
- Network Ports
- 48 × 25GbE
- Connectors
- SFP28, QSFP28, RJ45
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Juniper QFX5120-48Y-AFI2 is a switch from the Juniper QFX5120 family with 48 ports of 25GbE SFP28, 8 ports of 100GbE QSFP28, back-to-front airflow and AC power. A separate 2x 1GbE RJ45 port is for management. It is a Layer 3 managed platform that runs Junos OS, with a 1U rack-mount form factor. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper QFX5120-48Y-AFI2 / 48x25GbE SFP28 + 8x100GbE QSFP28 (2x RJ-45 mgmt), 1U, 4Tbps bidirectional switching, AFI2 = PSU-side intake / port-side exhaust airflow
HOW IT DIFFERS
QFX5120-48Y-AFI2 is the QFX5120 with 48 25GbE/10GbE/1GbE SFP28 ports and 8 100GbE/40GbE QSFP28 ports, rated at 4 Tbps aggregate throughput. The AFI2 has back-to-front airflow: two 650 W AC power supplies with a Juniper Azure Blue ejector lever and five fan modules labeled AIR IN with a blue handle. Its sister QFX5120-48Y-AFO2 has the same ports and moves air front-to-back, with a Juniper Gold lever and AIR OUT fans.
TECHNICAL DETAILS
Brand: Juniper Family: QFX5120 Uplinks: 8x 100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Management ports: 2 x RJ-45 Layer: Layer 3 (managed) Operating system: Junos OS Form factor: 1U rack-mount Rack units: 1 U Airflow: Back-to-front (AFI) Power input: AC Throughput: 4 Tbps bidirectional (2 Tbps unidirectional), 2 Bpps forwarding Dimensions: 1.72 in / 4.3688 cm x 17.36 in / 44.0944 cm x 20.48 in / 52.0192 cm Weight: 23.7 lb / 10.75 kg (fully loaded) Fans: Five fan modules with back-to-front airflow (label AIR IN) Power supplies: Two 650-W AC power supplies with back-to-front airflow Power draw (typical): 185 W (AC Average Power Consumption) Power draw (maximum): 283 W (AC Max Power Consumption) Operating temperature: 32° through 104° F / 0° through 40° C Storage temperature: -40° through 158° F / -40° through 70° C Operating humidity: 5% through 90% (noncondensing) Operating altitude: 6000 ft / 1828 m CPU: 2.2-GHz quad-core Intel CPU Memory (DRAM): 16-GB memory Flash storage: 50-GB SSD storage MAC addresses: 288 (thousands) per system IPv4 routes: Unicast prefixes RIB 2000, FIB 351; host 211 (thousands) IPv6 routes: Unicast prefixes RIB 500, FIB 172; host 106 (thousands) VLANs: 4094 (VLAN IDs Count) Jumbo frames: 9216 bytes Stacking: Virtual Chassis: up to two QFX5120-48Y Console port: RJ-45 console port
MAKER'S DOCUMENT
https://apps.juniper.net/hct/product/QFX5120-48Y/hwspecs
WHAT'S INCLUDED
One (1) Juniper QFX5120-48Y-AFI2. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed QFX5120-48Y-AFI2 was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
QFX5120-48Y-AFI2 has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
Which way does the air flow on the QFX5120-48Y-AFI2? The airflow of the QFX5120-48Y-AFI2 is back-to-front (AFI). What ports does the QFX5120-48Y-AFI2 have? The QFX5120-48Y-AFI2 has 48 × 25GbE, with uplinks of 8x 100GbE QSFP28 and 56 data ports in all. What is the throughput of the QFX5120-48Y-AFI2? The QFX5120-48Y-AFI2 has a throughput of 4 Tbps bidirectional (2 Tbps unidirectional), 2 Bpps forwarding. What power does the QFX5120-48Y-AFI2 use? The QFX5120-48Y-AFI2 uses AC. How much power does the QFX5120-48Y-AFI2 draw? The typical power draw of the QFX5120-48Y-AFI2 is 185 W (AC Average Power Consumption), and its maximum is 283 W (AC Max Power Consumption). What are the size and weight of the QFX5120-48Y-AFI2? The QFX5120-48Y-AFI2 measures 1.72 in / 4.3688 cm x 17.36 in / 44.0944 cm x 20.48 in / 52.0192 cm and weighs 23.7 lb / 10.75 kg (fully loaded).
WHAT BUYERS ASK
Can I get a price and the quantity available for the QFX5120-48Y-AFI2? Yes. Use Request a quote on this page with the part number QFX5120-48Y-AFI2 and the quantity you need. A firm price and the quantity available come back, typically the same business day. Does the QFX5120-48Y-AFI2 ship to my address? Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise. What condition is the QFX5120-48Y-AFI2 in? The QFX5120-48Y-AFI2 on this page is Used, Tested & Guaranteed.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
