QFX5120-48Y-DC-AFI

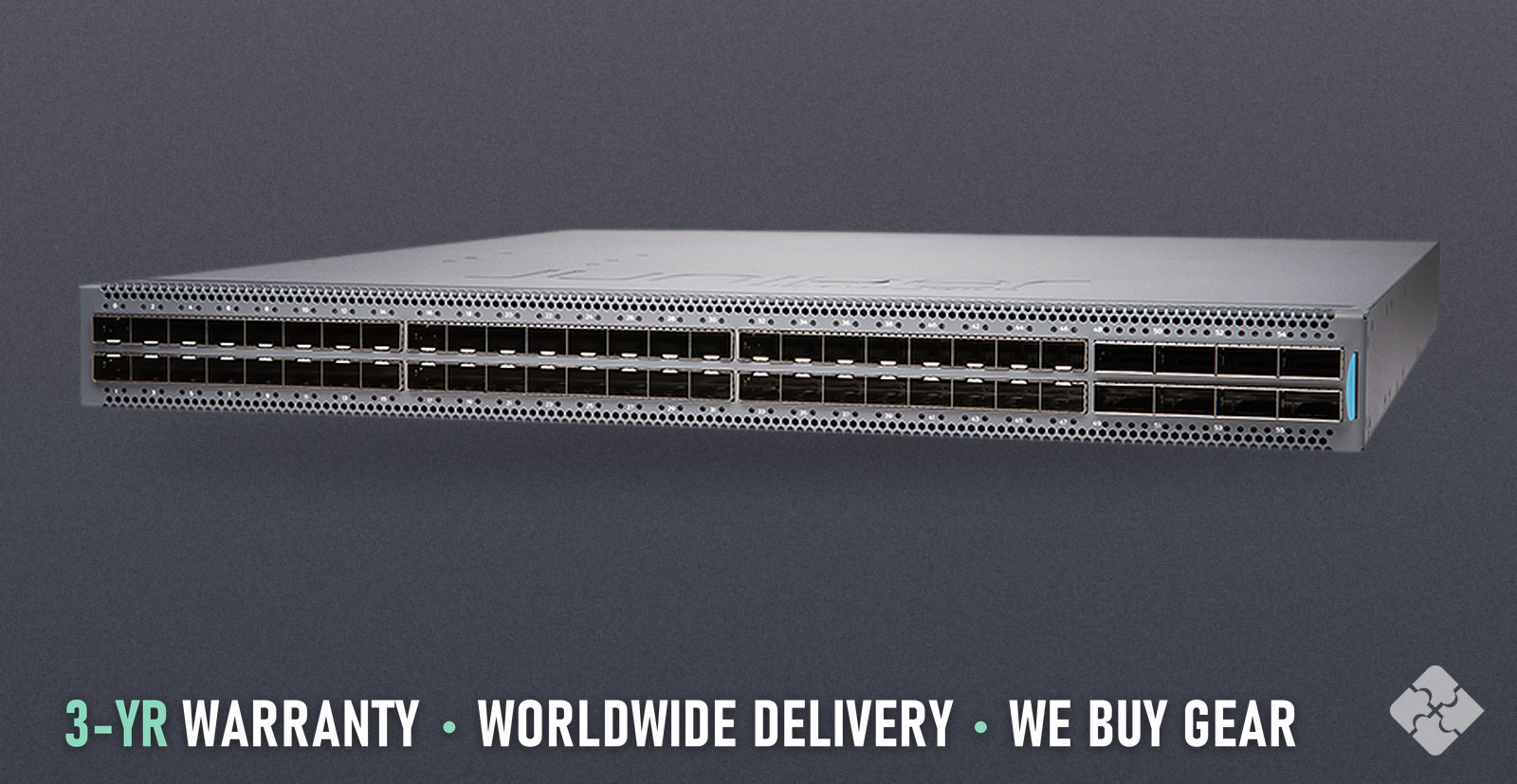

QFX5120-48Y-DC-AFI Juniper Switch, Back-to-Front, Used, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
QFX5120-48Y-DC-AFI, in stock, ships worldwide.
$9,895
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- QFX5120-48Y-DC-AFI
- Network Ports
- 48 × 1/10/25GbE
- Connectors
- SFP28, QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Juniper QFX5120-48Y-DC-AFI is a switch from the Juniper QFX5120 family with 48 ports of 1/10/25GbE SFP28, 8 ports of 100GbE QSFP28, back-to-front airflow and DC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper QFX5120-48Y-DC-AFI / QFX5120-48Y switch, 48x 25GbE SFP28 plus 8x 100GbE QSFP28, back-to-front airflow (AFI), DC power
HOW IT DIFFERS
QFX5120-48Y-DC-AFI is the DC powered, back-to-front QFX5120-48Y: Juniper's ordering table lists it as 48x25GbE plus 8x100GbE, 1 U, DC airflow in, with the JPSU-650W-DC-AFI supply. Its AC sister QFX5120-48Y-AFI has the same airflow with JPSU-650W-AC-AI supplies, while QFX5120-48Y-AFO is the AC version with front-to-back airflow and JPSU-650W-AC-AO supplies. The data sheet gives the 48Y 283 W maximum and 155 W typical draw.
TECHNICAL DETAILS
Brand: Juniper Family: QFX5120 Compatible with: JPSU-650W-DC-AFI power supplies and the QFX5110-FANAFI back-to-front fan module, per Juniper's ordering table. The AC supplies JPSU-650W-AC-AI and JPSU-650W-AC-AO are for the AC models of the 48Y. Uplinks: 8x 40/100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Layer: Layer 3 (managed) Operating system: Junos OS Rack units: 1U Airflow: Back-to-front (AFI) Power input: DC Throughput: 4 Tbps bidirectional (2 Tbps unidirectional), 2 Bpps Fans: five fan modules (4+1 redundancy) Power supplies: two DC power supplies, each with a label AIR IN
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/qfx-series/qfx5120-ethernet-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper QFX5120-48Y-DC-AFI. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed QFX5120-48Y-DC-AFI was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
QFX5120-48Y-DC-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
Which way does the air flow on the QFX5120-48Y-DC-AFI? The airflow of the QFX5120-48Y-DC-AFI is back-to-front (AFI). What ports does the QFX5120-48Y-DC-AFI have? The QFX5120-48Y-DC-AFI has 48 × 1/10/25GbE, with uplinks of 8x 40/100GbE QSFP28 and 56 data ports in all. What is the throughput of the QFX5120-48Y-DC-AFI? The QFX5120-48Y-DC-AFI has a throughput of 4 Tbps bidirectional (2 Tbps unidirectional), 2 Bpps. What power does the QFX5120-48Y-DC-AFI use? The QFX5120-48Y-DC-AFI uses DC. How much rack space does the QFX5120-48Y-DC-AFI take? The QFX5120-48Y-DC-AFI takes 1U of rack space. What software does the QFX5120-48Y-DC-AFI run? The QFX5120-48Y-DC-AFI runs Junos OS.
