QFX5200-32C-DC-AFI

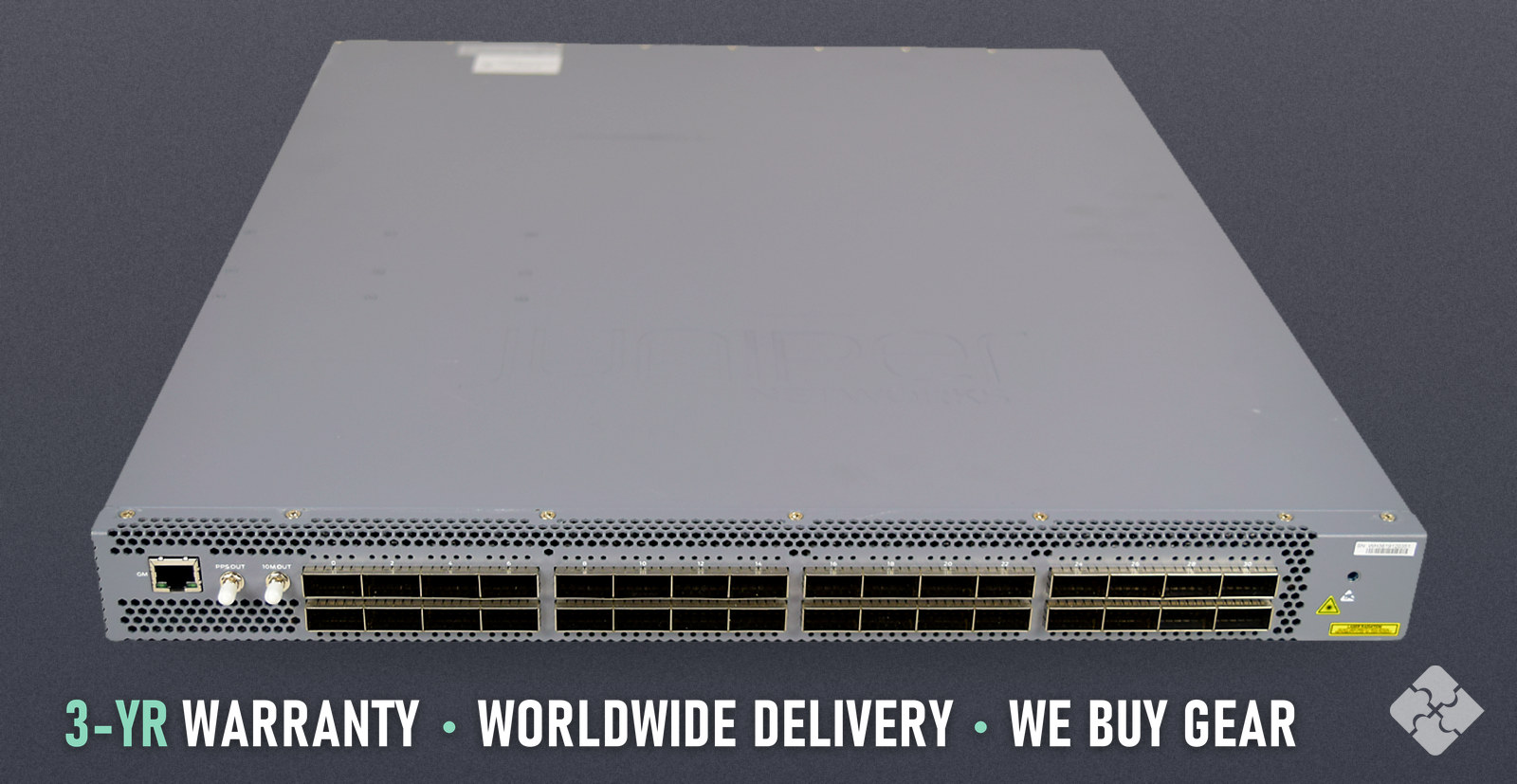

QFX5200-32C-DC-AFI Juniper Switch, Back-to-Front, Used, 32x 100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
QFX5200-32C-DC-AFI, in stock, ships worldwide.
$1,800
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- QFX5200-32C-DC-AFI
- Network Ports
- 32 × 100GbE
- Connectors
- QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Juniper QFX5200-32C-DC-AFI is a switch from the Juniper QFX5200 family with 32 ports of 100GbE QSFP28, back-to-front airflow and DC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
QFX5200-32C-DC-AFI 32x 100GB QSFP28 Back-to-Front Airflow (DC) Switch
HOW IT DIFFERS
QFX5200-32C-DC-AFI is the DC powered, back-to-front airflow QFX5200-32C. Its power supplies are JPSU-850W-DC-AFI, the DC AFI 850W PSU, on a DC input of -48 VDC to -60 VDC rated and -40 VDC through -72 VDC operating, with 10 A maximum input current, and its fan modules are QFX5200-32C-FANAFI with the AIR IN label. Its sister QFX5200-32C-DC-AFO is the same DC switch with front-to-back airflow, and QFX5200-32C-AFI is the AC version of this airflow on JPSU-850W-AC-AFI.
TECHNICAL DETAILS
Brand: Juniper Family: QFX5200 Compatible with: Air In, DC parts: JPSU-850W-DC-AFI power supplies and QFX5200-32C-FANAFI fan modules. In a data center Juniper places the switch with the AIR IN labels on its components next to the cold aisle. Do not fit an AC supply or an AIR OUT part in this chassis. Management ports: 2 SFP and 1 RJ-45 10/100/1000 BASE-T for management (only two ports can be used) Layer: Layer 3 (managed) Operating system: Junos OS Rack units: 1 U Airflow: Back-to-front (AFI) Power input: DC Dimensions: 17.36 x 1.72 x 20.48 in. (44.09 x 4.37 x 52.02 cm), W x H x D Weight: 23.8 lb (10.8 Kg) Fans: Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw Power supplies: Redundant (1+1) hot-pluggable 850 W AC/DC power supplies Input voltage: -36 to -72 V DC power Operating temperature: 32° to 104° F (0° to 40° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 5 to 90% (noncondensing) Operating altitude: Up to 10000 ft. (3048 m) CPU: Intel Quad Core Ivy Bridge 1.8 GHz CPU Memory (DRAM): 16 GB SDRAM Flash storage: 64 GB SSD Switching capacity: Up to 6.4 Tbps (bi-directional) Forwarding rate: Up to 3.2 Bpps MAC addresses: 136,000 IPv4 routes: 128,000 prefixes; 104,000 host routes (unicast) IPv6 routes: 98,000 prefixes; 52,000 host routes (unicast) VLANs: 4096 VLAN IDs Jumbo frames: 9216 bytes Packet buffer: 16 MB Console port: 1 RS-232 console port USB port: 1 USB 2.0 port
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/qfx-series/qfx5200-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper QFX5200-32C-DC-AFI. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed QFX5200-32C-DC-AFI was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
QFX5200-32C-DC-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
