QFX5200-32C-DC-AFO
QFX5200-32C-DC-AFO Juniper Switch, Front-to-Back, Used, 32x 100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
QFX5200-32C-DC-AFO, in stock, ships worldwide.
$1,800
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- QFX5200-32C-DC-AFO
- Network Ports
- 32 × 100GbE
- Connectors
- QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

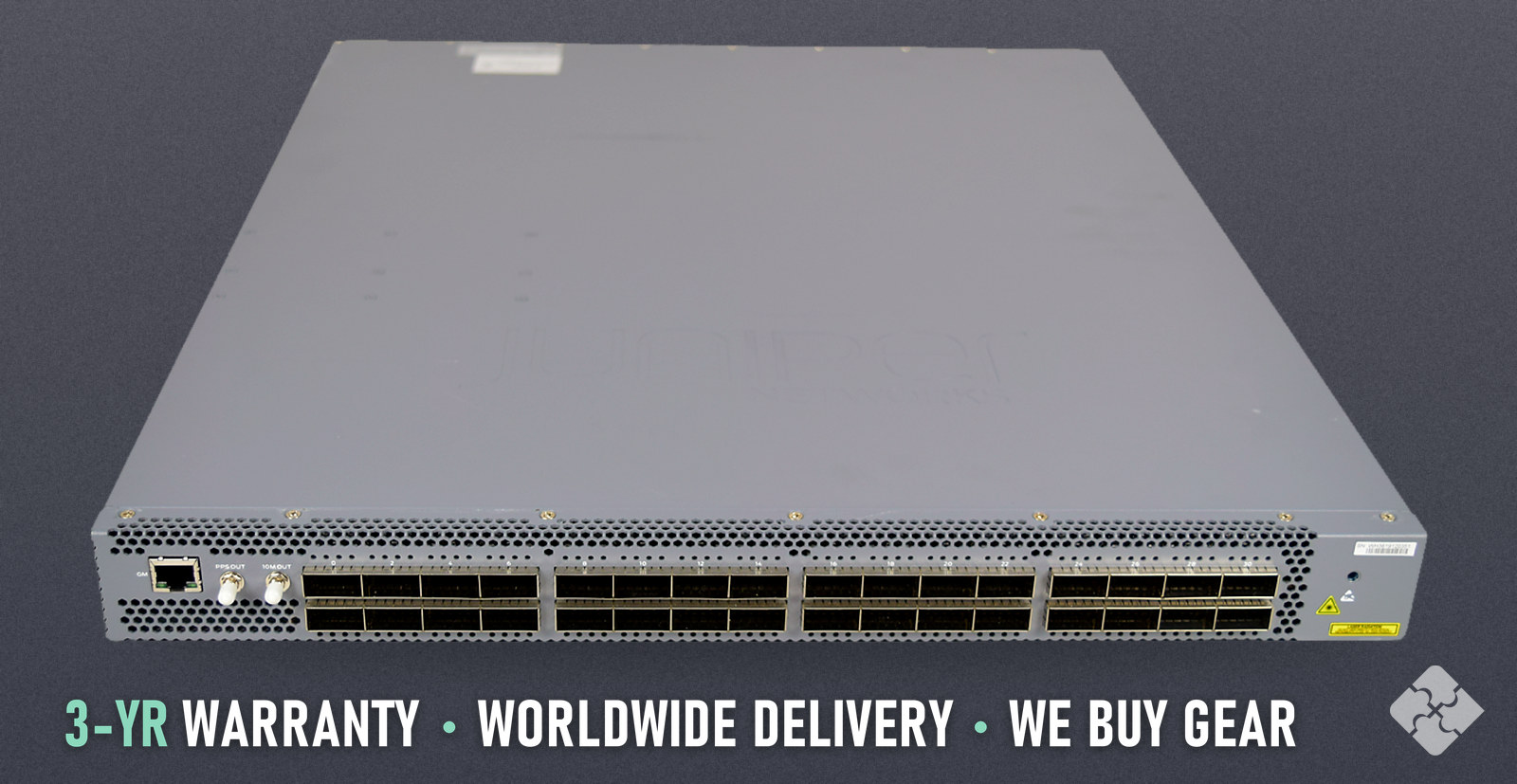

The Juniper QFX5200-32C-DC-AFO is a switch from the Juniper QFX5200 family with 32 ports of 100GbE QSFP28, front-to-back airflow and DC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
QFX5200-32C-DC-AFO 32x 100G QSFP28 Front-to-Back Airflow (DC) Switch
HOW IT DIFFERS
QFX5200-32C-DC-AFO is the DC powered, front-to-back airflow QFX5200-32C: air comes in through the port end and leaves at the fan end. Juniper lists its power supplies as JPSU-850W-DC-AFO, the DC AFO 850W PSU, and its fan modules as QFX5200-32C-FANAFO, labeled AIR OUT in Juniper Gold. It takes the same -40 VDC through -72 VDC DC input as QFX5200-32C-DC-AFI, its Air In sister, and the hardware guide gives the QFX5200-32C 200 W of typical and 312 W of maximum power consumption.
TECHNICAL DETAILS
Brand: Juniper Family: QFX5200 Compatible with: Air Out, DC parts: JPSU-850W-DC-AFO power supplies and QFX5200-32C-FANAFO fan modules. Juniper places a switch with AIR OUT labels on its components next to the hot aisle. Airflow in and airflow out parts cannot share a chassis, and converting to AIR IN means replacing all of the fans and power supplies at one time. Management ports: 2 SFP and 1 RJ-45 10/100/1000 BASE-T for management (only two ports can be used) Layer: Layer 3 (managed) Operating system: Junos OS Rack units: 1 U Airflow: Front-to-back (AFO) Power input: DC Dimensions: 17.36 x 1.72 x 20.48 in. (44.09 x 4.37 x 52.02 cm), W x H x D Weight: 23.8 lb (10.8 Kg) Fans: Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw Power supplies: Redundant (1+1) hot-pluggable 850 W AC/DC power supplies Input voltage: -36 to -72 V DC power Operating temperature: 32° to 104° F (0° to 40° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 5 to 90% (noncondensing) Operating altitude: Up to 10000 ft. (3048 m) CPU: Intel Quad Core Ivy Bridge 1.8 GHz CPU Memory (DRAM): 16 GB SDRAM Flash storage: 64 GB SSD Switching capacity: Up to 6.4 Tbps (bi-directional) Forwarding rate: Up to 3.2 Bpps MAC addresses: 136,000 IPv4 routes: 128,000 prefixes; 104,000 host routes (unicast) IPv6 routes: 98,000 prefixes; 52,000 host routes (unicast) VLANs: 4096 VLAN IDs Jumbo frames: 9216 bytes Packet buffer: 16 MB Console port: 1 RS-232 console port USB port: 1 USB 2.0 port
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/qfx-series/qfx5200-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper QFX5200-32C-DC-AFO. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed QFX5200-32C-DC-AFO was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
QFX5200-32C-DC-AFO has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
