What ports does the DCS-7010TX-48C-F have?

It has 48 × 1GbE; uplinks: 4x 25GbE SFP28. 52 data ports in all. Connectors: SFP28.

DCS-7010TX-48C-F

DCS-7010TX-48C-F Arista switch, 48x 1GbE and 4x 1/10/25GbE SFP28

Name: DCS-7010TX-48C-F Arista switch, 48x 1GbE and 4x 1/10/25GbE SFP28
Brand: Arista
SKU: DCS-7010TX-48C-F
Price: 4350.00 USD
Availability: InStock

New, open boxIn stock

Condition: New Open Box

DCS-7010TX-48C-F, in stock, ships worldwide.

$4,350

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: DCS-7010TX-48C-F
Network Ports: 48 × 1GbE
Connectors: SFP28
Type: Switch
Condition: New, open box

Warranty terms·Testing process

Questions and answers

What ports does the DCS-7010TX-48C-F have?: It has 48 × 1GbE; uplinks: 4x 25GbE SFP28. 52 data ports in all. Connectors: SFP28.
What is the throughput of the DCS-7010TX-48C-F?: Throughput is 296 Gbps.
Which way does the air flow on the DCS-7010TX-48C-F?: Airflow is front-to-back.
What power does the DCS-7010TX-48C-F use?: It uses 2x AC (1+1 redundant).
How much power does the DCS-7010TX-48C-F draw?: Power draw: typical 83W (typical, measured at 25C ambient with 50% load); maximum 95W.
What are the size and weight of the DCS-7010TX-48C-F?: Dimensions: 17.3 x 1.71 x 10.8” (43.9 x 4.35 x 27.6cm), W x H x D incl. fans. Weight: 8.6 lbs (3.9kg).

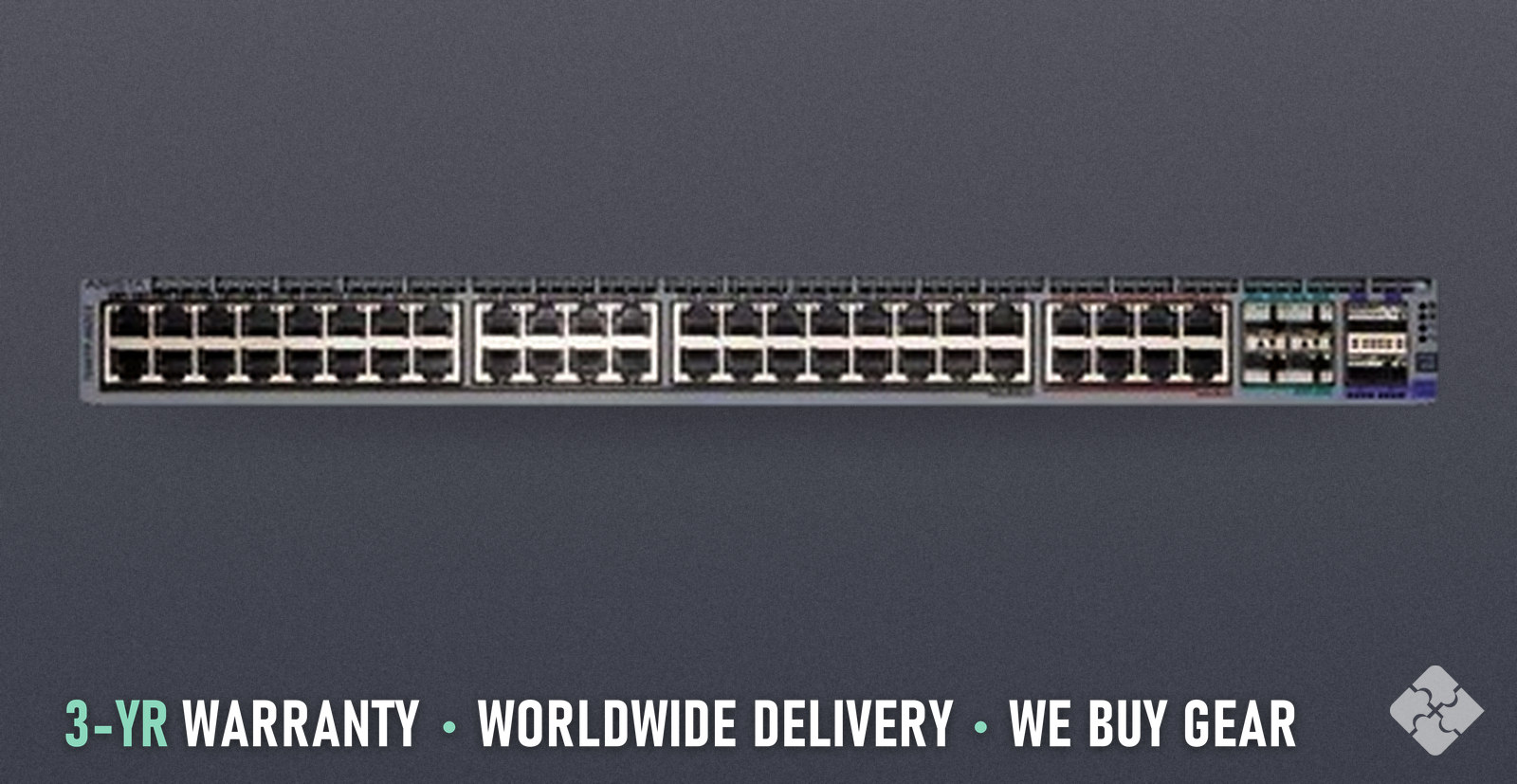

The Arista DCS-7010TX-48C-F is a switch with 48 ports of 1GbE and 4 ports of 1/10/25GbE SFP28. It runs Arista EOS, with front-to-back airflow. This unit is new, open box: unused, in its original packaging. One switch per order, with a rack-mount kit and the power cables to match.

Arista DCS-7010TX-48C-F / 7010TX Series Switch, 48x 10/100/1000 RJ45 + 4x 1/10/25GbE SFP, Front-to-Rear Airflow, Dual AC PSU

TECHNICAL DETAILS

Brand: Arista Product line: Arista 7010X Series Uplinks: 4x 25GbE SFP28 Total ports: 52 Fastest port: 25GbE Management ports: 1 x 10/100/1000 management port Operating system: Arista EOS Rack units: 1U Airflow: Front-to-back Power input: 2x AC (1+1 redundant) Throughput: 296 Gbps Dimensions: 17.3 x 1.71 x 10.8” (43.9 x 4.35 x 27.6cm), W x H x D incl. fans Weight: 8.6 lbs (3.9kg) Mounting: 2-post and 4-post mounting Fans: FAN-7010X, hot-swappable Power supplies: AC 2 (1+1 redundant) Input voltage: 100-240V AC Power draw (typical): 83W (typical, measured at 25C ambient with 50% load) Power draw (maximum): 95W Operating temperature: 0 to 40˚C (32 to 104˚F) Storage temperature: -40 to 70˚C (-40 to 158˚F) Operating altitude: 0 to 10,000 ft, (0-3,000m) Acoustic noise: 46.5dBA at 27C / 56.5dBA Max CPU: Dual-Core x86 Memory (DRAM): 8 Gigabytes (System Memory) Flash storage: 8 Gigabytes MAC addresses: 64K IPv4 routes: IPv4 host routes 32K; IPv4 LPM routes 16K IPv6 routes: IPv6 host routes 16K; IPv6 LPM unicast (prefix length <= 64) 4K VLANs: 4096 VLAN IDs, 1024 active VLANs Jumbo frames: 9216 Bytes Packet buffer: 4 MB Latency: From 2.8 microseconds (25G SFP to RJ45) Console port: 1 x RS-232 serial (RJ-45) USB port: 1 Certifications: BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI Warranty: 3 years, Townsend Networks Returns: 30 days

MAKER'S DOCUMENT

https://www.arista.com/assets/data/pdf/Datasheets/7010TX-Datasheet.pdf

WHAT'S INCLUDED

One (1) Arista DCS-7010TX-48C-F. Includes a rack-mount kit and the power cables to match the switch.

CONDITION

Condition: New Open Box A new, unused unit in its original packaging. Cosmetic handling marks on the outer box are possible for warehouse stock.

WARRANTY & RETURNS

DCS-7010TX-48C-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
