What ports does the C8500L-8S4X have?

The C8500L-8S4X has 8 × 1GbE, with uplinks of 4x 1/10GbE SFP+ and 12 data ports in all.

Which way does the air flow on the C8500L-8S4X?

The airflow of the C8500L-8S4X is air intake on the I/O side; the fan tray sits on the PSU side.

What are the size and weight of the C8500L-8S4X?

The C8500L-8S4X measures 1.73 x 17.50 x 16.25 in and weighs 17 lb with 2 AC power supplies and fan tray.

How much rack space does the C8500L-8S4X take?

The C8500L-8S4X takes 1 RU of rack space.

What temperature range does the C8500L-8S4X run in?

The operating temperature range of the C8500L-8S4X is 0 to 40 °C (32 to 104 °F).

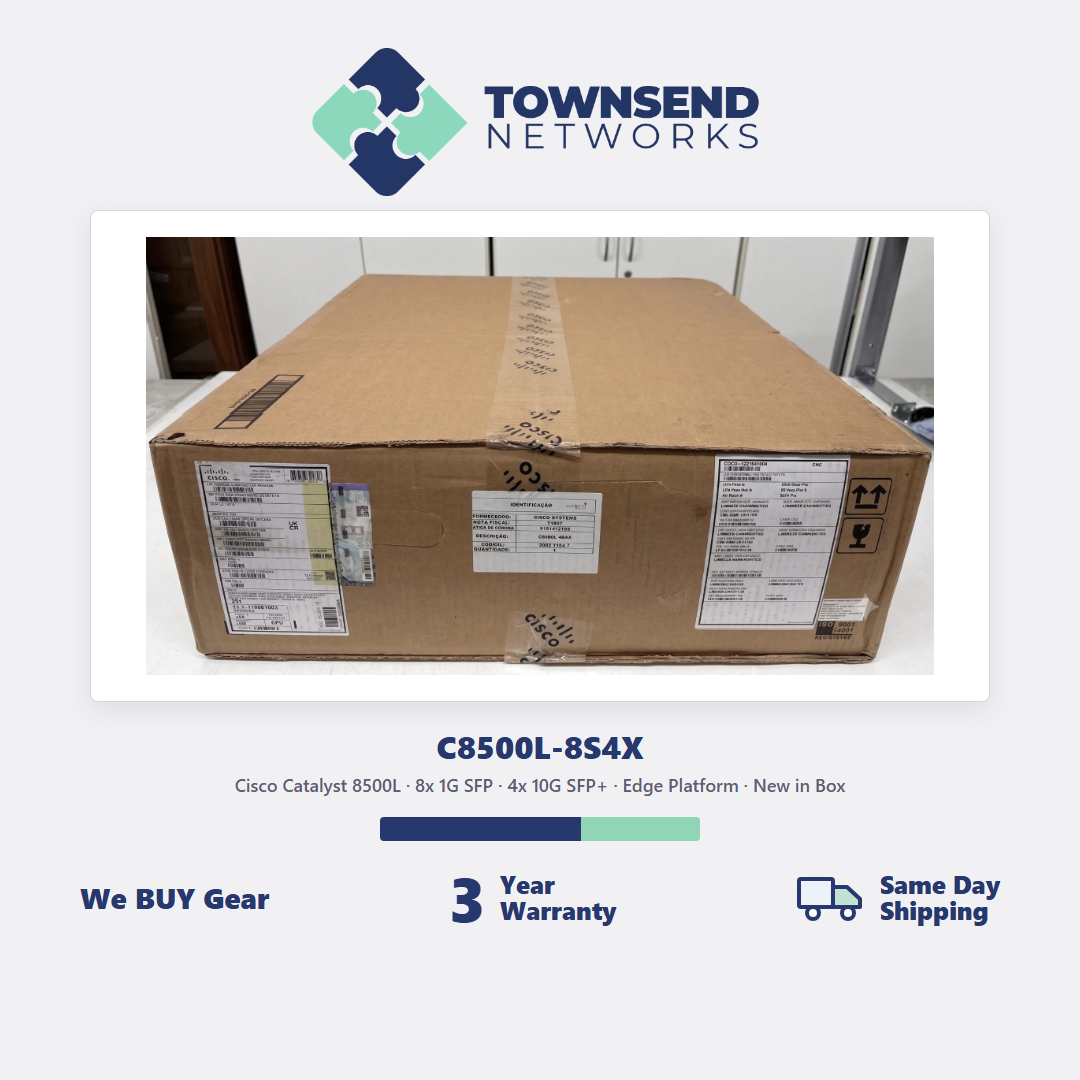

C8500L-8S4X Cisco Router, New, 8x 1GbE SFP and 4x 1/10GbE SFP+

Condition: New
WARRANTY & RETURNS: C8500L-8S4X has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$9,895

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

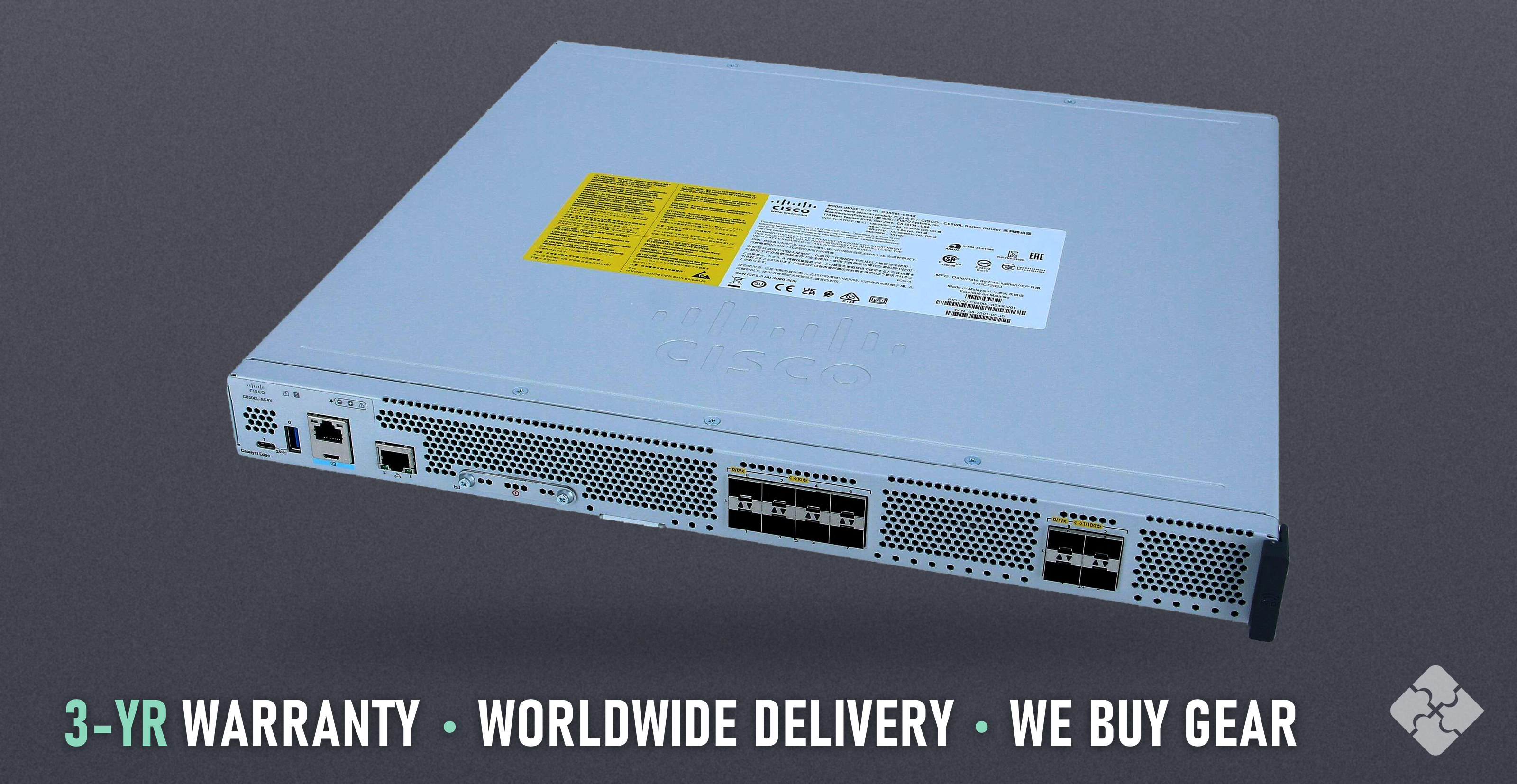

The Cisco C8500L-8S4X is a router from the Cisco C8500L family with 8 ports of 1GbE SFP and 4 ports of 1/10GbE SFP+. This unit is new: unused, in its original packaging. One unit per order.

Model: C8500L-8S4X
Network Ports: 8 × 1GbE
Connectors: SFP, SFP+
Type: Router
Condition: New

Technical details

Brand	Cisco
Family	C8500L
Uplinks	4x 1/10GbE SFP+
Total ports	12
Fastest port	10GbE
Rack units	1 RU
Airflow	Air intake on the I/O side; the fan tray sits on the PSU side
Dimensions	1.73 x 17.50 x 16.25 in
Weight	17 lb with 2 AC power supplies and fan tray
Power supplies	AC 424 W, DC 400 W or HVAC/HVDC 500 W output (12 V at 42 A)
Input voltage	AC 85 to 264 V; DC -40 to -72 V; HV supply 85 to 305 V AC or 192 to 400 V DC
Heat output	511 BTU/hr, 1,057 BTU/hr maximum
Operating temperature	0 to 40 °C (32 to 104 °F)
Storage temperature	-40 to 70 °C (-40 to 150 °F)
Operating humidity	10 to 85% noncondensing
Operating altitude	-500 to 10,000 ft (-152 to 3,048 m)
MTBF	240,200 hours (last column of the maker row, as the part-number row runs)
Memory (DRAM)	16 GB default, upgradable to 32 GB or 64 GB
Flash storage	16 GB eUSB default, upgradable to 32 GB; optional 2 TB M.2 NVMe SSD
Switching capacity	IPv4 forwarding up to 39 Gbps (1400-byte packets)

Cisco datasheet

Testing process

What buyers ask

Can I get a price and the quantity available for the C8500L-8S4X?: Yes. Use Request a quote on this page with the part number C8500L-8S4X and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the C8500L-8S4X ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the C8500L-8S4X in?: The C8500L-8S4X on this page is New.

Questions and answers

What ports does the C8500L-8S4X have?: The C8500L-8S4X has 8 × 1GbE, with uplinks of 4x 1/10GbE SFP+ and 12 data ports in all.
Which way does the air flow on the C8500L-8S4X?: The airflow of the C8500L-8S4X is air intake on the I/O side; the fan tray sits on the PSU side.
What are the size and weight of the C8500L-8S4X?: The C8500L-8S4X measures 1.73 x 17.50 x 16.25 in and weighs 17 lb with 2 AC power supplies and fan tray.
How much rack space does the C8500L-8S4X take?: The C8500L-8S4X takes 1 RU of rack space.
What temperature range does the C8500L-8S4X run in?: The operating temperature range of the C8500L-8S4X is 0 to 40 °C (32 to 104 °F).

Catalyst 8500 Series 4x SFP+ and 8x SFP 4x10GE, 8x1GE
