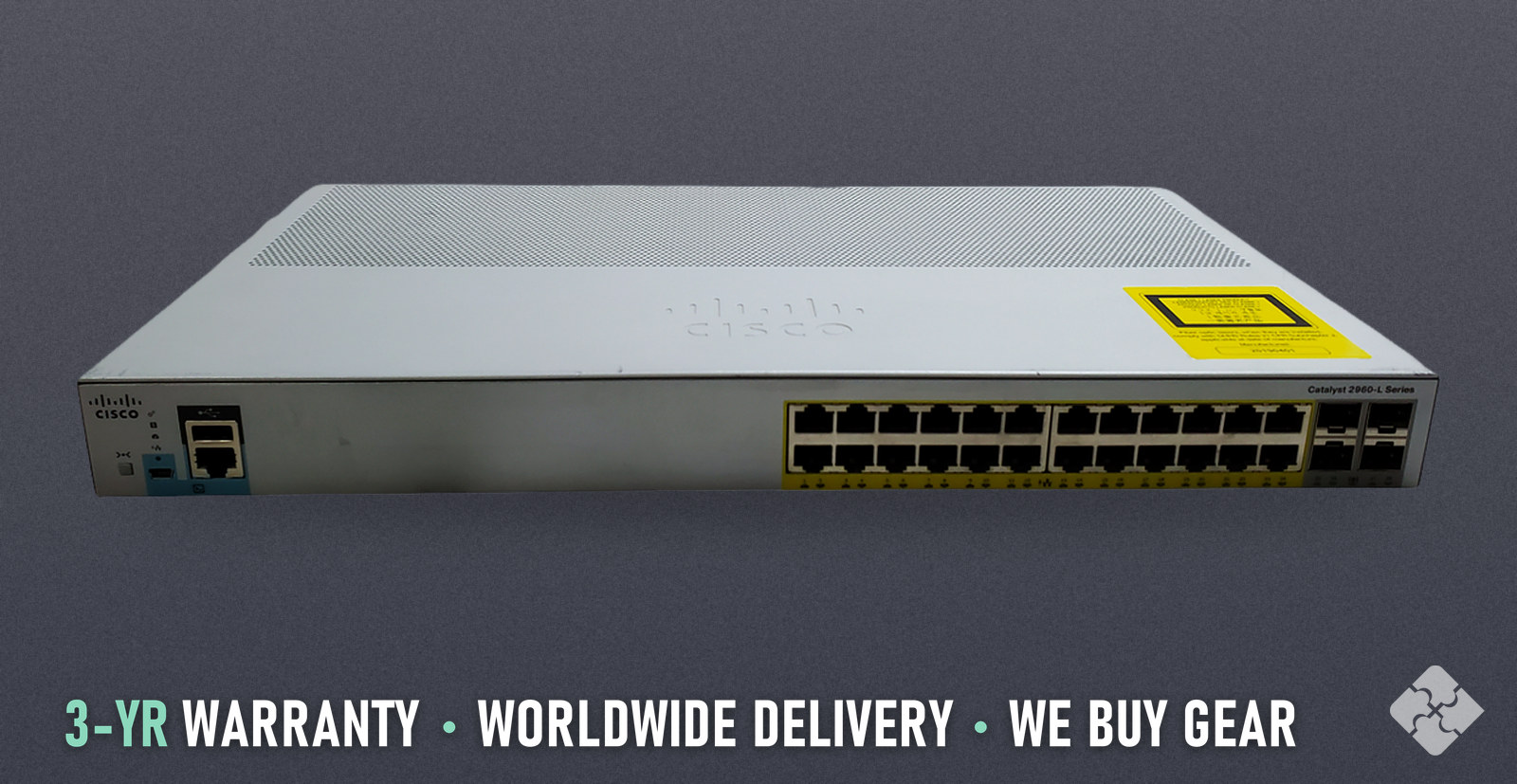

WS-C2960L-24PS-LL Cisco Switch, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 1GbE SFP
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- WS-C2960L-24PS-LL has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
The Cisco WS-C2960L-24PS-LL is a switch from the Cisco C2960L family with 24 ports of 1GbE PoE+ RJ45 and 4 ports of 1GbE SFP. It is a Layer 2 managed platform. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
- HOW IT DIFFERS
- WS-C2960L-24PS-LL is the 24-port PoE+ Catalyst 2960-L: 24 10/100/1000 ports, 4 SFP uplinks, 195 W of available PoE, fanless, 1.73 x 10.45 x 17.5 in and 7.41 lb. Cisco gives the 2960-L a single fixed power supply. Its sister WS-C2960L-8TS-LL has 8 ports and 2 SFP uplinks with no PoE, in a 1.73 x 8.45 x 10.56 in case at 3.33 lb, and the WS-C2960L-24TS-LL is the 24-port model without PoE.
- Model
- WS-C2960L-24PS-LL
- Network Ports
- 24 × 1GbE
- Connectors
- RJ45, SFP
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Cisco |
|---|---|
| Family | C2960L |
| Uplinks | 4x 1GbE SFP |
| Total ports | 28 |
| PoE | Yes |
| PoE standard | 802.3af/802.3at |
| PoE budget | 195 W |
| Layer | Layer 2 (managed) |
| Airflow | Fanless |
| Throughput | 56 Gbps switching, 41.67 Mpps forwarding |
| Power supplies | A single fixed power supply |
| Input voltage | 110 to 220 V AC auto-ranging, 50 to 60 Hz |
End of sale and support
| Model | Announced | End of sale | End of support | Replacement | Notice |
|---|---|---|---|---|---|
| Cisco Catalyst 2960-L | C1000-24P-4G-L, C1000-8T-2G-L (Catalyst 1000) | Cisco notice |
Questions about the Cisco Catalyst 2960 family
- What ports does the WS-C2960L-24PS-LL have?
- The WS-C2960L-24PS-LL has 24 × 1GbE, with uplinks of 4x 1GbE SFP and 28 data ports in all.
- What is the throughput of the WS-C2960L-24PS-LL?
- The WS-C2960L-24PS-LL has a throughput of 56 Gbps switching, 41.67 Mpps forwarding.
- Which way does the air flow on the WS-C2960L-24PS-LL?
- The airflow of the WS-C2960L-24PS-LL is fanless.
- What power does the WS-C2960L-24PS-LL use?
- The WS-C2960L-24PS-LL uses a PoE budget of 195 W and 802.3af/802.3at.
- What do LAN Base and LAN Lite mean, and can they be upgraded?
- They are the Cisco IOS feature sets the switch was built with: the -L part numbers here run LAN Base and the -LL part numbers run LAN Lite. Cisco's 2960-X data sheet says each model is tied to its feature level: LAN Lite cannot be upgraded to LAN Base, and LAN Base cannot be upgraded to IP Lite. Buy the part number that already carries the features you need.
- Are the Catalyst 2960-X, 2960-L and 2960 end of life?
- Yes. Cisco's 2960-X notice set end of sale on 31 October 2022 and the last date of support on 31 October 2027, with the Catalyst 9200L named as the replacement. The 2960-L models reached end of sale on 31 October 2021 with support ending 31 October 2026, and the WS-C2960-48PST-L left sale on 31 October 2014, with Cisco support ended on 31 October 2019.
- What condition and warranty come with a Cisco Catalyst 2960 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.
Cisco WS-C2960L-24PS-LL / Catalyst 2960L, 24x GbE PoE+ (802.3af/at, 195W budget) + 4x 1GbE SFP uplinks, LAN Lite (Layer 2)
WHAT'S INCLUDED
One (1) Cisco WS-C2960L-24PS-LL. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed WS-C2960L-24PS-LL was tested by Townsend Networks technicians before listing. The test process is on the testing process.
