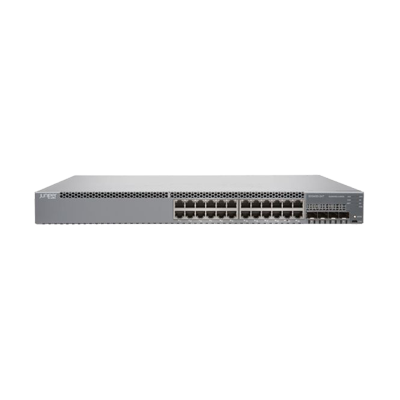

EX3400-24P Juniper Switch, Front-to-Back, Refurbished, 24x 1GbE PoE+ RJ45 and 2x 40GbE QSFP+
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- EX3400-24P has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
The Juniper EX3400-24P is a switch from the Juniper EX3400 family with 24 ports of 1GbE PoE+ RJ45, 2 ports of 40GbE QSFP+, front-to-back airflow and AC power. It has 30 ports in all. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
- HOW IT DIFFERS
- EX3400-24P is the 24 port PoE+ EX3400. Juniper's data sheet lists 24 PoE+ ports with 4 SFP+ and 2 QSFP+ uplinks, a PoE budget of 370 W with one power supply or 720 W with two, and a 600 W AC power supply of 1.82 lb (0.83 kg), front-to-back airflow and 37 dBA of acoustic noise. Its sister EX3400-48P carries 48 PoE+ ports, 740 W or 1440 W of PoE budget and a 920 W supply, and is rated at 46 dBA.
- Model
- EX3400-24P
- Network Ports
- 24 × 1GbE
- Connectors
- RJ45, SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | EX3400 |
| Uplinks | 2x 40GbE QSFP+, 4x 1/10GbE SFP+ |
| Total ports | 30 |
| Fastest port | 40GbE |
| PoE | Yes |
| PoE standard | 802.3at |
| Operating system | Junos OS |
| Rack units | 1U |
| Airflow | Front-to-back (AFO) |
| Power input | AC |
What buyers ask
- Can the EX3400 be ordered with an additional power supply?
- Yes. The switch ships with one power supply preinstalled, additional power supplies are separately orderable, and up to two can be installed. On the EX3400-24P, Juniper lists 370 W of PoE with one 600 W power supply and 720 W with two.
Questions about the Juniper EX3400 family
- What power does the EX3400-24P use?
- The EX3400-24P uses AC and 802.3at.
- What ports does the EX3400-24P have?
- The EX3400-24P has 24 × 1GbE, with uplinks of 2x 40GbE QSFP+, 4x 1/10GbE SFP+ and 30 data ports in all.
- Which way does the air flow on the EX3400-24P?
- The airflow of the EX3400-24P is front-to-back (AFO).
- How much rack space does the EX3400-24P take?
- The EX3400-24P takes 1U of rack space.
- What software does the EX3400-24P run?
- The EX3400-24P runs Junos OS.
- Is the Juniper EX3400 end of life?
- Juniper's EX Series hardware dates and milestones page listed no end-of-life notice for the EX3400 switch models as of 7 October 2026. Juniper updates that page when it announces one.
- How much PoE do the EX3400-24P and EX3400-48P deliver?
- Juniper's model table gives the EX3400-24P 370 W with one 600 W power supply and 720 W with two, and the EX3400-48P 740 W with one 920 W power supply and 1,440 W with two. PoE+ is on every RJ-45 port of those models.
- How many EX3400 switches can be stacked?
- Up to 10 in one Virtual Chassis, managed as a single device with one IP address. The rear QSFP+ ports are Virtual Chassis ports by default; the front uplink ports can also be set as Virtual Chassis ports with SFP+ transceivers, but not with 1G SFP transceivers.
- Can I change the airflow on an EX3400?
- The power supplies and fan modules are field replaceable and labelled for airflow out (AFO, front to back) or airflow in (AFI, back to front). The models above ship front to back; Juniper also builds an EX3400-48T-AFI for back-to-front airflow.
- What condition and warranty come with a Juniper EX3400 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
EX3400-24P 24x 1GB PoE+ RJ-45 4x 10GB SFP+ 2x QSFP+ F-B Air Switch
WHAT'S INCLUDED
One (1) Juniper EX3400-24P. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX3400-24P was tested by Townsend Networks technicians before listing. The test process is on the testing process.
