EX3400-48P Juniper Switch, Front-to-Back, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 40GbE QSFP+

EX3400-48P Juniper Switch, Front-to-Back, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 40GbE QSFP+

Condition
Refurbished, tested & guaranteed
WARRANTY & RETURNS
EX3400-48P has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

$375

Free US ground shipping

Orders placed by 12pm ship the same day.

Request a quote415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

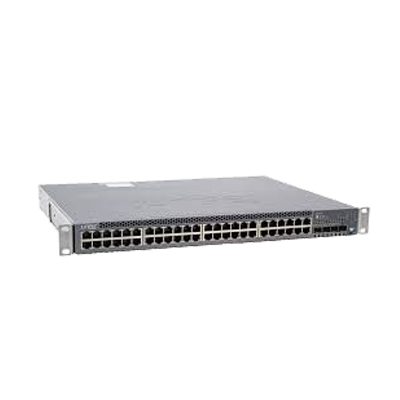

The Juniper EX3400-48P is a switch from the Juniper EX3400 family with 48 ports of 1GbE PoE+ RJ45, 2 ports of 40GbE QSFP+, front-to-back airflow and AC power. It has 54 ports in all. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

HOW IT DIFFERS
EX3400-48P is the 48-port PoE model: 48 Gigabit Ethernet access ports, all of them PoE or PoE+, on the JPSU-920-AC-AFO supply. Juniper's table gives it 1440 W of system PoE with two 920 W power supplies installed and 740 W with one. The switch ships with one supply and a second is orderable. Its sister EX3400-24P has 24 PoE ports on a 600 W supply, with 720 W of PoE from two supplies and 370 W from one.
Model
EX3400-48P
Network Ports
48 × 1GbE
Connectors
RJ45, SFP+, QSFP+
Type
Switch
Condition
Refurbished, tested & guaranteed

Technical details

BrandJuniper
FamilyEX3400
Uplinks2x 40GbE QSFP+, 4x 1/10GbE SFP+
Total ports54
Fastest port40GbE
PoEYes
PoE standard802.3at
PoE budget740 W
Operating systemJunos OS
Rack units1U
AirflowFront-to-back
Power inputAC
Dimensions17.36 x 1.72 x 13.78 in (44.1 x 4.37 x 35 cm), base unit, printed W x H x D
Weight10.49 lb (4.76 kg) maximum, no power supply or fan module
Power suppliesAC; 920W power supply rating
Power draw (maximum)120 W (input power without PoE)
Operating temperature32° to 113° F (0° to 45° C)
Storage temperature-40° to 158° F (-40° to 70° C)
Operating humidity10% to 85% (noncondensing)
Operating altitudeup to 10,000 ft (3048 m)
Acoustic noise46 DBA
CPUDual Core 1 GHz
Memory (DRAM)2 GB with ECC
Flash storage2 GB
Switching capacity168 Gbps (unidirectional)/336 Gbps (bidirectional)
MAC addresses32,000
VLANs4,096
Jumbo frames9216 bytes
Stacking160 Gbps (with QSFP+ ports) or 80 Gbps (with SFP+ ports) Virtual Chassis interconnect

Juniper datasheet

Testing process

What buyers ask

Can the EX3400 be ordered with an additional power supply?
Yes. The switch ships with one power supply preinstalled, additional power supplies are separately orderable, and up to two can be installed.
Can I get a price and the quantity available for the EX3400-48P?
Yes. Use Request a quote on this page with the part number EX3400-48P and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the EX3400-48P ship to my address?
Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the EX3400-48P in?
The EX3400-48P on this page is Refurbished, Tested & Guaranteed.

Questions about the Juniper EX3400 family

What power does the EX3400-48P use?
The EX3400-48P uses AC, a PoE budget of 740 W and 802.3at.
What ports does the EX3400-48P have?
The EX3400-48P has 48 × 1GbE, with uplinks of 2x 40GbE QSFP+, 4x 1/10GbE SFP+ and 54 data ports in all.
Which way does the air flow on the EX3400-48P?
The airflow of the EX3400-48P is front-to-back.
How much power does the EX3400-48P draw?
The maximum power draw of the EX3400-48P is 120 W (input power without PoE).
What are the size and weight of the EX3400-48P?
The EX3400-48P measures 17.36 x 1.72 x 13.78 in (44.1 x 4.37 x 35 cm), base unit, printed W x H x D and weighs 10.49 lb (4.76 kg) maximum, no power supply or fan module.
How much rack space does the EX3400-48P take?
The EX3400-48P takes 1U of rack space.
Is the Juniper EX3400 end of life?
Juniper's EX Series hardware dates and milestones page listed no end-of-life notice for the EX3400 switch models as of 7 October 2026. Juniper updates that page when it announces one.
How much PoE do the EX3400-24P and EX3400-48P deliver?
Juniper's model table gives the EX3400-24P 370 W with one 600 W power supply and 720 W with two, and the EX3400-48P 740 W with one 920 W power supply and 1,440 W with two. PoE+ is on every RJ-45 port of those models.
How many EX3400 switches can be stacked?
Up to 10 in one Virtual Chassis, managed as a single device with one IP address. The rear QSFP+ ports are Virtual Chassis ports by default; the front uplink ports can also be set as Virtual Chassis ports with SFP+ transceivers, but not with 1G SFP transceivers.
Can I change the airflow on an EX3400?
The power supplies and fan modules are field replaceable and labelled for airflow out (AFO, front to back) or airflow in (AFI, back to front). The models above ship front to back; Juniper also builds an EX3400-48T-AFI for back-to-front airflow.
What condition and warranty come with a Juniper EX3400 switch from Townsend?
Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.

Juniper EX3400-48P / 48-port 1GbE PoE+ switch, 4x 1GbE/10GbE SFP+ uplinks, 2x 40GbE QSFP+ (Virtual Chassis)

WHAT'S INCLUDED

One (1) Juniper EX3400-48P. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed EX3400-48P was tested by Townsend Networks technicians before listing. The test process is on the testing process.
