EX4300-48MP Juniper Switch, Front-to-Back, 48x 1GbE PoE++ RJ45 (24 × 10GbE) and 4x 40GbE QSFP+
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- EX4300-48MP has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
$2,465
Free US ground shippingOrders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

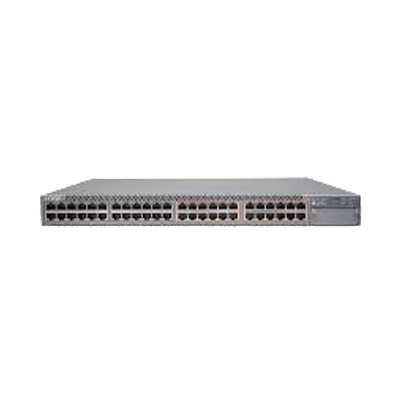

The Juniper EX4300-48MP is a switch from the Juniper EX4300 family with 48 ports of 1GbE PoE++ RJ45 (24 × 10GbE), 4 ports of 40GbE QSFP+, front-to-back airflow and AC power. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
- HOW IT DIFFERS
- EX4300-48MP is the multigigabit model: 24 ports at 10/100/1000BASE-T and 24 ports at 100/1000/2500/5000/10000BASE-T, with 95 W PoE and a 1400 W AC power supply that provides up to 1100 W of PoE++ power. Its sister EX4300-24P has 24 ports at 10/100/1000BASE-T with PoE-plus on a 715 W supply that provides 565 W, so the 48MP carries more multigigabit ports and a larger PoE budget.
- Model
- EX4300-48MP
- Network Ports
- 48 × 1GbE (24 × 10GbE)
- Connectors
- RJ45, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | EX4300 |
| Uplinks | 4x 40GbE QSFP+ |
| Total ports | 52 |
| Fastest port | 40GbE |
| Management ports | Dedicated rear panel RJ-45 port for out-of-band management |
| PoE | Yes |
| PoE standard | 802.3bt PoE++ (up to 95W/port) |
| PoE budget | 1100 W |
| Operating system | Junos OS |
| Rack units | 1 U |
| Airflow | Front-to-back |
| Power input | AC |
| Dimensions | Base unit 17.36 x 1.72 x 18.39 in (44.1 x 4.37 x 46.7 cm), W x H x D |
| Weight | 13 lb (5.9 kg) no PSU/fans; 16.1 lb (7.3 kg) with one PSU and two fan modules |
| Fans | Field-replaceable fans: 2 |
| Power supplies | 1400 W AC AFO (715/1100/1400 W AFO options); dual load-sharing hot-swappable |
| Input voltage | 100-120 V/200-240 V |
| Operating temperature | AFO models: 32° to 113° F (0° to 45° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating humidity | 10% to 85% (noncondensing) |
| Operating altitude | up to 10,000 ft (3,049 m) |
| Acoustic noise | 53.7 dBA |
| CPU | 2.2 GHz Dual-Core Intel Broadwell CPU |
| Memory (DRAM) | 8 GB with ECC |
| Flash storage | 50 GB (Storage) |
| Forwarding rate | 714 Mpps |
| MAC addresses | 64,000 per system |
| IPv4 routes | Unicast in hardware: 16,000 prefixes; 32,000 host routes |
| IPv6 routes | Unicast in hardware: 4000 prefixes; 15,000 host routes |
| VLANs | 4093 |
| Jumbo frames | 9216 Bytes |
| Stacking | Virtual Chassis: up to 10 units, 320 Gbps interconnect |
| Console port | Front panel USB console port and rear panel RJ-45 console port |
| USB port | Rear panel USB port (upload Junos OS and configuration files) |
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper EX4300-48MP | Juniper notice |
Juniper end-of-life notice TSB109284. End of engineering is 2029-12-29.
Questions about the Juniper EX4300 family
- What ports does the EX4300-48MP have?
- The EX4300-48MP has 48 × 1GbE (24 × 10GbE), with uplinks of 4x 40GbE QSFP+ and 52 data ports in all.
- Which way does the air flow on the EX4300-48MP?
- The airflow of the EX4300-48MP is front-to-back.
- What power does the EX4300-48MP use?
- The EX4300-48MP uses AC, a PoE budget of 1100 W and 802.3bt PoE++ (up to 95W/port).
- What are the size and weight of the EX4300-48MP?
- The EX4300-48MP measures Base unit 17.36 x 1.72 x 18.39 in (44.1 x 4.37 x 46.7 cm), W x H x D and weighs 13 lb (5.9 kg) no PSU/fans; 16.1 lb (7.3 kg) with one PSU and two fan modules.
- How much rack space does the EX4300-48MP take?
- The EX4300-48MP takes 1 U of rack space.
- What software does the EX4300-48MP run?
- The EX4300-48MP runs Junos OS.
- Is the Juniper EX4300 end of life?
- Juniper's EX Series hardware milestones page shows three notices for the models on this page. The 24- and 48-port T and P models, including the AFI, DC and TAA versions: end of life announced 24 June 2022, last order 31 March 2024, end of support 31 March 2029. The EX4300-32F and EX4300-32F-DC (TSB105633): last order 31 March 2026, end of support 31 March 2029. The EX4300-48MP (TSB109284, announced 29 June 2026): last order 29 December 2026, end of support 29 December 2031.
- What do AFI and AFO mean on an EX4300?
- Airflow direction. Juniper labels fans and power supplies AIR IN (AFI) for back-to-front airflow and AIR OUT (AFO) for front-to-back airflow. The EX4300-48T-AFI ships with AFI fan modules and power supply; the standard EX4300-48T ships AFO. Match the airflow to the hot and cold aisles of the rack it goes into.
- Can EX4300 switches be stacked, and with what?
- Up to 10 EX4300 switches form a Virtual Chassis. The built-in QSFP+ ports are set up as Virtual Chassis ports by default and can be reconfigured as network ports. An EX4300 can also be a line card member of a mixed Virtual Chassis with EX4600 switches, where the EX4600 takes the primary and backup roles.
- Which uplink modules fit the EX4300?
- The 24- and 48-port T and P models take the 4-port 10GbE SFP+ module EX-UM-4X4SFP. The EX4300-32F takes the 2-port 40GbE QSFP+ module EX-UM-2QSFP or the 8-port 10GbE SFP+ module EX-UM-8X8SFP. The EX4300-48MP takes the EX-UM-2QSFP-MR (two 40GbE or 100GbE ports) or the EX-UM-4SFPP-MR (four 1GbE or 10GbE ports). A switch listing does not include an uplink module unless it says so.
- What condition and warranty come with a Juniper EX4300 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
Juniper EX4300-48MP / EX4300 multigigabit switch, 24x 1GbE RJ-45 (10/100/1000BASE-T) + 24x multigig RJ-45 (100M/1G/2.5G/5G/10GBASE-T) access ports, 802.3bt PoE++ up to 95W/port (1100W PoE budget), 4x 40GbE QSFP+ dedicated Virtual Chassis ports, 1400W AC power supply, front-to-back airflow
WHAT'S INCLUDED
One (1) Juniper EX4300-48MP. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX4300-48MP was tested by Townsend Networks technicians before listing. The test process is on the testing process.
