EX4650-48Y-AFO

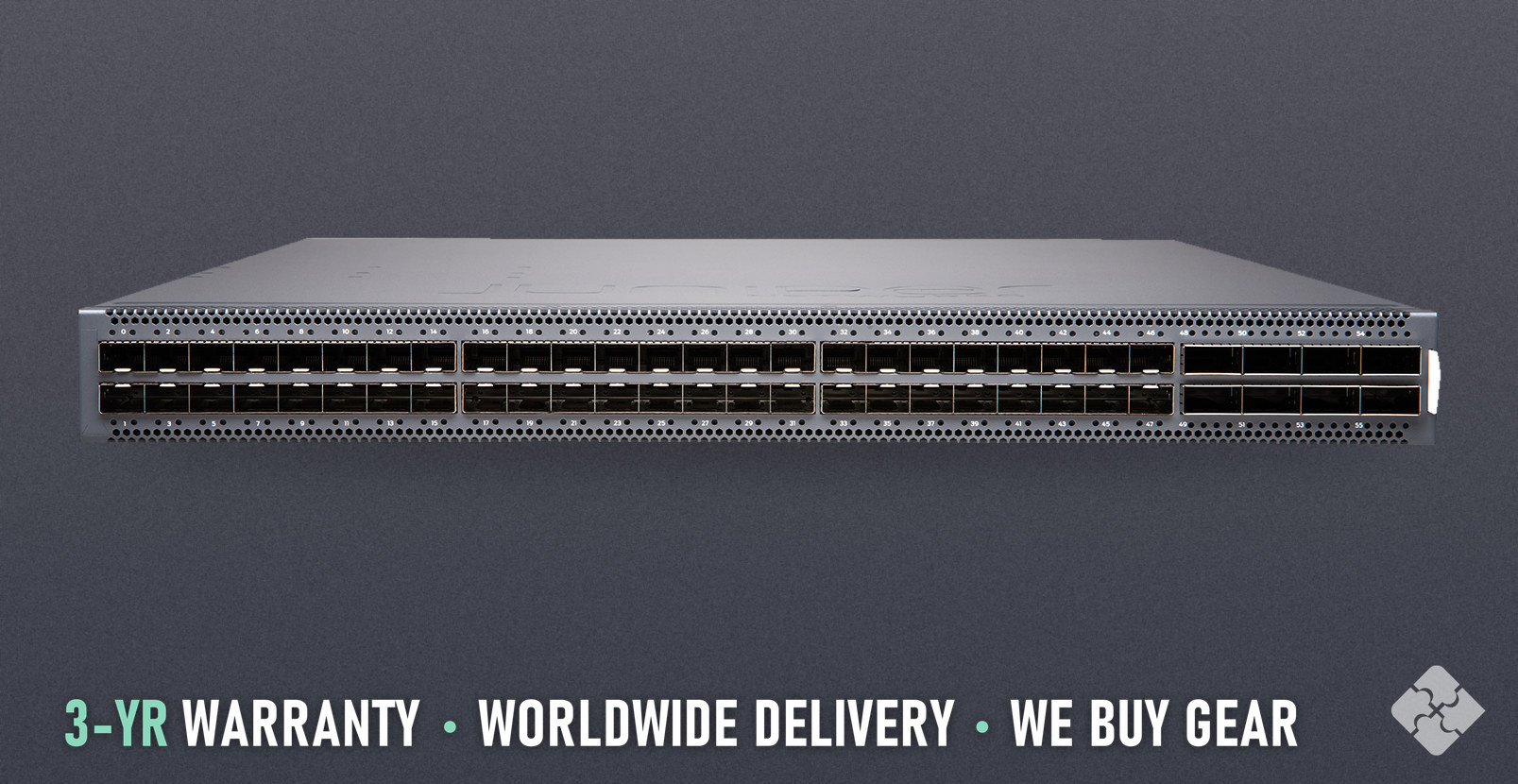

EX4650-48Y-AFO Juniper EX4650 switch, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
EX4650-48Y-AFO, in stock, ships worldwide.
$9,400
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- EX4650-48Y-AFO
- Network Ports
- 48 × 1/10/25GbE
- Connectors
- SFP28, QSFP28
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Questions and answers
- What ports does the EX4650-48Y-AFO have?
- It has 48 × 1/10/25GbE; uplinks: 8x 100GbE QSFP28. 56 data ports in all. Connectors: SFP28, QSFP28.
- What is the throughput of the EX4650-48Y-AFO?
- Throughput is 4 Tbps / 2.98 Bpps aggregate.
- Which way does the air flow on the EX4650-48Y-AFO?
- Airflow is front-to-back (AFO).
- What power does the EX4650-48Y-AFO use?
- It uses AC.
- How much power does the EX4650-48Y-AFO draw?
- Power draw: typical 260 W; maximum 450 W.
- What are the size and weight of the EX4650-48Y-AFO?
- Dimensions: 1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm). Weight: 23.7 lb (10.75 kg).
The Juniper EX4650-48Y-AFO is a switch from the Juniper EX4650 family with 48 ports of 1/10/25GbE SFP28 and 8 ports of 100GbE QSFP28. It runs Junos OS, with front-to-back (AFO) airflow. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX4650-48Y-AFO / 48 25GbE/10GbE/GbE SFP28/SFP+/SFP ports, 8 100GbE/40GbE QSFP28/QSFP+
TECHNICAL DETAILS
Brand: Juniper Family: EX4650 Uplinks: 8x 100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Management ports: 2 management ports: 2 x RJ-45 ports Operating system: Junos OS Rack units: 1U Airflow: Front-to-back (AFO) Power input: AC Throughput: 4 Tbps / 2.98 Bpps aggregate Dimensions: 1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) Weight: 23.7 lb (10.75 kg) Mounting: Versatile four-post mounting options for 19-in server rack or datacom rack Fans: five fan modules Power supplies: two AC power supplies, each with a label AIR OUT (AFO) Input voltage: 110-240 V single phase AC power Power draw (typical): 260 W Power draw (maximum): 450 W CPU: 2.3 GHz quad-core Intel CPU Memory (DRAM): 16 GB Flash storage: 64 GB SSD storage MAC addresses: 288,000 IPv4 routes: 208,000 unicast routes; 360,000 unicast prefixes IPv6 routes: 104,000 unicast routes; 170,000 unicast prefixes VLANs: 4093 VLAN IDs Jumbo frames: 9216 bytes Packet buffer: total of 32 MB of shared buffers Latency: as low as 550 nanoseconds Console port: 1 RS-232 console port USB port: 1 USB 2.0 port Warranty: 3 years, Townsend Networks Returns: 30 days
MAKER'S DOCUMENT
WHAT'S INCLUDED
One (1) Juniper EX4650-48Y-AFO. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX4650-48Y-AFO was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
EX4650-48Y-AFO has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
