ICX6650-48-E-ADV

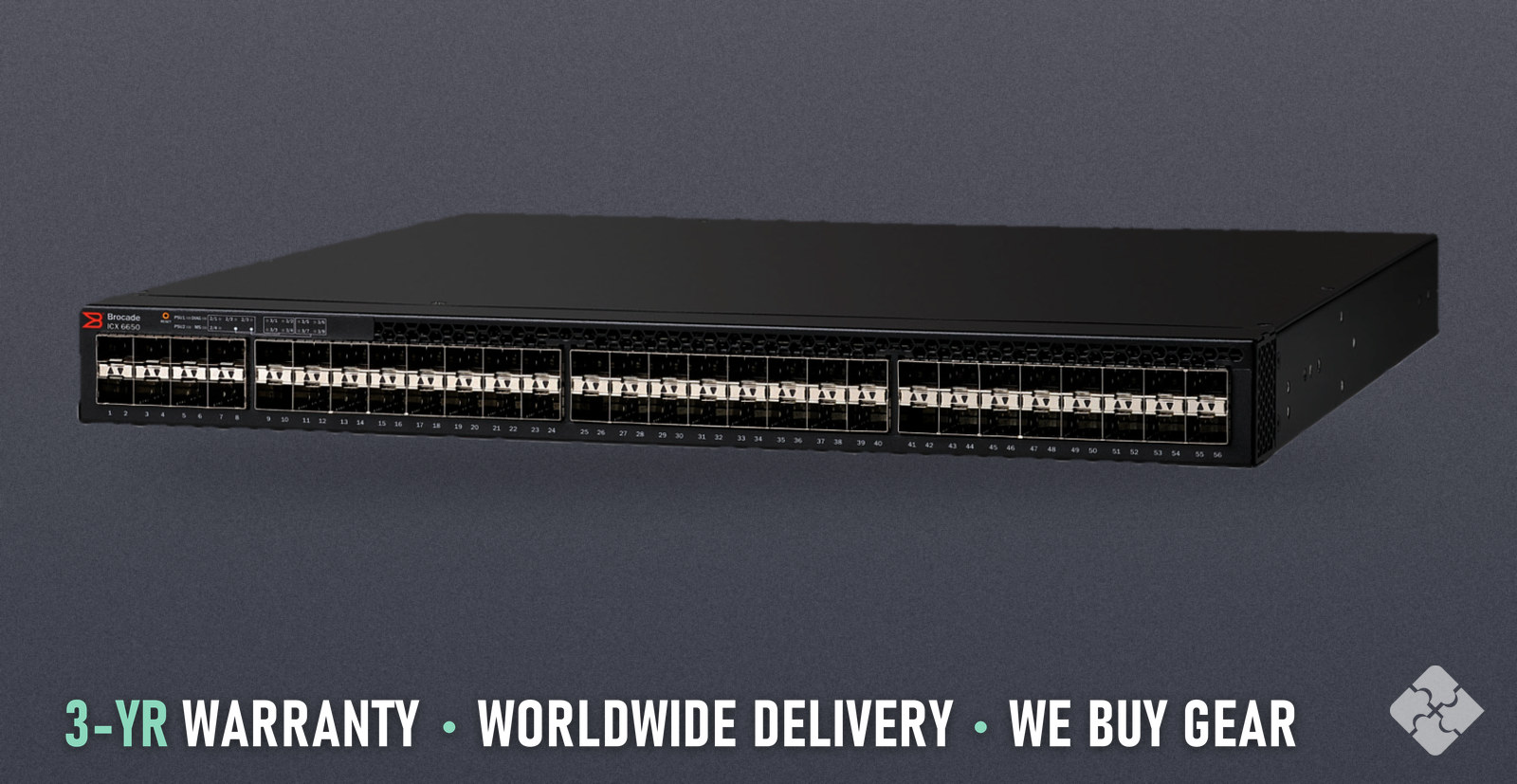

ICX6650-48-E-ADV Brocade Switch, AC Power, Refurbished, 48x 1/10GbE SFP+
Condition: Refurbished. Tested & Guaranteed
ICX6650-48-E-ADV, in stock, ships worldwide.
The Brocade ICX6650-48-E-ADV is a switch from the Brocade ICX6650 family with 48 ports of 1/10GbE SFP+ and AC power. It runs RUCKUS FastIron. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. What ships with it is listed under What's included.
- Part number
- ICX6650-48-E-ADV
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- ICX6650-48-E-ADV has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
- Availability
- In stock
$1,775
Free US ground shippingOrders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Maker description
- Brocade ICX 6650 with 48 10 GbE SFP+ ports enabled. Includes two 250 W AC power supplies and two fan units, power-supply-side exhaust (port-side intake) airflow. Advanced software. No optics.
- HOW IT DIFFERS
- ICX6650-48-E-ADV is the Brocade ICX 6650 with 48 of its 10 GbE SFP+ ports enabled, two 250 W AC power supplies, power-supply-side exhaust airflow and advanced software. Its sister ICX6650-56-E-ADV is the same bundle with 56 ports enabled.
- Model
- ICX6650-48-E-ADV
- Network Ports
- 48 × 1/10GbE
- Connectors
- SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Brocade |
|---|---|
| Family | ICX6650 |
| Operating system | RUCKUS FastIron |
| Rack units | 1U |
| Airflow | Power-supply-side exhaust (port-side intake) |
| Power input | AC |
| Dimensions | 1.732 x 16.88 x 16.00 in (44 x 429.0 x 406.4 mm) |
| Weight | 8.41 kg (18.5 lb) with two power supplies, two fans, without transceivers |
| Power supplies | Two 250 W AC power supplies |
| Input voltage | AC 100 to 240 VAC nominal; DC 40 to 60 VDC nominal |
| Power draw (maximum) | 230 W |
| Heat output | 478 BTU/hour |
| Operating temperature | -5°C to 55°C (23°F to 131°F) at sea level |
| Operating humidity | 5% to 95%, non-condensing |
| Operating altitude | Up to 9,842 ft (3,000 m) |
| Acoustic noise | 46.7 dB |
| Switching capacity | 1,600 Gbps line-speed full-duplex throughput |
| Forwarding rate | 1,190 Mpps |
| Packet buffer | 8 MB |
| Latency | 1,100 to 1,800 nanoseconds |
WHAT'S INCLUDED
One (1) Brocade ICX6650-48-E-ADV switch, 2x 250W AC power supply, 2x fan unit and Ports-on-Demand licence for 16 SFP+ ports. Includes a rack-mount kit and the power cables to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed ICX6650-48-E-ADV was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
