MPC7E-MRATEJuniper

MPC7E-MRATE Juniper Line Card, Refurbished, 8x 10/40GbE QSFP+ and 4x 10/40/100GbE QSFP28

Line Card

Part number: MPC7E-MRATE
Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: MPC7E-MRATE has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$9,500

Orders placed by 12pm ship the same day.

We photograph the actual unit on request before you commit. Request photos

A firm price comes back, typically the same business day.

Prefer a PO or wire? We take those too. Just ask.

Questions about the MPC7E-MRATE? Call 415-626-4231 or email sales@townsendnetworks.com.

We photograph the actual unit on request before you commit. Request photos

MPC7E-MRATE Juniper Line Card, Refurbished, 8x 10/40GbE QSFP+ and 4x 10/40/100GbE QSFP28 — Juniper · Line Card

Condition: Refurbished, Tested & Guaranteed

MPC7E-MRATE, in stock, ships worldwide.

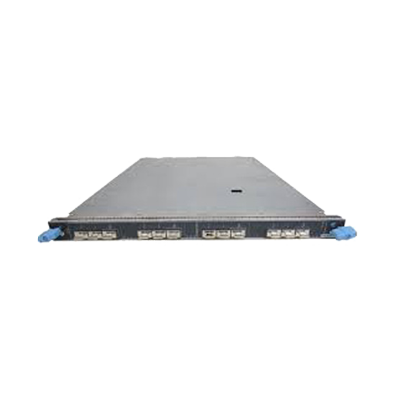

The Juniper MPC7E-MRATE is a line card with 8 ports of 10/40GbE QSFP+ and 4 ports of 10/40/100GbE QSFP28. It is a module that installs into a host chassis and does not run on its own. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. It ships as the module only.

Specifications

Model: MPC7E-MRATE
Network Ports: 8 × 10/40GbE
Connectors: QSFP+, QSFP28
Type: Line Card
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Juniper
Product line	Juniper MX Series MPC7E
Uplinks	4x 10/40/100GbE QSFP28
Total ports	12
Fastest port	100GbE
Weight	15.7 lb (7.12 kg)
Jumbo frames	MTU 256-16,000 bytes (transit); 256-9,500 bytes (host bound)

Juniper datasheet

What buyers ask

Which MX routers take the MPC7E-MRATE, and what must the chassis have?: On the MX240, MX480 and MX960 it needs high-capacity power supplies, high-capacity fan trays and SCBE2 or SCBE3 switch control boards, and it powers on only when the router's network services mode is enhanced-ip or enhanced-ethernet. Juniper gives it line-rate throughput of up to 480 Gbps there. It also fits the MX2000 with an adapter card, at up to 400 Gbps with SFB and 430 Gbps with SFB2.
What ports does the MPC7E-MRATE have?: Twelve ports that take QSFP+ transceivers. Each runs as 40 Gbps or as four 10 Gbps through a breakout cable, and four of them (0/2, 0/5, 1/2 and 1/5) can run at 100 Gbps. The total for each group of six ports is capped at 240 Gbps, and by default the ports come up as 10 Gigabit Ethernet. Juniper lists its power need as 440 W at 25 C, 465 W at 40 C and 545 W at 55 C.
Can I get a price and the quantity available for the MPC7E-MRATE?: Yes. Use Request a quote on this page with the part number MPC7E-MRATE and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the MPC7E-MRATE ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the MPC7E-MRATE in?: The MPC7E-MRATE on this page is Refurbished, Tested & Guaranteed.

Juniper MPC7E-MRATE / 12x QSFP+/QSFP28 multirate ports, 10/40GbE on all 12 and 100GbE on 4, up to 480 Gbps, MX240/MX480/MX960 and MX2000

WHAT'S INCLUDED

One (1) Juniper MPC7E-MRATE. Ships as the module only; it installs into a host chassis, so no rack kit, power cables or console cord are included.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed
MPC7E-MRATE was tested by Townsend Networks technicians before listing.
The test process is on the testing process.
