MX104-AC

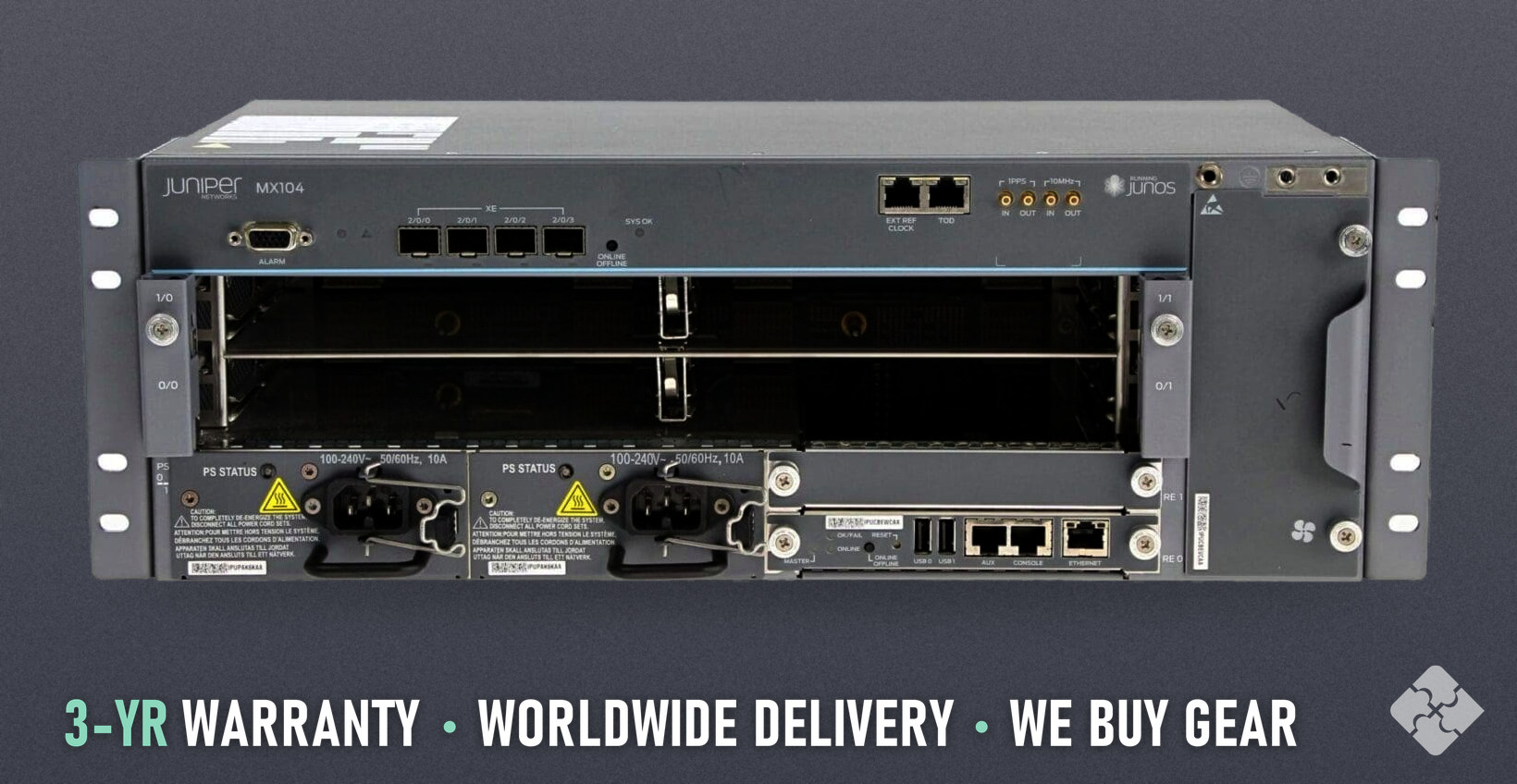

MX104-AC Juniper MX104 router, 4x 10GbE XFP
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
MX104-AC, in stock, ships worldwide.
$3,995
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- MX104-AC
- Network Ports
- 4 × 10GbE
- Connectors
- XFP
- Type
- Router
- Condition
- Refurbished, tested & guaranteed
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper MX104 | Juniper notice |
Questions about the Juniper MX104 family
- What ports does the MX104-AC have?
- It has 4 × 10GbE. Connectors: XFP.
- What is the throughput of the MX104-AC?
- Throughput is up to 1.2 Tbps.
- Which way does the air flow on the MX104-AC?
- Airflow is intake on the right side of the chassis, exhaust out the left side.
- What power does the MX104-AC use?
- It uses AC.
- How much power does the MX104-AC draw?
- Power draw: typical 600 W (AC router, with MICs).
- What are the size and weight of the MX104-AC?
- Dimensions: 6.09 in. (15.47 cm) H x 17.22 in. (43.7 cm) W x 9.461 in. (24 cm) D. Weight: 19.56 lb (9 kg), chassis without power supplies, fan tray, or MICs.
- Is the Juniper MX104 end of life?
- Juniper ended the sale of the Juniper MX104 on March 15, 2023. Its support ends on March 15, 2028. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
The Juniper MX104-AC is a router from the Juniper MX104 family with 4 ports of 10GbE XFP. It runs Junos OS, with a 2U rack-mount form factor and AC power. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One unit per order.

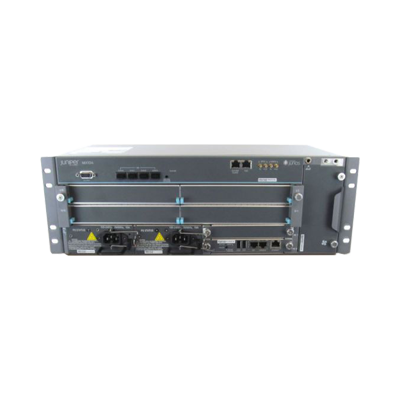

Juniper MX104-AC / MX104 router chassis, 4 MIC slots (empty), 4x10GE XFP built-in ports, AC power supply, 2U
HOW IT DIFFERS
MX104-AC runs on AC power, with an input range of 100 to 240 VAC. Its sister, MX104-DC, runs on DC power, with 24, 48 and 60 volt nominal DC inputs. Typical draw with MICs is 600 W for this one and 625 W for the sister. Pick this one when the site has AC power.
TECHNICAL DETAILS
Brand: Juniper Family: MX104 Management ports: ETHERNET port on the Routing Engine, RJ-45, 10/100/1000 Mbps Operating system: Junos OS Form factor: 2U rack-mount Rack units: 2U Airflow: intake on the right side of the chassis, exhaust out the left side Power input: AC Throughput: up to 1.2 Tbps Dimensions: 6.09 in. (15.47 cm) H x 17.22 in. (43.7 cm) W x 9.461 in. (24 cm) D Weight: 19.56 lb (9 kg), chassis without power supplies, fan tray, or MICs Mounting: 19-in. equipment racks, telco open-frame racks, or enclosed cabinets Fans: one hot-swappable fan tray that contains five fans Power supplies: up to two AC or DC power supplies Input voltage: Operating range: 100 to 240 VAC Power draw (typical): 600 W (AC router, with MICs) Operating temperature: Central office: 23° F (-5° C) to 131° F (55° C); harsh: -40° F (-40° C) to 149° F (65° C) Operating humidity: 5% to 85%, noncondensing Operating altitude: No performance degradation to 6,000 ft (1,900 m) CPU: 1.8-GHz CPU (Routing Engine) Memory (DRAM): 4-GB DDR3 RAM (mini DIMM) (Routing Engine) Flash storage: 8-GB on-board NAND Flash (Routing Engine) Console port: CONSOLE port on the Routing Engine, RJ-45 serial connector USB port: Two USB ports on the Routing Engine Warranty: 3 years, Townsend Networks Returns: 30 days
WHAT'S INCLUDED
One (1) Juniper MX104-AC.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed MX104-AC was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
MX104-AC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
