Is the Juniper MX104 end of life?

Juniper ended the sale of the Juniper MX104 on March 15, 2023. Its support ends on March 15, 2028. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

MX104-DC Juniper Router, DC Power, Refurbished, 4x 10GbE SFP+

Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: MX104-DC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$3,995

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX104-DC is a router from the Juniper MX104 family with 4 ports of 10GbE SFP+ and DC power. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

HOW IT DIFFERS: MX104-DC is the DC-powered MX104. Juniper's guide gives the DC supply three input choices, nominal 24, 48 or 60 VDC, each on a single DC input that needs its own circuit breaker, with 800 W of maximum output. Up to two supplies fit in slots PS 0 and PS 1, and the router cannot run on AC and DC together. Its sister MX104-AC takes AC supplies with the same 800 W output and a 10 A maximum per inlet at 100 VAC.

Model: MX104-DC
Network Ports: 4 × 10GbE
Connectors: SFP+
Type: Router
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Juniper
Family	MX104
Management ports	ETHERNET port on the Routing Engine, RJ-45, 10/100/1000 Mbps
Operating system	Junos OS
Rack units	3.5 rack units (U; that is, 6.125 in., or 15.55 cm) tall
Airflow	intake on the right side of the chassis, exhaust out the left side
Power input	DC
Throughput	80 Gbps system capacity
Dimensions	6.09 in. (15.47 cm) H x 17.22 in. (43.7 cm) W x 9.461 in. (24 cm) D
Weight	19.56 lb (9 kg), chassis without power supplies, fan tray, or MICs
Mounting	19-in. equipment racks, telco open-frame racks, or enclosed cabinets
Fans	one hot-swappable fan tray that contains five fans
Power supplies	up to two AC or DC power supplies
Input voltage	18 to 30 VDC (24 nominal); -39 to -56 VDC (48 nominal); -39 to -72 VDC (60 nominal)
Power draw (typical)	625 W (DC router, with MICs)
Operating temperature	Central office: 23° F (-5° C) to 131° F (55° C); harsh: -40° F (-40° C) to 149° F (65° C)
Operating humidity	5% to 85%, noncondensing
Operating altitude	No performance degradation to 6,000 ft (1,900 m)
CPU	1.8-GHz CPU (Routing Engine)
Memory (DRAM)	4-GB DDR3 RAM (mini DIMM) (Routing Engine)
Flash storage	8-GB on-board NAND Flash (Routing Engine)
Console port	CONSOLE port on the Routing Engine, RJ-45 serial connector
USB port	Two USB ports on the Routing Engine

Juniper datasheet

Testing process

End of sale and support

Model	Announced	End of sale	End of support	Notice
Juniper MX104	2022-09-30	2023-03-15	2028-03-15	Juniper notice

Questions about the Juniper MX104 family

What software does the MX104-DC run?: The MX104-DC runs Junos OS.
Is the Juniper MX104 end of life?: Juniper ended the sale of the Juniper MX104 on March 15, 2023. Its support ends on March 15, 2028. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

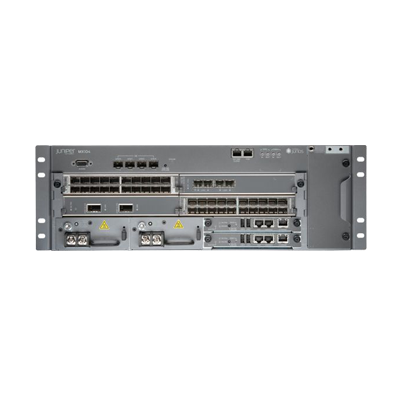

Juniper MX104-DC / MX104 router chassis, 4 MIC slots (empty), 4x10GE SFP+ built-in ports, DC power supply, 3.5U

WHAT'S INCLUDED

One (1) Juniper MX104-DC.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed MX104-DC was tested by Townsend Networks technicians before listing. The test process is on the testing process.
