What is the throughput of the MX304-BASE?

The MX304-BASE has a throughput of 4.8 Tbps system capacity (1.6 Tbps per LMIC).

Which way does the air flow on the MX304-BASE?

The airflow of the MX304-BASE is front-to-back (AFO).

How much rack space does the MX304-BASE take?

The MX304-BASE takes 2 RU of rack space.

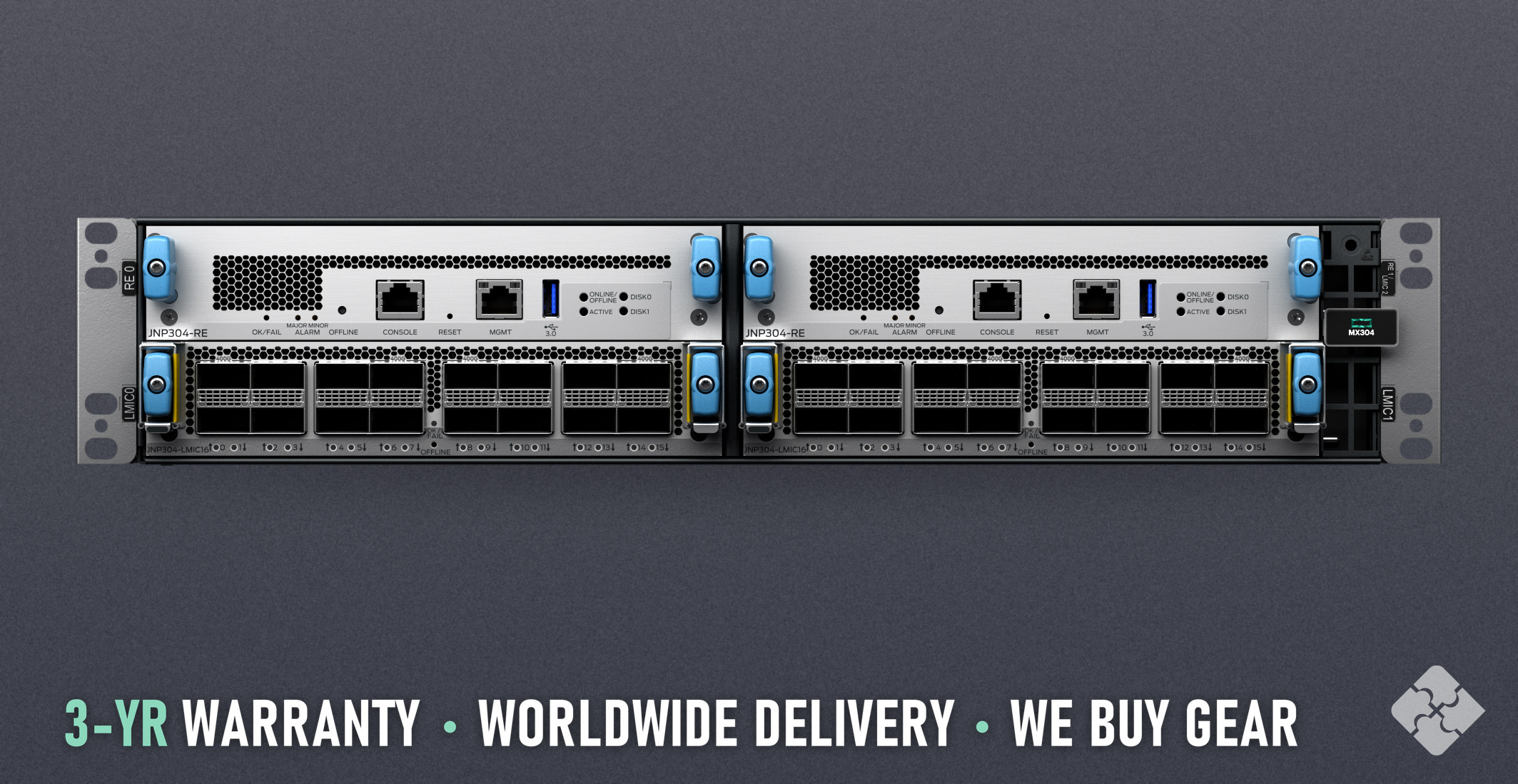

MX304-BASE Juniper Chassis, Front-to-Back Airflow, New, MX304 Series Modular Edge Router

Condition: New
WARRANTY & RETURNS: MX304-BASE has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$34,995

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX304-BASE is a chassis from the Juniper MX304 family with front-to-back airflow. It runs Junos OS, with a 2U rack-mount form factor. Its data ports come from the cards installed in it. This unit is new: unused, in its original packaging. What ships with it is listed under What's included.

Compatible with: Up to three line card MICs (LMICs), each with 1 YT chip and 1.6 Tbps of forwarding capacity; with LMICs the router supports a maximum of 12 x 400 Gbps ports or 48 x 100 Gbps ports or a combination. The base bundle holds 1 Routing Engine, 2 power supplies and 3 fan trays and no LMIC.

Model: MX304-BASE
Type: Chassis
Condition: New

Technical details

Brand	Juniper
Family	MX304
Layer	Layer 3 (managed)
Operating system	Junos OS
Form factor	2U rack-mount
Rack units	2 RU
Airflow	Front-to-back (AFO)
Throughput	4.8 Tbps system capacity (1.6 Tbps per LMIC)
Fans	Three fan modules; front-to-back cooling
Power supplies	Two dedicated modules for AC, DC or HVAC/DC power; this bundle ships with 2

Juniper datasheet

Testing process

What buyers ask

Can I get a price and the quantity available for the MX304-BASE?: Yes. Use Request a quote on this page with the part number MX304-BASE and the quantity you need. A firm price and the quantity available come back, typically the same business day. Pages never print a unit count.
Does the MX304-BASE ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the MX304-BASE in?: The MX304-BASE on this page is New.

Questions and answers

What is the throughput of the MX304-BASE?: The MX304-BASE has a throughput of 4.8 Tbps system capacity (1.6 Tbps per LMIC).
Which way does the air flow on the MX304-BASE?: The airflow of the MX304-BASE is front-to-back (AFO).
How much rack space does the MX304-BASE take?: The MX304-BASE takes 2 RU of rack space.
What software does the MX304-BASE run?: The MX304-BASE runs Junos OS.

Juniper MX304-BASE / MX304 Series Modular Edge Router, Base Chassis Unit, 2U, 1 Routing Engine, 3 fan trays, 2 power supplies, up to 3 LMIC line cards; no line cards included (data ports need separately ordered LMIC line cards)

WHAT'S INCLUDED

One (1) Juniper MX304-BASE chassis, 1x Routing Engine, 2x power supply and 3x fan tray.

CONDITION

Condition: New A new, unused unit in its original packaging. Cosmetic handling marks on the outer box are possible for warehouse stock.
