MX304-PREM Juniper Router, Front-to-Back, New, MX304 3D Universal Edge Router

MX304-PREM Juniper Router, Front-to-Back, New, MX304 3D Universal Edge Router

Condition
New
WARRANTY & RETURNS
MX304-PREM has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

MX304-PREM price

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

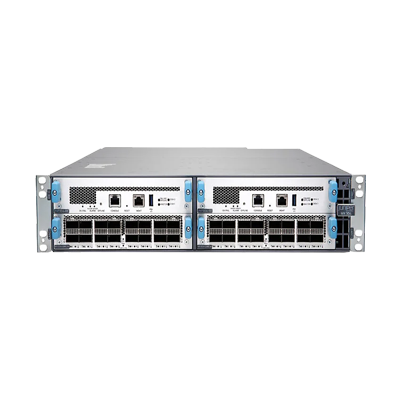

The Juniper MX304-PREM is a router from the Juniper MX304 family with front-to-back airflow. It runs Junos OS, with a 2U rack-mount form factor. This unit is new: unused, in its original packaging. What ships with it is listed under What's included.

Maker description
MX304 chassis with 2 Routing Engines, 2 power supplies and 3 fan trays
HOW IT DIFFERS

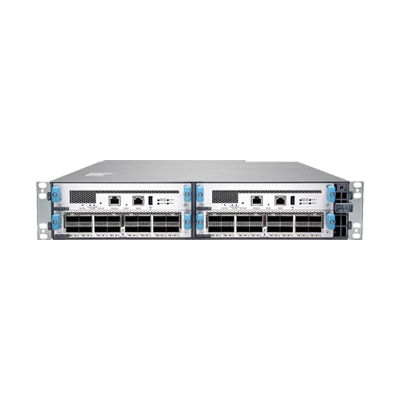

MX304-PREM ships with 2 Routing Engines, 2 power supplies and 3 fan trays. Its sister MX304-BASE has 1 Routing Engine with the same 2 power supplies and 3 fan trays. With one Routing Engine the RE 1 slot can take a third LMIC.
Model
MX304-PREM
Type
Router
Condition
New

Technical details

BrandJuniper
FamilyMX304
LayerLayer 3 (managed)
Operating systemJunos OS
Form factor2U rack-mount
Rack units2U
AirflowFront-to-back (AFO)
Throughput4.8 Tbps system capacity (1.6 Tbps per LMIC)
Dimensions3.5 x 17.63 x 24.01 in (8.89 x 44.8 x 61 cm)
WeightUp to 70.54 lb (32 kg) fully loaded (two Routing Engines and two LMICs)
Power supplies2 (1+1): JNP-PWR2200-AC, JNP-PWR2200-DC or JNP-PWR2200-HV
Heat output4095 BTU/hour at 1200 W (two REs, two LMICs, 32 x 100GbE optics at 25°C)
Operating temperature32 to 104°F (0 to 40°C)
Operating humidity5% to 90%, noncondensing
Operating altitudeUp to 6,000 ft (1,800 m) with no performance degradation
CPURouting Engine with 8 cores and 128 GB RAM

MX304-PREM datasheet

Testing process

What buyers ask

Can I get a price and the quantity available for the MX304-PREM?
Yes. Use Request a quote on this page with the part number MX304-PREM and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the MX304-PREM ship to my address?
Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise.
What condition is the MX304-PREM in?
The MX304-PREM on this page is New.

Questions and answers

What is the throughput of the MX304-PREM?
The MX304-PREM has a throughput of 4.8 Tbps system capacity (1.6 Tbps per LMIC).
Which way does the air flow on the MX304-PREM?
The airflow of the MX304-PREM is front-to-back (AFO).
What are the size and weight of the MX304-PREM?
The MX304-PREM measures 3.5 x 17.63 x 24.01 in (8.89 x 44.8 x 61 cm) and weighs Up to 70.54 lb (32 kg) fully loaded (two Routing Engines and two LMICs).
How much rack space does the MX304-PREM take?
The MX304-PREM takes 2U of rack space.
What temperature range does the MX304-PREM run in?
The operating temperature range of the MX304-PREM is 32 to 104°F (0 to 40°C).
What software does the MX304-PREM run?
The MX304-PREM runs Junos OS.

WHAT'S INCLUDED

One (1) Juniper MX304-PREM router, 2x Routing Engine, 2x power supply and 3x fan tray.

CONDITION

A new, unused unit in its original packaging. Cosmetic handling marks on the outer box are possible for warehouse stock.
