Which way does the air flow on the MX480BASE-AC?

The airflow of the MX480BASE-AC is side to side.

What are the size and weight of the MX480BASE-AC?

The MX480BASE-AC measures 14 in (35.6 cm) H x 17.45 in (44.3 cm) W x 24.5 in (62.2 cm) D, W x H x D and weighs 180 lbs/81.6 kg fully loaded; 65.5 lbs/29.7 kg unloaded.

How much rack space does the MX480BASE-AC take?

The MX480BASE-AC takes 8 of rack space.

What software does the MX480BASE-AC run?

The MX480BASE-AC runs Junos OS.

What temperature range does the MX480BASE-AC run in?

The operating temperature range of the MX480BASE-AC is 32° to 115° F (0° to 46° C) at sea level.

MX480BASE-AC Juniper Chassis, AC Power, Used, MX480 base chassis bundle, 1x Routing Engine

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MX480BASE-AC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$4,200

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX480BASE-AC is a chassis from the Juniper MX480 family with AC power. It runs Junos OS. Its data ports come from the cards installed in it. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. What ships with it is listed under What's included.

HOW IT DIFFERS: MX480BASE-AC has AC power and power supplies: 3 AC power supplies; its sister MX480BASE-DC has DC power and power supplies: 2 DC power supplies.

Model: MX480BASE-AC
Type: Chassis
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Family	MX480
Layer	Layer 3 (managed)
Operating system	Junos OS
Rack units	8
Airflow	Side to side
Power input	AC
Dimensions	14 in (35.6 cm) H x 17.45 in (44.3 cm) W x 24.5 in (62.2 cm) D, W x H x D
Weight	180 lbs/81.6 kg fully loaded; 65.5 lbs/29.7 kg unloaded
Mounting	Front or center
Fans	1 fan tray
Power supplies	3 AC power supplies
Operating temperature	32° to 115° F (0° to 46° C) at sea level
Operating humidity	5% to 90%
Operating altitude	10,000 ft (3048 m)
CPU	6 cores (Routing Engine, number of cores)
Memory (DRAM)	64 GB of DDR4 RAM (Routing Engine default memory)
Flash storage	2x16 MB NOR flash storage; 2x50 GB SSD (Routing Engine default memory)
Switching capacity	7.5 Tbps maximum system throughput (full duplex)

Juniper datasheet

Testing process

What buyers ask

Can I get a price and the quantity available for the MX480BASE-AC?: Yes. Use Request a quote on this page with the part number MX480BASE-AC and the quantity you need. A firm price and the quantity available come back, typically the same business day. Pages never print a unit count.
Does the MX480BASE-AC ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the MX480BASE-AC in?: The MX480BASE-AC on this page is Used, Tested & Guaranteed.

Questions and answers

What power does the MX480BASE-AC use?: The MX480BASE-AC uses AC.
Which way does the air flow on the MX480BASE-AC?: The airflow of the MX480BASE-AC is side to side.
What are the size and weight of the MX480BASE-AC?: The MX480BASE-AC measures 14 in (35.6 cm) H x 17.45 in (44.3 cm) W x 24.5 in (62.2 cm) D, W x H x D and weighs 180 lbs/81.6 kg fully loaded; 65.5 lbs/29.7 kg unloaded.
How much rack space does the MX480BASE-AC take?: The MX480BASE-AC takes 8 of rack space.
What software does the MX480BASE-AC run?: The MX480BASE-AC runs Junos OS.
What temperature range does the MX480BASE-AC run in?: The operating temperature range of the MX480BASE-AC is 32° to 115° F (0° to 46° C) at sea level.

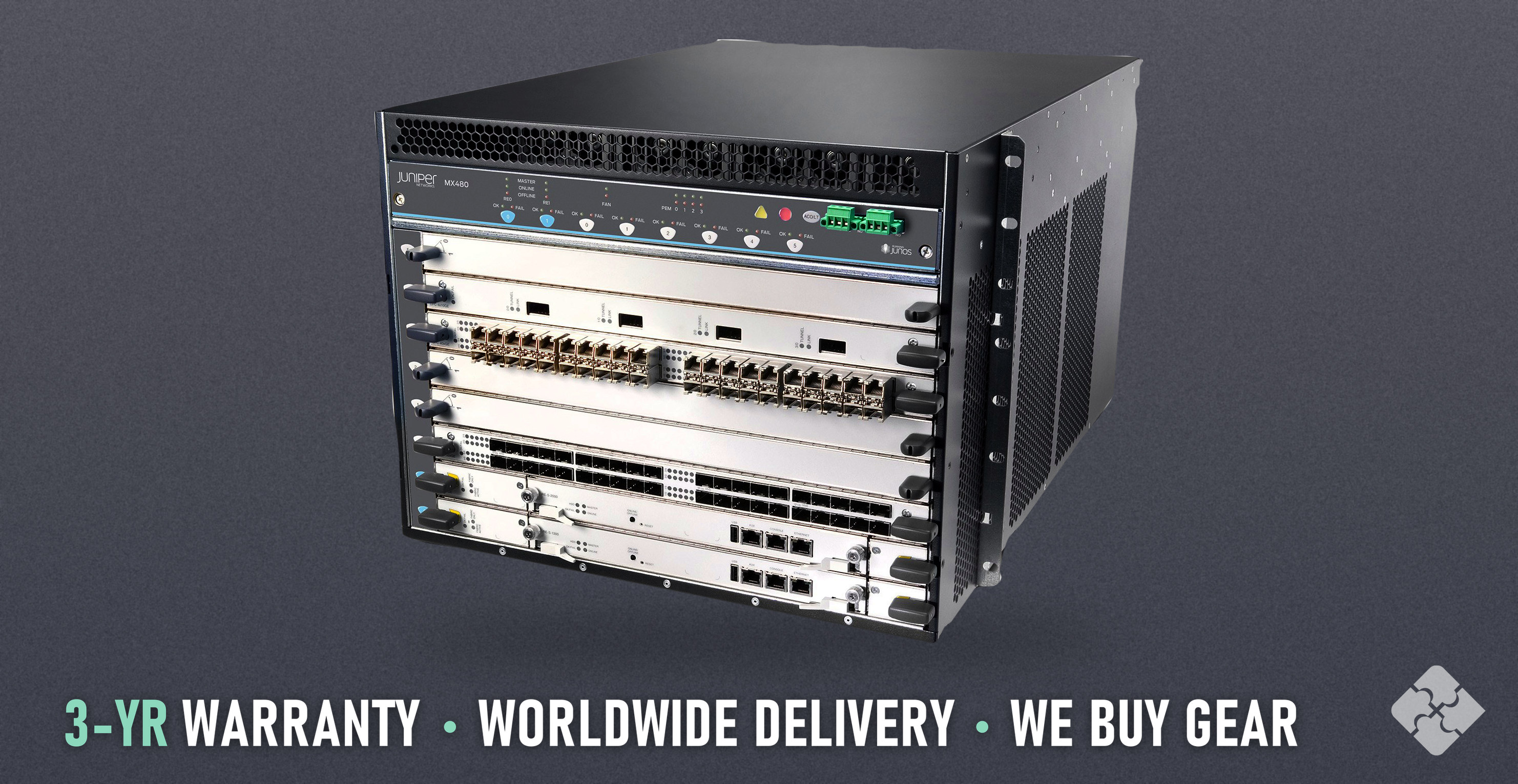

Juniper MX480BASE-AC / MX480 base chassis bundle, 8U, 6 usable MPC slots, includes 1x SCB, 1x Routing Engine, 3x AC power supplies, 1x fan tray -- line cards/MPCs not included

WHAT'S INCLUDED

One (1) Juniper MX480BASE-AC chassis, MX480 base chassis + midplane, 1x SCB (Switch Control Board), 1x RE (Routing Engine), 3x AC power supplies and 1x fan tray.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MX480BASE-AC was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
