What is the throughput of the MX480BASE-DC?

The MX480BASE-DC has a throughput of 5.76 Tbps system capacity.

Which way does the air flow on the MX480BASE-DC?

The airflow of the MX480BASE-DC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.

What are the size and weight of the MX480BASE-DC?

The MX480BASE-DC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm) and weighs 65.5 lb chassis with midplane, fan tray, air filter and cable management brackets.

How much rack space does the MX480BASE-DC take?

The MX480BASE-DC takes 8U of rack space.

What software does the MX480BASE-DC run?

The MX480BASE-DC runs Junos OS.

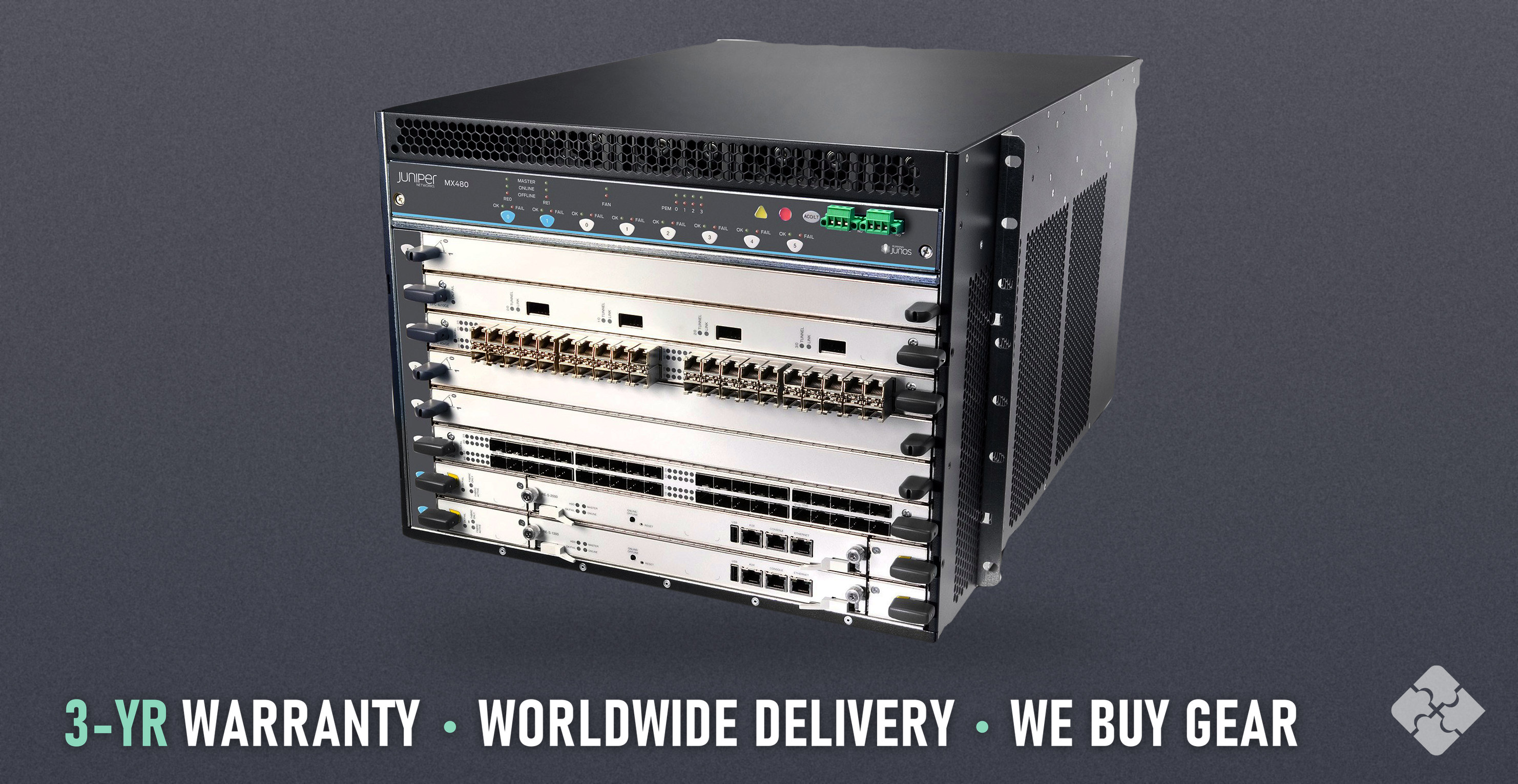

MX480BASE-DC Juniper Router, DC Power, Used, MX480 3D Universal Edge Router DC base unit

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MX480BASE-DC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$7,500

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX480BASE-DC is a router from the Juniper MX480 family with DC power. It runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

Maker description: 8 slot MX480 base chassis with 1 fan tray, 2 DC power supplies, 1 SCB, 1 RE
HOW IT DIFFERS: MX480BASE-DC has DC power and 2 DC power supplies; its sister MX480BASE-AC has AC power and 3 AC power supplies.

Model: MX480BASE-DC
Type: Router
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Family	MX480
Layer	Layer 3 (managed)
Operating system	Junos OS
Rack units	8U
Airflow	Side to side (chassis); power supplies take air in at the front and exhaust at the rear
Power input	DC
Throughput	5.76 Tbps system capacity
Dimensions	14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm)
Weight	65.5 lb chassis with midplane, fan tray, air filter and cable management brackets
Power supplies	2 DC power supplies
Input voltage	-40.5 to -72 VDC (nominal -48 VDC)
Heat output	9,632 BTU/hour (2,823 W) maximum, DC power
Operating temperature	32 to 104°F (0 to 40°C)
Operating humidity	5% to 90%, noncondensing
Operating altitude	Up to 10,000 ft (3048 m) with no performance degradation

Juniper datasheet

Testing process

What buyers ask

Can I get a price and the quantity available for the MX480BASE-DC?: Yes. Use Request a quote on this page with the part number MX480BASE-DC and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the MX480BASE-DC ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the MX480BASE-DC in?: The MX480BASE-DC on this page is Used, Tested & Guaranteed.

Questions and answers

What power does the MX480BASE-DC use?: The MX480BASE-DC uses DC.
What is the throughput of the MX480BASE-DC?: The MX480BASE-DC has a throughput of 5.76 Tbps system capacity.
Which way does the air flow on the MX480BASE-DC?: The airflow of the MX480BASE-DC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.
What are the size and weight of the MX480BASE-DC?: The MX480BASE-DC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm) and weighs 65.5 lb chassis with midplane, fan tray, air filter and cable management brackets.
How much rack space does the MX480BASE-DC take?: The MX480BASE-DC takes 8U of rack space.
What software does the MX480BASE-DC run?: The MX480BASE-DC runs Junos OS.

WHAT'S INCLUDED

One (1) Juniper MX480BASE-DC.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MX480BASE-DC was tested by Townsend Networks technicians before listing. The test process is on the testing process.
