Which way does the air flow on the MX480BASE3-AC?

The airflow of the MX480BASE3-AC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.

What are the size and weight of the MX480BASE3-AC?

The MX480BASE3-AC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm).

How much rack space does the MX480BASE3-AC take?

The MX480BASE3-AC takes 8U of rack space.

What software does the MX480BASE3-AC run?

The MX480BASE3-AC runs Junos OS.

What temperature range does the MX480BASE3-AC run in?

The operating temperature range of the MX480BASE3-AC is 32 to 104°F (0 to 40°C).

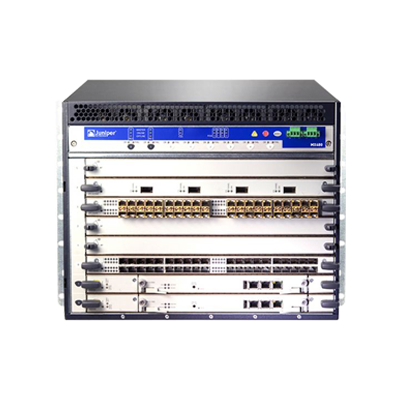

MX480BASE3-AC Juniper Router, AC Power, Used, MX480 3D Universal Edge Router base bundle

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MX480BASE3-AC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$3,495

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX480BASE3-AC is a router from the Juniper MX480 family with AC power. It runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

Maker description: 8 slot MX480 base bundle, AC power
HOW IT DIFFERS: MX480BASE3-AC is Juniper's 8 slot MX480 base bundle with AC power. The MX480 is eight rack units tall with eight slots for up to six DPCs or MPCs, three FPCs and two SCBs, and it takes two, three or four AC power supplies; three are required on low-line power. Its sister MX480BASE3-DC is the base 3 chassis on DC power, and one router cannot run from AC and DC supplies together.

Model: MX480BASE3-AC
Type: Router
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Family	MX480
Layer	Layer 3 (managed)
Operating system	Junos OS
Rack units	8U
Airflow	Side to side (chassis); power supplies take air in at the front and exhaust at the rear
Power input	AC
Dimensions	14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm)
Power supplies	AC power
Heat output	11,322 BTU/hour (3,318 W) maximum, AC power
Operating temperature	32 to 104°F (0 to 40°C)
Operating humidity	5% to 90%, noncondensing
Operating altitude	Up to 10,000 ft (3048 m) with no performance degradation
Switching capacity	Up to 5.76 Tbps aggregate switch fabric capacity, fully populated

Juniper datasheet

Testing process

Questions and answers

What power does the MX480BASE3-AC use?: The MX480BASE3-AC uses AC.
Which way does the air flow on the MX480BASE3-AC?: The airflow of the MX480BASE3-AC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.
What are the size and weight of the MX480BASE3-AC?: The MX480BASE3-AC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm).
How much rack space does the MX480BASE3-AC take?: The MX480BASE3-AC takes 8U of rack space.
What software does the MX480BASE3-AC run?: The MX480BASE3-AC runs Junos OS.
What temperature range does the MX480BASE3-AC run in?: The operating temperature range of the MX480BASE3-AC is 32 to 104°F (0 to 40°C).

WHAT'S INCLUDED

One (1) Juniper MX480BASE3-AC.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MX480BASE3-AC was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
