Is the Brocade VDX 6740 / 6740T end of life?

Brocade ended the sale of the Brocade VDX 6740 / 6740T on January 31, 2023. Its support ends on January 31, 2028. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

What does Brocade name as the replacement for the Brocade VDX 6740 / 6740T?

Brocade's notice names Extreme 8520.

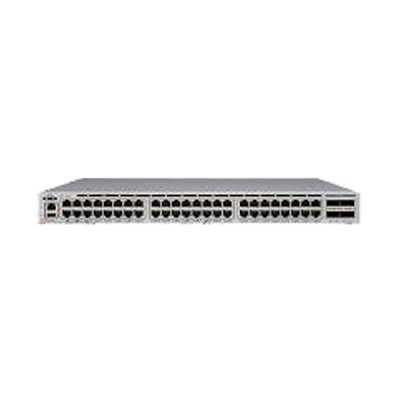

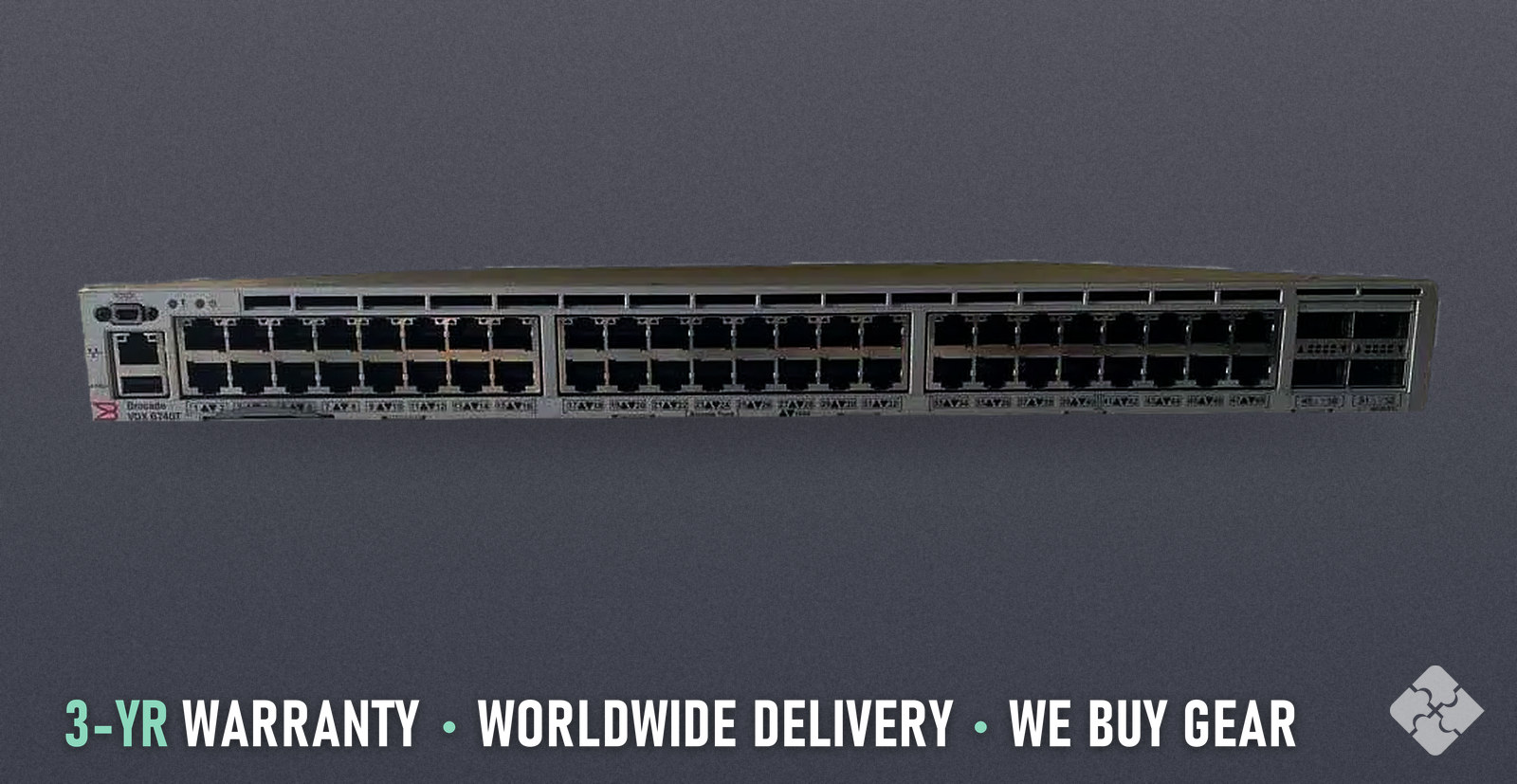

BR-VDX6740T-48-R Brocade Switch, Back-to-Front, Refurbished, 48x 1/10GbE RJ45 and 4x 40GbE QSFP+

Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: BR-VDX6740T-48-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$3,995

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Brocade BR-VDX6740T-48-R is a switch with 48 ports of 1/10GbE RJ45, 4 ports of 40GbE QSFP+, back-to-front airflow and AC power. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Other versions

BR-VDX6740T-48-F
Refurbished, tested & guaranteedAirflow: Front-to-back: air in at the port side, out at the non-port sideIn stock
$3,995

Compatible with: Rear-to-front (-R, orange I) power supplies and fan assemblies only. The guide says every FRU in a chassis must carry the same airflow label so the direction is consistent, and a replacement must match the part number it replaces.
HOW IT DIFFERS: BR-VDX6740T-48-R is the rear-to-front VDX 6740T. Extreme's installation guide gives its parts the orange I symbol and a part number ending in -R: they take air in from the non-port side and push it out through the port side, the opposite of the green E exhaust parts on its sister BR-VDX6740T-48-F. Everything else the guide describes for the 6740T, 48 ports of 10G Base-T copper plus four 40 GbE QSFP ports, is common to both versions. Choose it when the cold aisle faces the power supplies.

Model: BR-VDX6740T-48-R
Network Ports: 48 × 1/10GbE
Connectors: RJ45, QSFP+
Type: Switch
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Brocade
Uplinks	4x 40GbE QSFP+
Total ports	52
Fastest port	40GbE
Airflow	Back-to-front: air in at the non-port side, out at the port side
Power input	AC
Power supplies	Dual hot-swappable 500 W AC supplies; 5 separate hot-swap fans
Input voltage	100 to 240 V AC nominal (90 to 264 V AC range), 50/60 Hz

Brocade datasheet

Testing process

End of sale and support

Model	Announced	End of sale	End of support	Replacement	Notice
Brocade VDX 6740 / 6740T	2022-07-29	2023-01-31	2028-01-31	Extreme 8520	Brocade notice

Questions and answers

Is the Brocade VDX 6740 / 6740T end of life?: Brocade ended the sale of the Brocade VDX 6740 / 6740T on January 31, 2023. Its support ends on January 31, 2028. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
What does Brocade name as the replacement for the Brocade VDX 6740 / 6740T?: Brocade's notice names Extreme 8520.

Brocade BR-VDX6740T-48-R / VDX 6740T Switch, 48x 10GBASE-T Copper Ports + 40GbE QSFP+ Uplinks, AC power, Port-Side Exhaust Airflow

WHAT'S INCLUDED

One (1) Brocade BR-VDX6740T-48-R. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed BR-VDX6740T-48-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
