EX2300-24P Juniper Switch, AC Power, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 1/10GbE SFP+
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- EX2300-24P has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
EX2300-24P price
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

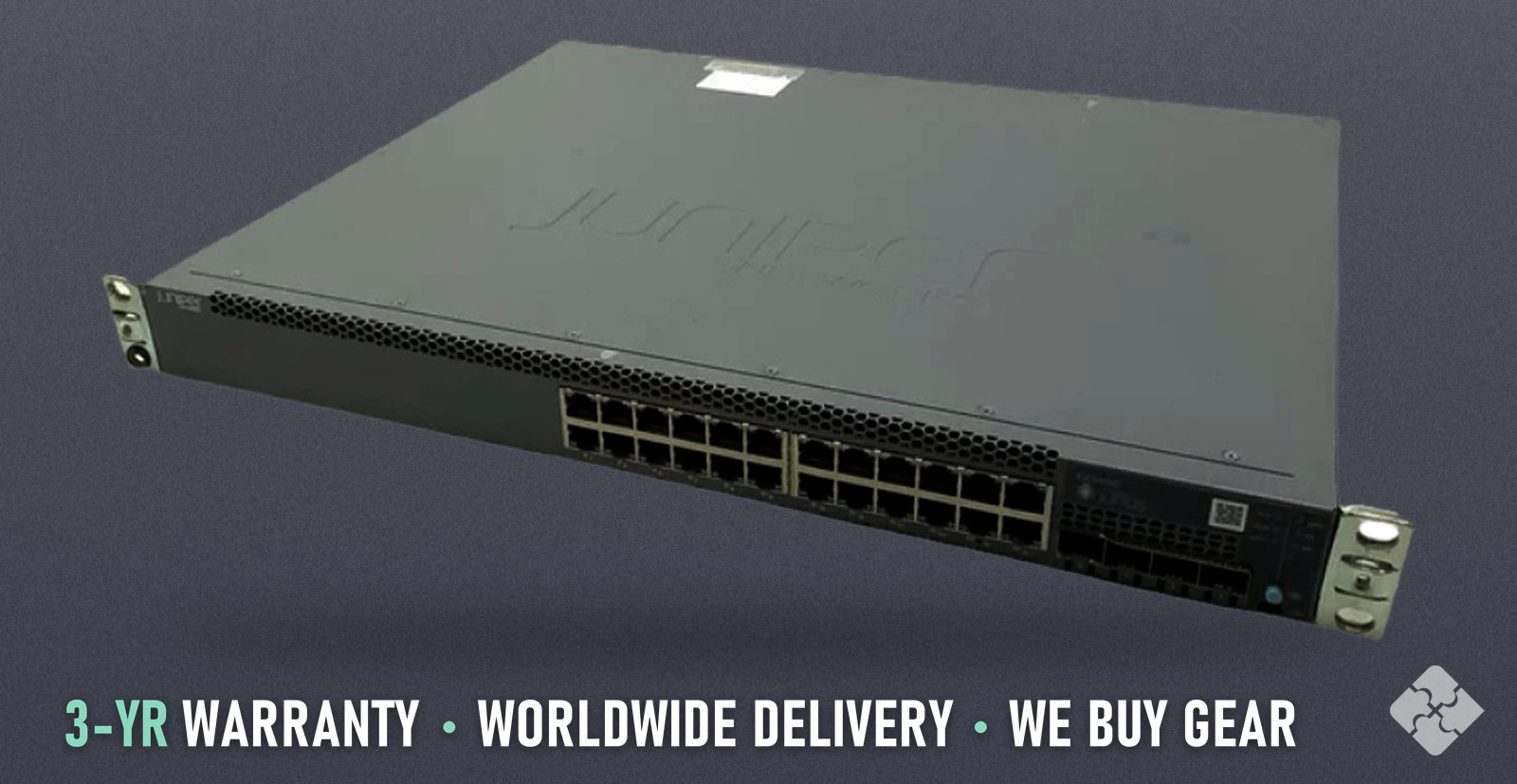

The Juniper EX2300-24P is a switch from the Juniper EX2300 family with 24 ports of 1GbE PoE+ RJ45, 4 ports of 1/10GbE SFP+ and AC power. It is a Layer 3 managed platform that runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
- Model
- EX2300-24P
- Network Ports
- 24 × 1GbE
- Connectors
- RJ45, SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | EX2300 |
| Uplinks | 4x 1/10GbE SFP+ |
| Total ports | 28 |
| Fastest port | 10GbE |
| PoE | Yes |
| PoE standard | 802.3at |
| PoE budget | 370 W |
| Layer | Layer 3 (managed) |
| Operating system | Junos OS |
| Rack units | 1 rack unit |
| Power input | AC |
| Dimensions | 1.75 in. (4.45 cm) H x 17.4 in. (44.19 cm) W x 12.2 in. (30.98 cm) D (PoE models) |
| Weight | 9.89 lb (4.49 kg) |
| Fans | Integrated fans |
| Power supplies | Built-in power supply (AC or DC) |
| Switching capacity | 128 Gbps (listed as data rate) |
| Forwarding rate | 95 Mpps (wire speed) |
| MAC addresses | 16,000 |
| IPv4 routes | 4096 / 2048 (unicast/multicast) |
| IPv6 routes | 2048 / 1024 (unicast/multicast) |
| VLANs | 4093 |
| Jumbo frames | 9216 bytes |
| Stacking | Campus Fabrics: Virtual Chassis; backplane speed 80 Gbps |
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper EX2300 | Juniper notice |
Juniper end-of-life notice TSB107683. End of engineering is 2029-09-30.
Questions about the Juniper EX2300 family
- What power does the EX2300-24P use?
- The EX2300-24P uses AC, a PoE budget of 370 W and 802.3at.
- What software does the EX2300-24P run?
- The EX2300-24P runs Junos OS.
- What ports does the EX2300-24P have?
- The EX2300-24P has 24 × 1GbE, with uplinks of 4x 1/10GbE SFP+ and 28 data ports in all.
- What are the size and weight of the EX2300-24P?
- The EX2300-24P measures 1.75 in. (4.45 cm) H x 17.4 in. (44.19 cm) W x 12.2 in. (30.98 cm) D (PoE models) and weighs 9.89 lb (4.49 kg).
- How much rack space does the EX2300-24P take?
- The EX2300-24P takes 1 rack unit of rack space.
- Is the Juniper EX2300 end of life?
- Yes. Juniper's end-of-life notice TSB107683, announced 30 April 2026, covers every EX2300 model on this page. Juniper lists the last order date as 30 September 2026, end of engineering as 30 September 2029, the last software version as Junos 25.4 and end of support as 30 September 2031.
- What does -VC mean on an EX2300?
- Juniper's EX2300 model table lists the Virtual Chassis licence as included on the -VC models and not included on the others. Up to four EX2300 switches, EX2300-C models included, can be joined into one Virtual Chassis and managed as a single switch, using the 10GbE uplink ports with SFP+ transceivers; Juniper notes that a Virtual Chassis cannot be formed over 1G SFP transceivers.
- How much PoE do the EX2300 models deliver?
- Juniper's model table gives the EX2300-C-12P 124 W across its 12 ports and the EX2300-48P and EX2300-48MP 740 W across all 48 ports. The T models have no PoE, and the uplink ports never carry PoE on any model.
- Which EX2300 models are fanless?
- The EX2300-C models, the EX2300-C-12T and EX2300-C-12P. They cool through vents and heatsinks instead of fans, and Juniper documents desk and under-desk mounting for them. The 24- and 48-port models have built-in fans.
- What condition and warranty come with a Juniper EX2300 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
Juniper EX Series EX2300-24P Managed L3 Switch
WHAT'S INCLUDED
One (1) Juniper EX2300-24P. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
EX2300-24P was tested by Townsend Networks technicians before listing. The test process is on the testing process.
