Is the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards end of life?

Name: MPC-3D-16XGE-SFPP-R-B Juniper Line Card, Used, 16x 10GbE SFP+
Brand: Juniper
SKU: MPC-3D-16XGE-SFPP-R-B
Price: 2061.05 USD
Availability: InStock

Juniper ended the sale of the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards on June 30, 2021. Its support ended on June 30, 2026. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

MPC-3D-16XGE-SFPP-R-B Juniper Line Card, Used, 16x 10GbE SFP+

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MPC-3D-16XGE-SFPP-R-B has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$2,061.05

Free US ground shipping

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

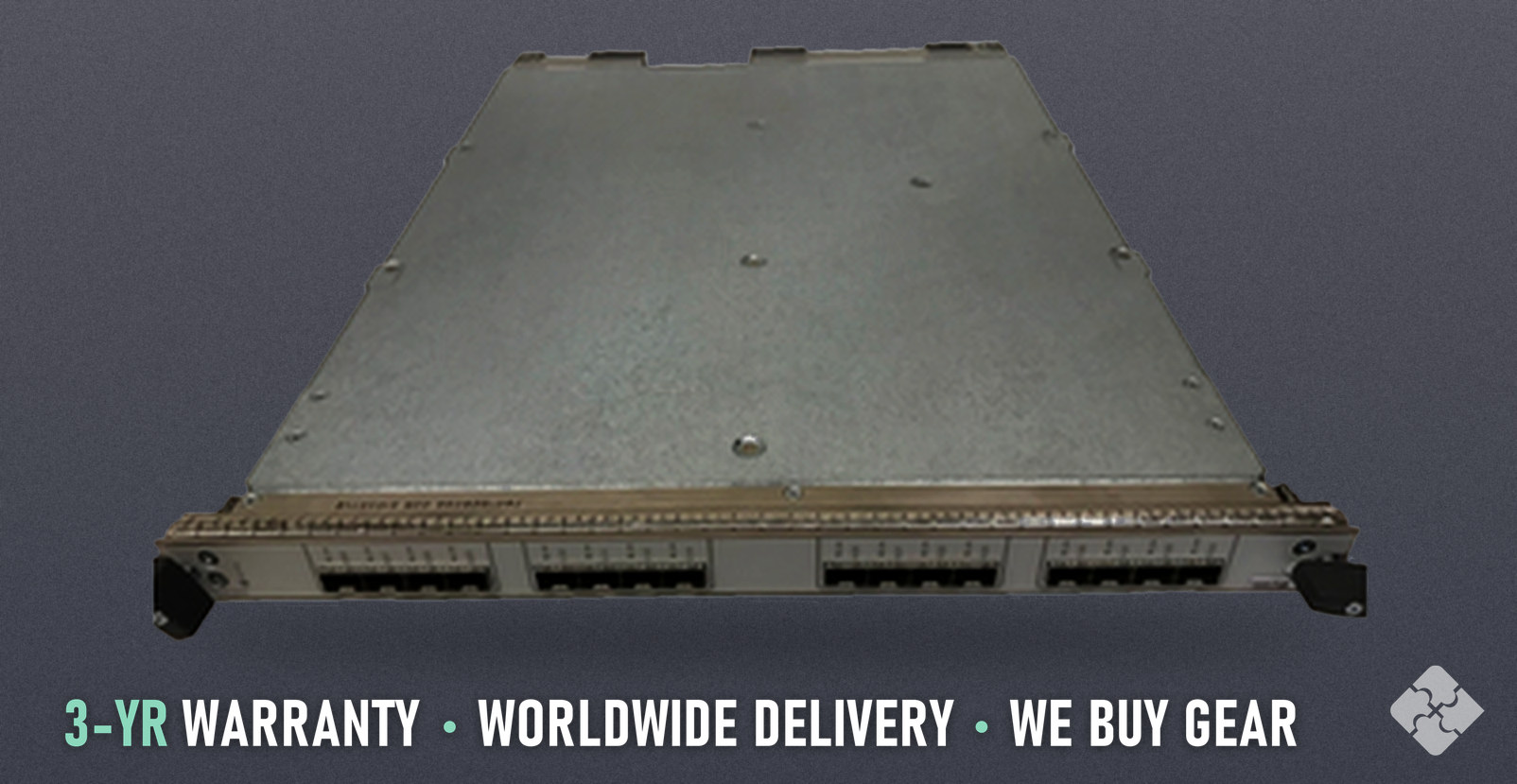

The Juniper MPC-3D-16XGE-SFPP-R-B is a line card with 16 ports of 10GbE SFP+. It is a module that installs into a host chassis and does not run on its own. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. It ships as the module only.

Model: MPC-3D-16XGE-SFPP-R-B
Network Ports: 16 × 10GbE
Connectors: SFP+
Type: Line Card
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Product line	MX Series MPC
Weight	18.35 lb (8.3 kg)

Juniper datasheet

Testing process

End of sale and support

Model	Announced	End of sale	End of support	Notice
Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards	2020-06-30	2021-06-30	2026-06-30	Juniper notice

Questions about the Juniper MX Line Cards family

Is the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards end of life?: Juniper ended the sale of the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards on June 30, 2021. Its support ended on June 30, 2026. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

How it differs from the MPC-3D-16XGE-SFPP

The MPC-3D-16XGE-SFPP-R-B and the MPC-3D-16XGE-SFPP share one entry in Juniper's MX Series interface module reference: both model numbers sit under the same description of a 16 port 10-Gigabit Ethernet MPC drawing 440 W and weighing 18.35 lb. Juniper names the card MPC 3D 16x10GE or MPC 3D 16x10GE EM in the CLI and lists nothing else that sets the two model numbers apart.

In Junos the ports on this card are named xe-fpc/pic/port: fpc is the router slot holding the card, pic is one of four groups of four ports numbered 0 through 3, and port is 0 through 3, so xe-1/3/3 is the last port on a card in slot 1. Each port has a bicolor enable LED that is green when the port is enabled and yellow when it is not working normally, and the card's OK/FAIL LED blinks green while it goes online or offline and turns red if the card has failed.

Sister listing: MPC-3D-16XGE-SFPP

Maker documents: Juniper MX Series interface module reference: MPC-3D-16XGE-SFPP

Juniper MPC-3D-16XGE-SFPP-R-B / MX Series Modular Port Concentrator, 16x 10GbE SFP+ ports, optics sold separately

WHAT'S INCLUDED

One (1) Juniper MPC-3D-16XGE-SFPP-R-B. Ships as the module only; it installs into a host chassis, so no rack kit, power cables or console cord are included.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MPC-3D-16XGE-SFPP-R-B was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
