MPC10E-15C-MRATE

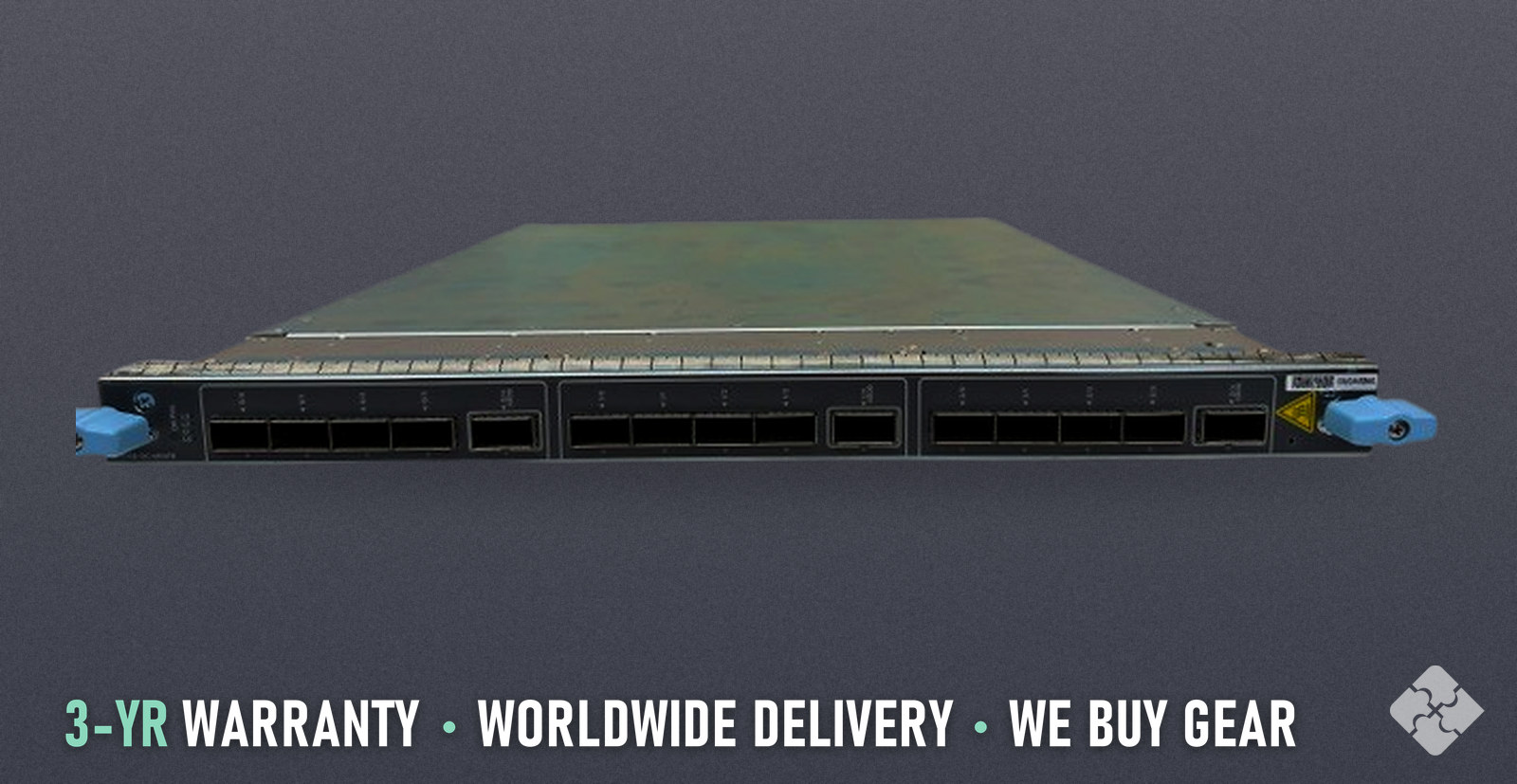

MPC10E-15C-MRATE Juniper line card, 12x 10/25/40/100GbE QSFP28 and 3x 400GbE QSFP56-DD
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
MPC10E-15C-MRATE, in stock, ships worldwide.
$26,725
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- MPC10E-15C-MRATE
- Network Ports
- 12 × 10/25/40/100GbE
- Connectors
- QSFP28, QSFP56-DD
- Type
- Line Card
- Condition
- Refurbished, tested & guaranteed
Questions and answers
- What ports does the MPC10E-15C-MRATE have?
- It has 12 × 10/25/40/100GbE; uplinks: 3x 400GbE QSFP56-DD. 15 data ports in all. Connectors: QSFP28, QSFP56-DD.
- What is the throughput of the MPC10E-15C-MRATE?
- Throughput is up to 1.5 Tbps on enhanced midplane, 800 Gbps on standard midplane.
- How much power does the MPC10E-15C-MRATE draw?
- Power draw: maximum 785 W.
- What are the size and weight of the MPC10E-15C-MRATE?
- Weight: 20.4 lb (9.25 Kg).
- What temperature range does the MPC10E-15C-MRATE run in?
- Operating temperature: 104° F / 40° C.
The Juniper MPC10E-15C-MRATE is a line card with 12 ports of 10/25/40/100GbE QSFP28 and 3 ports of 400GbE QSFP56-DD. It is a module that installs into a host chassis and does not run on its own. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. It ships as the module only.
Juniper MPC10E-15C-MRATE / 12x QSFP28 multi-rate ports (up to 100GbE), 3x QSFP56-DD multi-rate ports (up to 400GbE)
TECHNICAL DETAILS
Brand: Juniper Product line: Juniper MX Series MPC10E Uplinks: 3x 400GbE QSFP56-DD Total ports: 15 Fastest port: 400GbE Throughput: up to 1.5 Tbps on enhanced midplane, 800 Gbps on standard midplane Weight: 20.4 lb (9.25 Kg) Power draw (maximum): 785 W Operating temperature: 104° F / 40° C Operating altitude: 6000 ft (1824 m) CPU: 1.6-GHz Intel Broadwell 8-core CPU Memory (DRAM): two 16-GB ECC DDR4 DRAM modules Flash storage: 100-GB SATA SSD Jumbo frames: 256-16,000 bytes transit; 256-9500 bytes host-bound Warranty: 3 years, Townsend Networks Returns: 30 days
MAKER'S DOCUMENT
WHAT'S INCLUDED
One (1) Juniper MPC10E-15C-MRATE. Ships as the module only, it installs into a host chassis, so no rack kit, power cables or console cord are included.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed MPC10E-15C-MRATE was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
MPC10E-15C-MRATE has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
