Which way does the air flow on the MX480-PREMIUM2-AC?

The airflow of the MX480-PREMIUM2-AC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.

What are the size and weight of the MX480-PREMIUM2-AC?

The MX480-PREMIUM2-AC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm) and weighs 65.5 lb chassis with midplane, fan tray, air filter and cable management brackets.

How much rack space does the MX480-PREMIUM2-AC take?

The MX480-PREMIUM2-AC takes 8U of rack space.

What software does the MX480-PREMIUM2-AC run?

The MX480-PREMIUM2-AC runs Junos OS.

What temperature range does the MX480-PREMIUM2-AC run in?

The operating temperature range of the MX480-PREMIUM2-AC is 32 to 104°F (0 to 40°C).

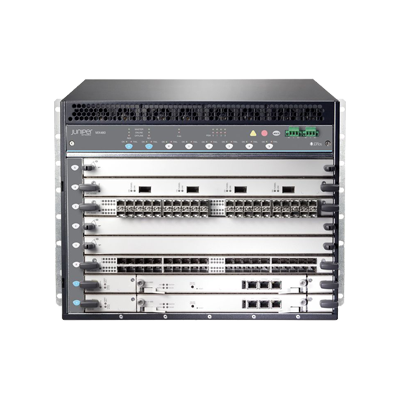

MX480-PREMIUM2-AC Juniper Chassis, AC Power, Used, MX480 Premium2 AC system

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MX480-PREMIUM2-AC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$3,465

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX480-PREMIUM2-AC is a chassis from the Juniper MX480 family with AC power. It runs Junos OS. Its data ports come from the cards installed in it. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

Other versions

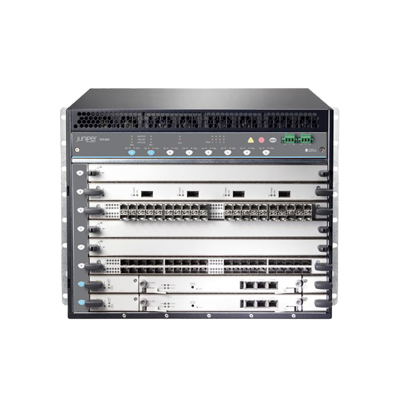

MX480-PREMIUM2-DC
Used, tested & guaranteedAirflow: Side to side (chassis); power supplies take air in at the front and exhaust at the rearIn stock
$3,500

Maker description: 8 slot MX480 premium 2 chassis with midplane, redundant RE, SCBEs, AC power
HOW IT DIFFERS: MX480-PREMIUM2-AC is Juniper's 8 slot MX480 premium 2 chassis with midplane, redundant RE, SCBEs and AC power. Its sister MX480-PREMIUM2-DC is the same premium 2 bundle with DC power, which Juniper rates at -40.5 to -72 VDC input.

Model: MX480-PREMIUM2-AC
Type: Chassis
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Family	MX480
Layer	Layer 3 (managed)
Operating system	Junos OS
Rack units	8U
Airflow	Side to side (chassis); power supplies take air in at the front and exhaust at the rear
Power input	AC
Dimensions	14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm)
Weight	65.5 lb chassis with midplane, fan tray, air filter and cable management brackets
Heat output	11,322 BTU/hour (3,318 W) maximum, AC power
Operating temperature	32 to 104°F (0 to 40°C)
Operating humidity	5% to 90%, noncondensing
Operating altitude	Up to 10,000 ft (3048 m) with no performance degradation
Switching capacity	Up to 5.76 Tbps aggregate switch fabric capacity, fully populated

Juniper datasheet

Testing process

Questions and answers

What power does the MX480-PREMIUM2-AC use?: The MX480-PREMIUM2-AC uses AC.
Which way does the air flow on the MX480-PREMIUM2-AC?: The airflow of the MX480-PREMIUM2-AC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.
What are the size and weight of the MX480-PREMIUM2-AC?: The MX480-PREMIUM2-AC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm) and weighs 65.5 lb chassis with midplane, fan tray, air filter and cable management brackets.
How much rack space does the MX480-PREMIUM2-AC take?: The MX480-PREMIUM2-AC takes 8U of rack space.
What software does the MX480-PREMIUM2-AC run?: The MX480-PREMIUM2-AC runs Junos OS.
What temperature range does the MX480-PREMIUM2-AC run in?: The operating temperature range of the MX480-PREMIUM2-AC is 32 to 104°F (0 to 40°C).

WHAT'S INCLUDED

One (1) Juniper MX480-PREMIUM2-AC.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MX480-PREMIUM2-AC was tested by Townsend Networks technicians before listing. The test process is on the testing process.
