What is the throughput of the MX480-PREMIUM2-DC?

The MX480-PREMIUM2-DC has a throughput of 5.76 Tbps system capacity.

Which way does the air flow on the MX480-PREMIUM2-DC?

The airflow of the MX480-PREMIUM2-DC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.

What are the size and weight of the MX480-PREMIUM2-DC?

The MX480-PREMIUM2-DC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm) and weighs 65.5 lb chassis with midplane, fan tray, air filter and cable management brackets.

How much rack space does the MX480-PREMIUM2-DC take?

The MX480-PREMIUM2-DC takes 8U of rack space.

What software does the MX480-PREMIUM2-DC run?

The MX480-PREMIUM2-DC runs Junos OS.

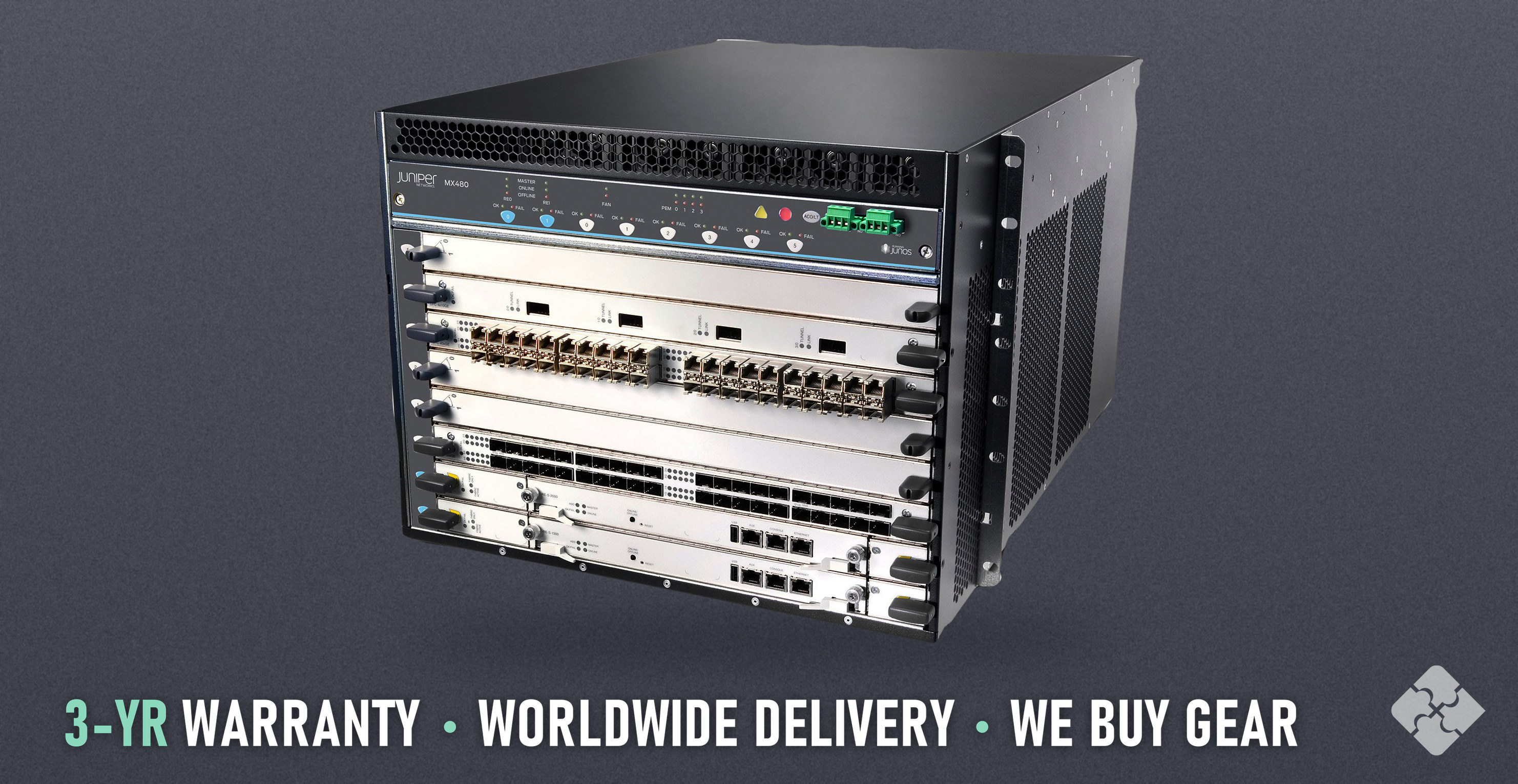

MX480-PREMIUM2-DC Juniper Router, DC Power, Used, MX480 3D Universal Edge Router, 6-slot chassis

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MX480-PREMIUM2-DC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$3,500

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX480-PREMIUM2-DC is a router from the Juniper MX480 family with DC power. It runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

Other versions

MX480-PREMIUM2-AC
Used, tested & guaranteedAirflow: Side to side (chassis); power supplies take air in at the front and exhaust at the rearIn stock
$3,465

Maker description: 8 slot MX480 premium 2 chassis with midplane, redundant RE, SCBEs, DC power
HOW IT DIFFERS: MX480-PREMIUM2-DC is Juniper's 8 slot MX480 premium 2 chassis with midplane, redundant RE, SCBEs and DC power. Its sister MX480-PREMIUM2-AC is the same premium 2 bundle with AC power.

Model: MX480-PREMIUM2-DC
Type: Router
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Family	MX480
Operating system	Junos OS
Rack units	8U
Airflow	Side to side (chassis); power supplies take air in at the front and exhaust at the rear
Power input	DC
Throughput	5.76 Tbps system capacity
Dimensions	14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm)
Weight	65.5 lb chassis with midplane, fan tray, air filter and cable management brackets
Input voltage	-40.5 to -72 VDC (nominal -48 VDC)
Heat output	9,632 BTU/hour (2,823 W) maximum, DC power
Operating temperature	32 to 104°F (0 to 40°C)
Operating humidity	5% to 90%, noncondensing
Operating altitude	Up to 10,000 ft (3048 m) with no performance degradation

Juniper datasheet

Testing process

Questions and answers

What power does the MX480-PREMIUM2-DC use?: The MX480-PREMIUM2-DC uses DC.
What is the throughput of the MX480-PREMIUM2-DC?: The MX480-PREMIUM2-DC has a throughput of 5.76 Tbps system capacity.
Which way does the air flow on the MX480-PREMIUM2-DC?: The airflow of the MX480-PREMIUM2-DC is side to side (chassis); power supplies take air in at the front and exhaust at the rear.
What are the size and weight of the MX480-PREMIUM2-DC?: The MX480-PREMIUM2-DC measures 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm) and weighs 65.5 lb chassis with midplane, fan tray, air filter and cable management brackets.
How much rack space does the MX480-PREMIUM2-DC take?: The MX480-PREMIUM2-DC takes 8U of rack space.
What software does the MX480-PREMIUM2-DC run?: The MX480-PREMIUM2-DC runs Junos OS.

WHAT'S INCLUDED

One (1) Juniper MX480-PREMIUM2-DC.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MX480-PREMIUM2-DC was tested by Townsend Networks technicians before listing. The test process is on the testing process.
