QFX5200-32C-AFI Juniper Switch, Back-to-Front, Used, 32x 100GbE QSFP28
- Condition
- Used, tested & guaranteed
- WARRANTY & RETURNS
- QFX5200-32C-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
QFX5200-32C-AFI price
$1,425
Free US ground shippingA firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
The Juniper QFX5200-32C-AFI is a switch from the Juniper QFX5200 family with 32 ports of 100GbE QSFP28, back-to-front airflow and AC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Other versions
- QFX5200-32C-AFO$1,295
Refurbished, tested & guaranteedAirflow: Front-to-back (AFO)In stock
- QFX5200-32C-DC-AFI$1,800
Used, tested & guaranteedAirflow: Back-to-front (AFI)In stock
- QFX5200-32C-DC-AFO$1,800
Used, tested & guaranteedAirflow: Front-to-back (AFO)In stock
- Compatible with
- Air In parts only: JPSU-850W-AC-AFI power supplies and QFX5200-32C-FANAFI fan modules. The same AC supply and fan module serve the QFX5200-32C-L. Fans and power supplies of airflow in and airflow out cannot be mixed in a chassis, and to turn an AIR IN switch into an AIR OUT one, Juniper says to replace all of the fans and power supplies at one time.
- HOW IT DIFFERS
- QFX5200-32C-AFI has back-to-front airflow; its sister QFX5200-32C-AFO has front-to-back airflow. QFX5200-32C-AFI has AC power; its sister QFX5200-32C-DC-AFI has DC power. QFX5200-32C-AFI has back-to-front airflow and AC power; its sister QFX5200-32C-DC-AFO has front-to-back airflow and DC power.
- Model
- QFX5200-32C-AFI
- Network Ports
- 32 × 100GbE
- Connectors
- QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | QFX5200 |
| Management ports | 2 SFP and 1 RJ-45 10/100/1000 BASE-T for management (only two ports can be used) |
| Layer | Layer 3 (managed) |
| Operating system | Junos OS |
| Rack units | 1 U |
| Airflow | Back-to-front (AFI) |
| Power input | AC |
| Dimensions | 17.36 x 1.72 x 20.48 in. (44.09 x 4.37 x 52.02 cm), W x H x D |
| Weight | 23.8 lb (10.8 Kg) |
| Fans | Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw |
| Power supplies | Redundant (1+1) hot-pluggable 850 W AC/DC power supplies |
| Input voltage | 110-240 V single phase AC power |
| Power draw (typical) | 184 W AC |
| Power draw (maximum) | 312 W AC |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating humidity | 5 to 90% (noncondensing) |
| Operating altitude | Up to 10000 ft. (3048 m) |
| CPU | Intel Quad Core Ivy Bridge 1.8 GHz CPU |
| Memory (DRAM) | 16 GB SDRAM |
| Flash storage | 64 GB SSD |
| Switching capacity | Up to 6.4 Tbps (bi-directional) |
| Forwarding rate | Up to 3.2 Bpps |
| MAC addresses | 136,000 |
| IPv4 routes | 128,000 prefixes; 104,000 host routes (unicast) |
| IPv6 routes | 98,000 prefixes; 52,000 host routes (unicast) |
| VLANs | 4096 VLAN IDs |
| Jumbo frames | 9216 bytes |
| Packet buffer | 16 MB |
| Console port | 1 RS-232 console port |
| USB port | 1 USB 2.0 port |
End of sale and support
| Model | Announced | End of sale | Notice |
|---|---|---|---|
| Juniper QFX5200-32C | Juniper notice |
Juniper lists the QFX5200-32C part numbers under a SKU transformation notice for the QFX5210 and QFX5200 and gives no end of support date for them.
Questions and answers
- Is the Juniper QFX5200-32C end of life?
- Juniper ended the sale of the Juniper QFX5200-32C on October 4, 2021. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
How the QFX5200-32C-AFI differs
Here is how Juniper's documents set the QFX5200-32C-AFI apart from the QFX5200-32C-DC-AFI. Input voltage: 110-240 V single phase AC power on the QFX5200-32C-AFI, against -36 to -72 V DC power on the QFX5200-32C-DC-AFI. Compatible parts for the QFX5200-32C-DC-AFI: Air In, DC parts: JPSU-850W-DC-AFI power supplies and QFX5200-32C-FANAFI fan modules. In a data center Juniper places the switch with the AIR IN labels on its components next to the cold aisle. Do not fit an AC supply or an AIR OUT part in this chassis.
Both are listed with the same rack units: 1 U. Both are listed with the same weight: 23.8 lb (10.8 Kg). Both are listed with the same dimensions (height x width x depth): 17.36 x 1.72 x 20.48 in. (44.09 x 4.37 x 52.02 cm), W x H x D.
Maker documents: QFX5200 Switch Datasheet | HPE Juniper Networking UK&I, Juniper QFX5200 Hardware Guide

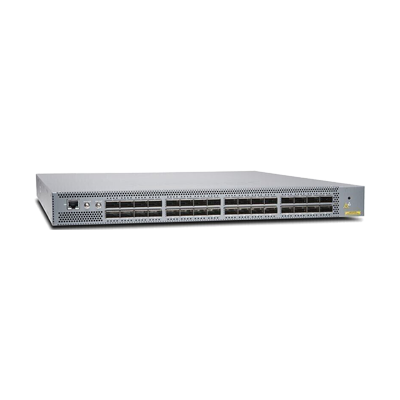

QFX5200-32C-AFI 32x 100GB QSFP28 Back-to-Front Airflow Switch
WHAT'S INCLUDED
One (1) Juniper QFX5200-32C-AFI. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
QFX5200-32C-AFI was tested by Townsend Networks technicians before listing. The test process is on the testing process.
