QFX5100-48T-DC-AFI Juniper Switch, Back-to-Front, Used, 48x 1/10GbE RJ45 and 6x 40GbE QSFP+
- Condition
- Used, tested & guaranteed
- WARRANTY & RETURNS
- QFX5100-48T-DC-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
QFX5100-48T-DC-AFI price
$1,360
Free US ground shippingA firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

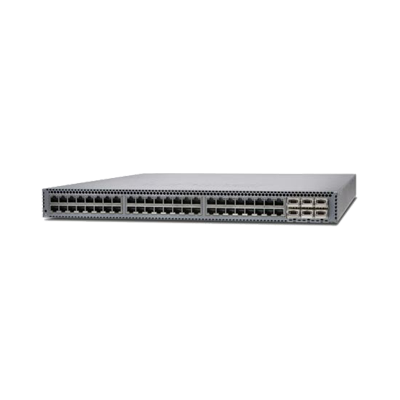

The Juniper QFX5100-48T-DC-AFI is a switch from the Juniper QFX5100 family with 48 ports of 1/10GbE RJ45, 6 ports of 40GbE QSFP+, back-to-front airflow and DC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Other versions
- QFX5100-48T-AFI$855
Refurbished, tested & guaranteedAirflow: Back-to-front (AFI)In stock
- QFX5100-48T-DC-AFO$1,480
Used, tested & guaranteedAirflow: Front-to-back (AFO)In stock
- Compatible with
- Air In (FRU to port) parts only: the DC power supply JPSU-650W-DC-AFI and the fan module QFX5100-FAN-AFI, whose AIR IN label and Juniper Azure Blue color mark air that enters at the FRU end. QFX5100-48T-DC-AFI takes DC supplies only: Juniper says not to mix AC and DC supplies in the same chassis.
- HOW IT DIFFERS
- QFX5100-48T-DC-AFI is the DC powered, back-to-front airflow 48T: Juniper's hardware guide lists it as 48 10GBASE-T and 6 QSFP+ with DC supplies, Air In (FRUs to ports) and 3 management ports, on the -36 to -72 V DC input. Juniper lists JPSU-650W-DC-AFI as the DC 650W PSU for back-to-front airflow, and says the DC power supply in 1 U QFX5100 models is 650 W with dual feeds for power resiliency. Its sister QFX5100-48T-DC-AFO has the same ports on JPSU-650W-DC-AFO supplies with front-to-back airflow, and QFX5100-48T-AFI is the AC version of this airflow.
- Model
- QFX5100-48T-DC-AFI
- Network Ports
- 48 × 1/10GbE
- Connectors
- RJ45, QSFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | QFX5100 |
| Uplinks | 6x 40GbE QSFP+ |
| Total ports | 54 |
| Fastest port | 40GbE |
| Management ports | 2: 1 RJ-45 and 1 SFP |
| PoE | Non-PoE |
| Layer | Layer 3 (managed) |
| Operating system | Junos OS |
| Rack units | 1 U |
| Airflow | Back-to-front (AFI) |
| Power input | DC |
| Throughput | 1.44 Tbps / 1.08 Bpps |
| Dimensions | 1.72 x 17.36 x 21.47 in (4.37 x 44.09 x 54.54 cm) |
| Weight | 24.8 lb (11.2 kg) |
| Mounting | four post mounting for 19-in server rack or datacom rack |
| Fans | Redundant and hot-pluggable fan modules |
| Power supplies | Dual redundant and hot-pluggable |
| Input voltage | -36 to -72 V DC power |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating humidity | 5% to 90% (noncondensing) |
| Operating altitude | up to 2,000 (610 m) |
| CPU | 1.5 GHz dual-core Intel CPU |
| Memory (DRAM) | 8 GB |
| Flash storage | 32 GB SSD storage |
| MAC addresses | 288,000 |
| IPv4 routes | 128,000 prefixes; 208,000 host routes |
| IPv6 routes | 64,000 prefixes |
| VLANs | 4,096 VLAN IDs |
| Jumbo frames | 9,216 bytes |
| Packet buffer | 12 MB shared |
| Latency | as low as 550 ns |
| Stacking | Virtual Chassis, up to 10 interconnected switches |
| Certifications | FCC 47CFR Part 15 Class A (2009); EN 55022 Class A (2006); UL 60950-1 (2nd Ed.) |
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper QFX5100 (24Q, 48S, 48T) | Juniper notice |
Questions about the Juniper QFX5100 family
- What ports does the QFX5100-48T-DC-AFI have?
- The QFX5100-48T-DC-AFI has 48 × 1/10GbE, with uplinks of 6x 40GbE QSFP+ and 54 data ports in all.
- What is the throughput of the QFX5100-48T-DC-AFI?
- The QFX5100-48T-DC-AFI has a throughput of 1.44 Tbps / 1.08 Bpps.
- Which way does the air flow on the QFX5100-48T-DC-AFI?
- The airflow of the QFX5100-48T-DC-AFI is back-to-front (AFI).
- What power does the QFX5100-48T-DC-AFI use?
- The QFX5100-48T-DC-AFI uses DC.
- What are the size and weight of the QFX5100-48T-DC-AFI?
- The QFX5100-48T-DC-AFI measures 1.72 x 17.36 x 21.47 in (4.37 x 44.09 x 54.54 cm) and weighs 24.8 lb (11.2 kg).
- How much rack space does the QFX5100-48T-DC-AFI take?
- The QFX5100-48T-DC-AFI takes 1 U of rack space.
- Is the Juniper QFX5100 end of life?
- Yes. Juniper's QFX Series hardware milestones page gives two sets of dates for the models on this page. QFX5100-48S, 48T and 24Q models: end of life announced 30 April 2021, last order 1 July 2022, end of support 1 July 2027. QFX5100-96S models: announced 25 May 2022, last order 31 December 2022, end of support 31 December 2027.
- What is the difference between AFO and AFI on a QFX5100?
- Airflow direction. Air Out (AFO) draws air in at the port side and exhausts it past the power supplies and fans; Air In (AFI) runs the other way, from the power supply and fan side to the ports. Juniper notes that older switches called these front-to-back and back-to-front. Pick the direction that matches your hot and cold aisles; mixing directions in one chassis is not supported.
- What is the difference between the QFX5100-48S and the QFX5100-48T?
- The 48S has 48 SFP+ ports for 10GbE optics or direct attach cables. The 48T has 48 10GBASE-T copper RJ-45 ports. Both have six 40GbE QSFP+ ports.
- Can QFX5100 switches be stacked or built into a fabric?
- Yes. Up to ten QFX5100 switches form a QFX Virtual Chassis managed as one device. A Virtual Chassis Fabric scales to 20 devices in a spine and leaf design, with up to four QFX5100 spines, and EX4300 switches can join as leaf devices.
- What condition and warranty come with a Juniper QFX5100 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
How the QFX5100-48T-DC-AFI differs
Juniper's QFX5100 hardware guide lists the QFX5100-48T-DC-AFI in its product number table with 48 10GBASE-T and 6 QSFP+ transceiver ports, DC power, 3 management ports and Air In (FRUs to ports) airflow; the QFX5100-48T-DC-AFO in the next row differs only in that last column, Air Out (ports to FRUs). Air In means air comes in at the end of the switch with the fans and leaves at the end with the ports, which older Juniper documents call back-to-front. The guide says to place the switch so the AIR IN labels on its parts sit next to the cold aisle.
Its fan modules are the QFX5100-FAN-AFI, labeled AIR IN and colored Juniper Azure Blue, and only power supplies with AIR IN labels go in a switch whose fan modules carry that label; the system raises an alarm when a supply of a different airflow or wattage is inserted. The DC power supply in 1 U QFX5100 models is 650 W with dual feeds for power resiliency, hot-removable and hot-insertable, and Juniper asks for a facility DC source able to supply at least 7 A at -48 VDC for the 1 U models.
Maker documents: Juniper QFX5100 Switch Hardware Guide

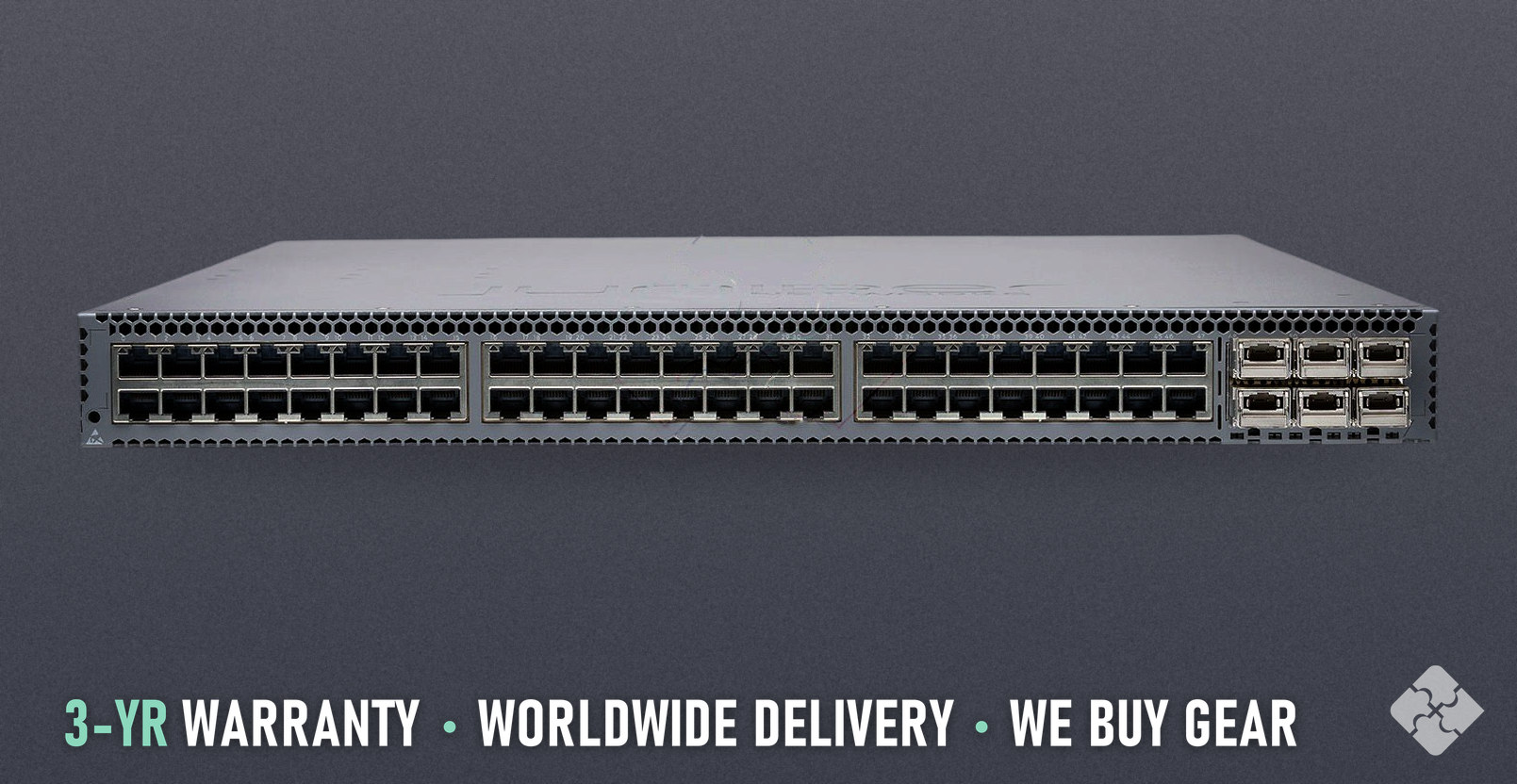

QFX5100-48T-DC-AFI 48x MultiGB RJ45 6x 40GB QSFP+ B-F (DC) Switch
WHAT'S INCLUDED
One (1) Juniper QFX5100-48T-DC-AFI. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
QFX5100-48T-DC-AFI was tested by Townsend Networks technicians before listing. The test process is on the testing process.
