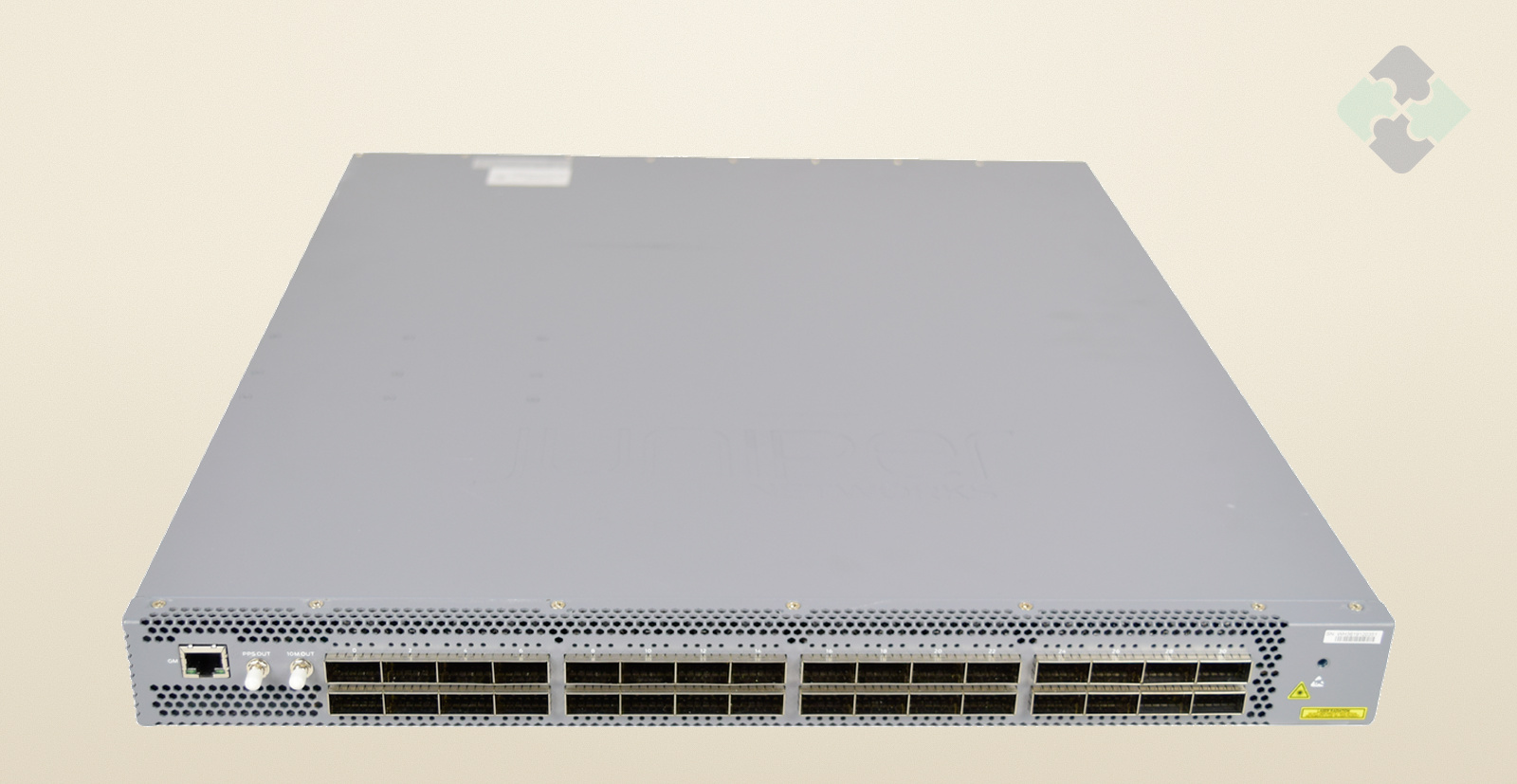

QFX5200-32C-DC-AFO Juniper Switch, Front-to-Back, Used, 32x 100GbE QSFP28
- Condition
- Used, tested & guaranteed
- WARRANTY & RETURNS
- QFX5200-32C-DC-AFO has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
QFX5200-32C-DC-AFO price
$1,800
Free US ground shippingA firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
The Juniper QFX5200-32C-DC-AFO is a switch from the Juniper QFX5200 family with 32 ports of 100GbE QSFP28, front-to-back airflow and DC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Other versions
- QFX5200-32C-AFI$1,425
Used, tested & guaranteedAirflow: Back-to-front (AFI)In stock
- QFX5200-32C-AFO$1,295
Refurbished, tested & guaranteedAirflow: Front-to-back (AFO)In stock

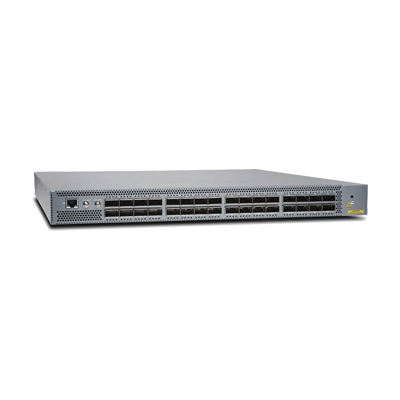

- QFX5200-32C-DC-AFI$1,800
Used, tested & guaranteedAirflow: Back-to-front (AFI)In stock
- Compatible with
- Air Out, DC parts: JPSU-850W-DC-AFO power supplies and QFX5200-32C-FANAFO fan modules. Juniper places a switch with AIR OUT labels on its components next to the hot aisle. Airflow in and airflow out parts cannot share a chassis, and converting to AIR IN means replacing all of the fans and power supplies at one time.
- HOW IT DIFFERS
- QFX5200-32C-DC-AFO is the DC powered, front-to-back airflow QFX5200-32C: air comes in through the port end and leaves at the fan end. Juniper lists its power supplies as JPSU-850W-DC-AFO, the DC AFO 850W PSU, and its fan modules as QFX5200-32C-FANAFO, labeled AIR OUT in Juniper Gold. It takes the same -40 VDC through -72 VDC DC input as QFX5200-32C-DC-AFI, its Air In sister, and the hardware guide gives the QFX5200-32C 200 W of typical and 312 W of maximum power consumption.
- Model
- QFX5200-32C-DC-AFO
- Network Ports
- 32 × 100GbE
- Connectors
- QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | QFX5200 |
| Management ports | 2 SFP and 1 RJ-45 10/100/1000 BASE-T for management (only two ports can be used) |
| Layer | Layer 3 (managed) |
| Operating system | Junos OS |
| Rack units | 1 U |
| Airflow | Front-to-back (AFO) |
| Power input | DC |
| Dimensions | 17.36 x 1.72 x 20.48 in. (44.09 x 4.37 x 52.02 cm), W x H x D |
| Weight | 23.8 lb (10.8 Kg) |
| Fans | Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw |
| Power supplies | Redundant (1+1) hot-pluggable 850 W AC/DC power supplies |
| Input voltage | -36 to -72 V DC power |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating humidity | 5 to 90% (noncondensing) |
| Operating altitude | Up to 10000 ft. (3048 m) |
| CPU | Intel Quad Core Ivy Bridge 1.8 GHz CPU |
| Memory (DRAM) | 16 GB SDRAM |
| Flash storage | 64 GB SSD |
| Switching capacity | Up to 6.4 Tbps (bi-directional) |
| Forwarding rate | Up to 3.2 Bpps |
| MAC addresses | 136,000 |
| IPv4 routes | 128,000 prefixes; 104,000 host routes (unicast) |
| IPv6 routes | 98,000 prefixes; 52,000 host routes (unicast) |
| VLANs | 4096 VLAN IDs |
| Jumbo frames | 9216 bytes |
| Packet buffer | 16 MB |
| Console port | 1 RS-232 console port |
| USB port | 1 USB 2.0 port |
End of sale and support
| Model | Announced | End of sale | Notice |
|---|---|---|---|
| Juniper QFX5200-32C | Juniper notice |
Juniper lists the QFX5200-32C part numbers under a SKU transformation notice for the QFX5210 and QFX5200 and gives no end of support date for them.
Questions and answers
- Is the Juniper QFX5200-32C end of life?
- Juniper ended the sale of the Juniper QFX5200-32C on October 4, 2021. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
How the QFX5200-32C-DC-AFO differs
Here is how Juniper's documents set the QFX5200-32C-DC-AFO apart from the QFX5200-32C-DC-AFI. Compatible parts for the QFX5200-32C-DC-AFI: Air In, DC parts: JPSU-850W-DC-AFI power supplies and QFX5200-32C-FANAFI fan modules. In a data center Juniper places the switch with the AIR IN labels on its components next to the cold aisle. Do not fit an AC supply or an AIR OUT part in this chassis.
Both are listed with the same rack units: 1 U. Both are listed with the same weight: 23.8 lb (10.8 Kg). Both are listed with the same dimensions (height x width x depth): 17.36 x 1.72 x 20.48 in. (44.09 x 4.37 x 52.02 cm), W x H x D.
Maker documents: Juniper QFX5200 Hardware Guide, QFX5200 Switch Datasheet | HPE Juniper Networking UK&I

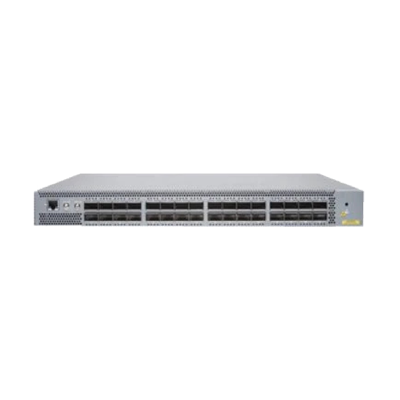

QFX5200-32C-DC-AFO 32x 100G QSFP28 Front-to-Back Airflow (DC) Switch
WHAT'S INCLUDED
One (1) Juniper QFX5200-32C-DC-AFO. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
QFX5200-32C-DC-AFO was tested by Townsend Networks technicians before listing. The test process is on the testing process.
