What ports does the BR-VDX6940-64S-AC-F have?

It has 64 × 10GbE. Connectors: SFP+, QSFP+.

What is the throughput of the BR-VDX6940-64S-AC-F?

Throughput is 2.88 Tbps switching capacity, up to 112,000 MAC entries.

Is the Brocade VDX 6940 end of life?

Brocade ended the sale of the Brocade VDX 6940 on February 1, 2022. Its support ends on February 1, 2027. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

What does Brocade name as the replacement for the Brocade VDX 6940?

Brocade's notice names Extreme 8520, 8720.

BR-VDX6940-64S-AC-F

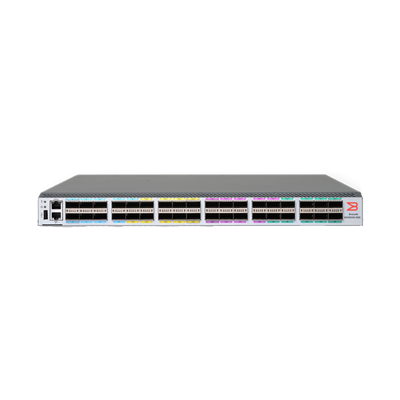

BR-VDX6940-64S-AC-F Brocade switch, 64x 10GbE SFP+ (+32 by licence)

Name: BR-VDX6940-64S-AC-F Brocade switch, 64x 10GbE SFP+ (+32 by licence)
Brand: Brocade
SKU: BR-VDX6940-64S-AC-F
Price: 3955.00 USD
Availability: InStock

Refurbished, tested & guaranteedIn stock

Condition: Refurbished. Tested & Guaranteed

BR-VDX6940-64S-AC-F, in stock, ships worldwide.

$3,955

Orders placed by 12pm ship the same day.

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: BR-VDX6940-64S-AC-F
Network Ports: 64 × 10GbE
Connectors: SFP+, QSFP+
Type: Switch
Condition: Refurbished, tested & guaranteed

Warranty terms·Testing process

End of sale and support

Model	Announced	End of sale	End of support	Replacement	Notice
Brocade VDX 6940	2021-07-29	2022-02-01	2027-02-01	Extreme 8520, 8720	Brocade notice

Questions about the Brocade VDX 6940 family

What ports does the BR-VDX6940-64S-AC-F have?: It has 64 × 10GbE. Connectors: SFP+, QSFP+.
What is the throughput of the BR-VDX6940-64S-AC-F?: Throughput is 2.88 Tbps switching capacity, up to 112,000 MAC entries.
Which way does the air flow on the BR-VDX6940-64S-AC-F?: Airflow is front-to-back.
What power does the BR-VDX6940-64S-AC-F use?: It uses AC.
How much rack space does the BR-VDX6940-64S-AC-F take?: It takes 2U of rack space.
Is the Brocade VDX 6940 end of life?: Brocade ended the sale of the Brocade VDX 6940 on February 1, 2022. Its support ends on February 1, 2027. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
What does Brocade name as the replacement for the Brocade VDX 6940?: Brocade's notice names Extreme 8520, 8720.

The Brocade BR-VDX6940-64S-AC-F is a switch with 64 ports of 10GbE SFP+ (+32 by licence). It has front-to-back airflow and AC power. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Brocade BR-VDX6940-64S-AC-F / VDX 6940 Switch, 64x 10GbE SFP+ active (expandable to 96x10GbE via POD license) + 12x 40GbE QSFP+ (inactive until POD license applied), AC PSU, front-to-back airflow

TECHNICAL DETAILS

Brand: Brocade Product line: VDX 6940 Rack units: 2U Airflow: Front-to-back Power input: AC Throughput: 2.88 Tbps switching capacity, up to 112,000 MAC entries Warranty: 3 years, Townsend Networks Returns: 30 days

MAKER'S DOCUMENT

https://documentation.extremenetworks.com/networkos/HW/vdx6940-technicalspecifications.pdf

WHAT'S INCLUDED

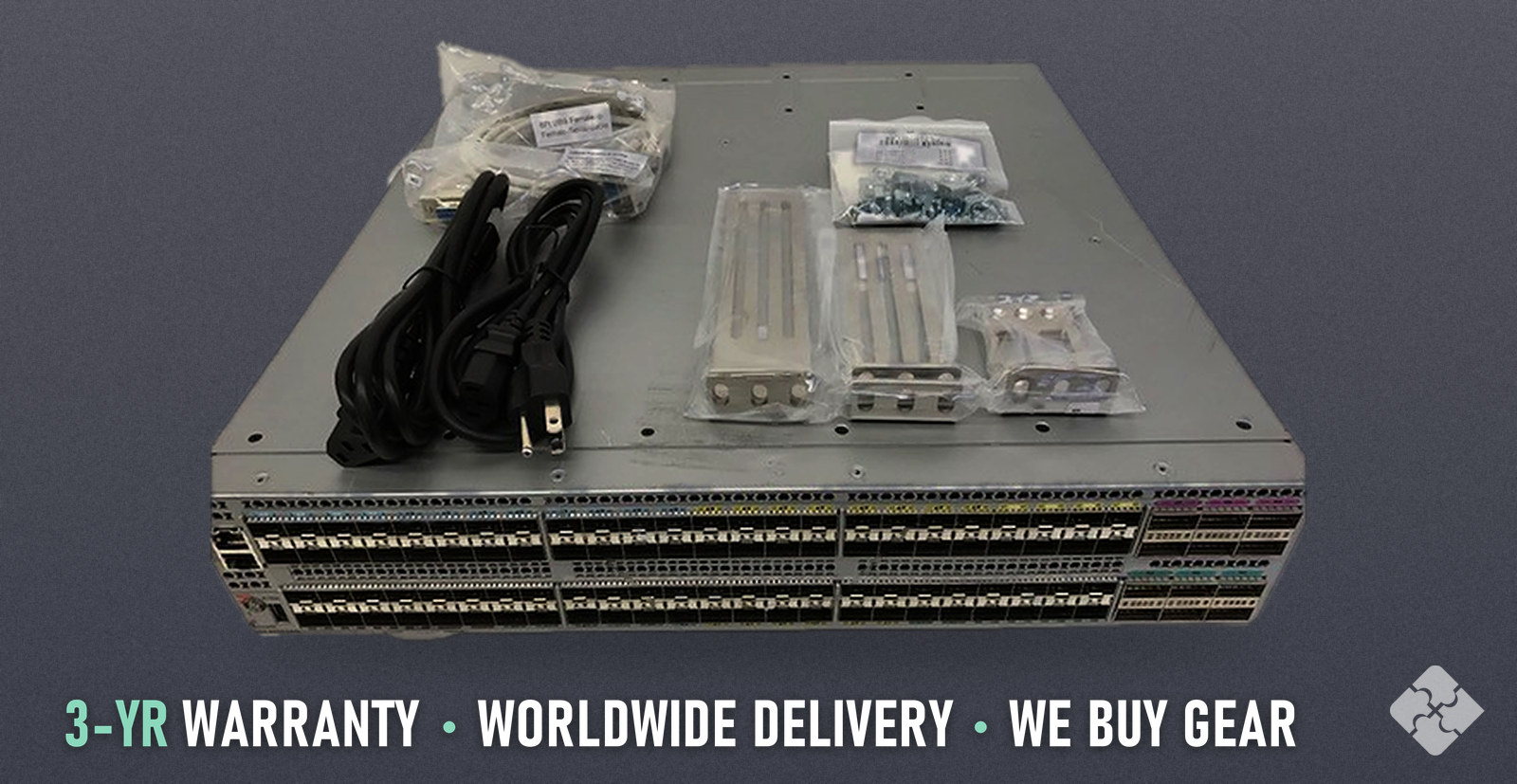

One (1) Brocade BR-VDX6940-64S-AC-F. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed BR-VDX6940-64S-AC-F was tested by our technicians before listing. How we test is on /testing-process.

WARRANTY & RETURNS

BR-VDX6940-64S-AC-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
