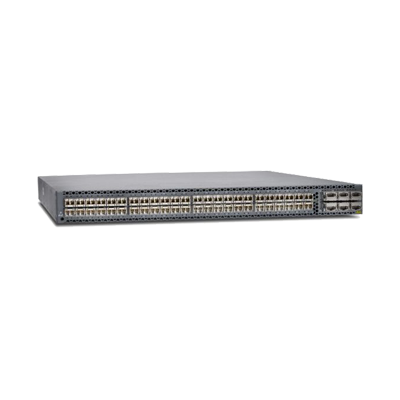

QFX5100-48S-AFI Juniper Switch, Back-to-Front, Refurbished, 48x 1/10GbE SFP+ and 6x 40GbE QSFP+
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- QFX5100-48S-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
QFX5100-48S-AFI price
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

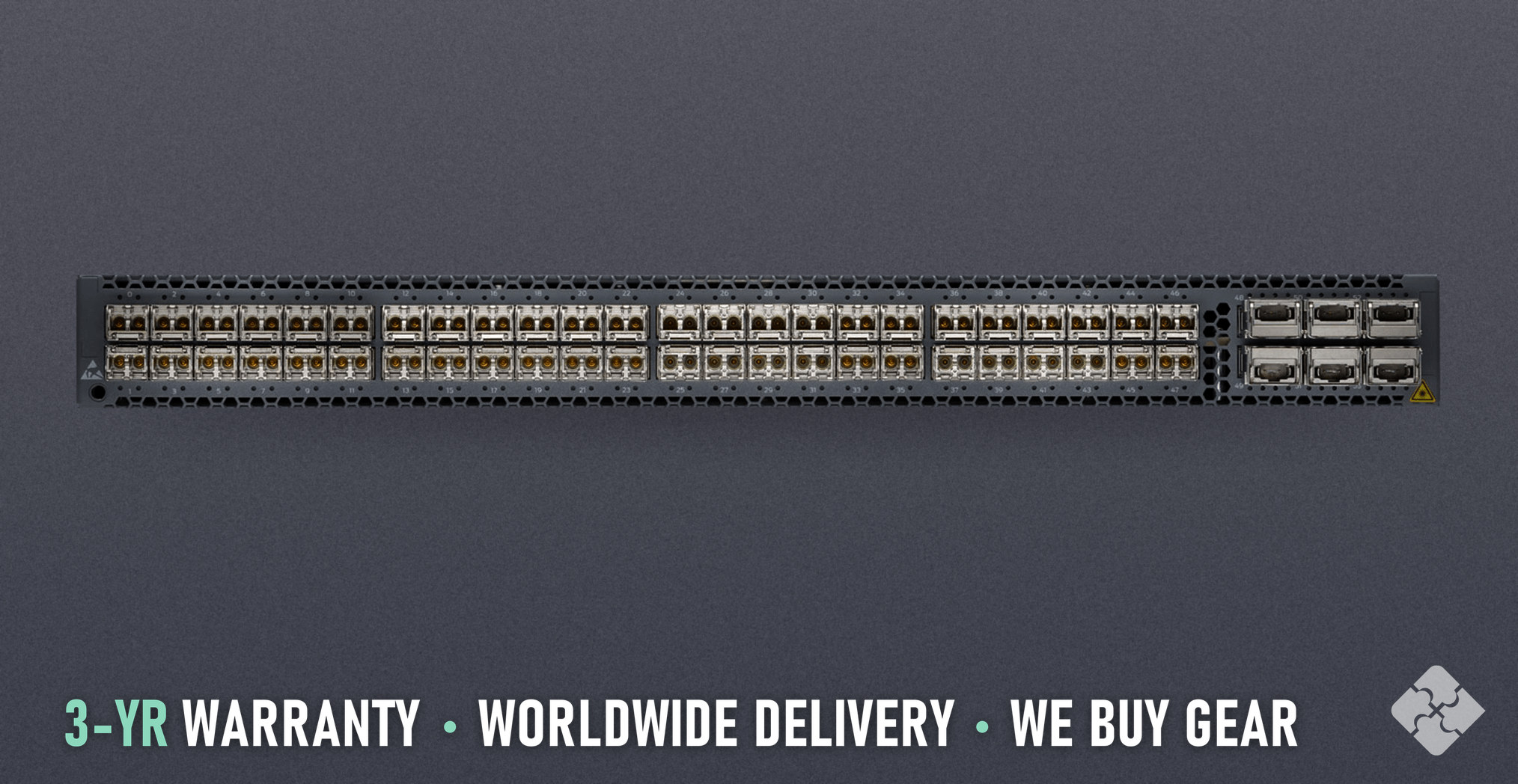

The Juniper QFX5100-48S-AFI is a switch from the Juniper QFX5100 family with 48 ports of 1/10GbE SFP+, 6 ports of 40GbE QSFP+, back-to-front airflow and AC power. It is a Layer 3 managed platform that runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Other versions
- QFX5100-48S-AFO$515
Used, tested & guaranteedAirflow: Front-to-back (AFO)In stock
- Compatible with
- Air In parts: the AC power supply JPSU-650W-AC-AFI, which has a blue handle (QFXC01-PWRACI-650A is the older version for the 48S), and the fan module QFX5100-FAN-AFI, labeled AIR IN and colored Juniper Azure Blue. Airflow in and airflow out fans and power supplies cannot be mixed in one chassis; converting an AIR IN switch to AIR OUT means replacing all the fans and power supplies at one time.
- HOW IT DIFFERS
- QFX5100-48S-AFI is the back-to-front airflow version of the 48 port 10GbE QFX5100 on AC power: Juniper's hardware guide lists it as 48 SFP+ and 6 QSFP+ with AC supplies and Air In (FRUs to ports), and 2 management ports. Juniper lists JPSU-650W-AC-AFI as the AC 650W PSU for that airflow. Its sister QFX5100-48S-AFO moves air front to back on JPSU-650W-AC-AFO supplies, and QFX5100-48S-3AFO is listed with 3 management ports. The datasheet gives the QFX5100-48S-AFO/AFI 150 W of power consumption and the 48S a weight of 21.8 lb.
- Model
- QFX5100-48S-AFI
- Network Ports
- 48 × 1/10GbE
- Connectors
- SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | QFX5100 |
| Uplinks | 6x 40GbE QSFP+ |
| Total ports | 54 |
| Fastest port | 40GbE |
| Layer | Layer 3 (managed) |
| Operating system | Junos OS |
| Rack units | 1 U |
| Airflow | Back-to-front (AFI) |
| Power input | AC |
| Throughput | 1.44 Tbps switching capacity, 1.07 Bpps forwarding |
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper QFX5100 (24Q, 48S, 48T) | Juniper notice |
Questions about the Juniper QFX5100 family
- What ports does the QFX5100-48S-AFI have?
- The QFX5100-48S-AFI has 48 × 1/10GbE, with uplinks of 6x 40GbE QSFP+ and 54 data ports in all.
- What is the throughput of the QFX5100-48S-AFI?
- The QFX5100-48S-AFI has a throughput of 1.44 Tbps switching capacity, 1.07 Bpps forwarding.
- Which way does the air flow on the QFX5100-48S-AFI?
- The airflow of the QFX5100-48S-AFI is back-to-front (AFI).
- What power does the QFX5100-48S-AFI use?
- The QFX5100-48S-AFI uses AC.
- How much rack space does the QFX5100-48S-AFI take?
- The QFX5100-48S-AFI takes 1 U of rack space.
- Is the Juniper QFX5100 end of life?
- Yes. Juniper's QFX Series hardware milestones page gives two sets of dates for the models on this page. QFX5100-48S, 48T and 24Q models: end of life announced 30 April 2021, last order 1 July 2022, end of support 1 July 2027. QFX5100-96S models: announced 25 May 2022, last order 31 December 2022, end of support 31 December 2027.
- What is the difference between AFO and AFI on a QFX5100?
- Airflow direction. Air Out (AFO) draws air in at the port side and exhausts it past the power supplies and fans; Air In (AFI) runs the other way, from the power supply and fan side to the ports. Juniper notes that older switches called these front-to-back and back-to-front. Pick the direction that matches your hot and cold aisles; mixing directions in one chassis is not supported.
- What is the difference between the QFX5100-48S and the QFX5100-48T?
- The 48S has 48 SFP+ ports for 10GbE optics or direct attach cables. The 48T has 48 10GBASE-T copper RJ-45 ports. Both have six 40GbE QSFP+ ports.
- Can QFX5100 switches be stacked or built into a fabric?
- Yes. Up to ten QFX5100 switches form a QFX Virtual Chassis managed as one device. A Virtual Chassis Fabric scales to 20 devices in a spine and leaf design, with up to four QFX5100 spines, and EX4300 switches can join as leaf devices.
- What condition and warranty come with a Juniper QFX5100 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
How the QFX5100-48S-AFI differs
Here is how Juniper's documents set the QFX5100-48S-AFI apart from the QFX5100-48S-AFO. Compatible parts for the QFX5100-48S-AFO: Air Out parts: the AC power supply JPSU-650W-AC-AFO, which has a gold handle (QFXC01-PWRACO-650A is the older version for the 48S), and the fan module QFX5100-FAN-AFO, labeled AIR OUT and colored Juniper Gold. Airflow in and airflow out fans and power supplies cannot be mixed in one chassis; converting an AIR OUT switch to AIR IN means replacing all the fans and power supplies at one time.
Both are listed with the same rack units: 1 U. Both are listed with the same switching capacity: 1.44 Tbps. Both are listed with the same forwarding rate: 1.08 Bpps.
Maker documents: Juniper QFX5100 Ethernet Switch Datasheet, QFX5100 Series 10/25/40/100GbE Switches | HPE Juniper Networking US
QFX5100-48S-AFI 48x 10GB SFP+ 6x 40GB QSFP+ Back-to-Front Air Switch
WHAT'S INCLUDED
One (1) Juniper QFX5100-48S-AFI. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
QFX5100-48S-AFI was tested by Townsend Networks technicians before listing. The test process is on the testing process.
Selling your Juniper QFX5100-48S-AFI? We buy used network gear.
Questions about the QFX5100-48S-AFI? Call 415-626-4231 or email sales@townsendnetworks.com.
