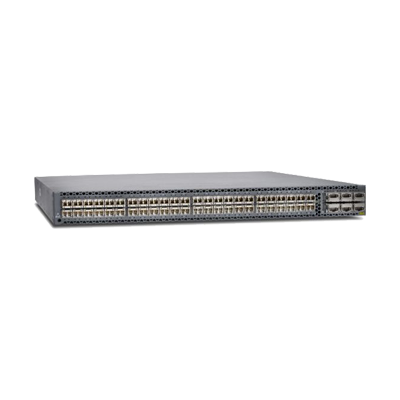

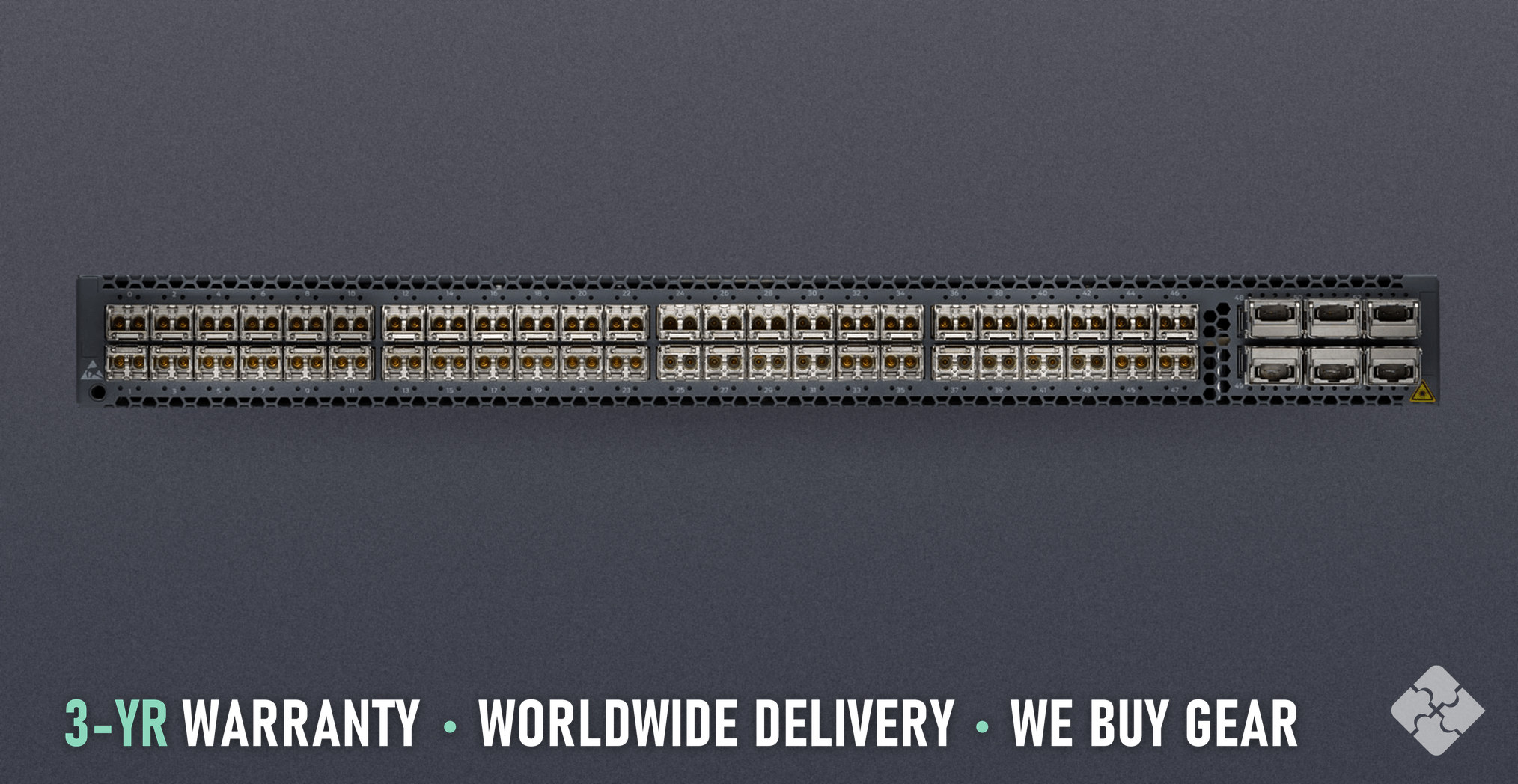

QFX5100-48S-AFO Juniper Switch, Front-to-Back, Used, 48x 1/10GbE SFP+ and 6x 40GbE QSFP+

QFX5100-48S-AFO Juniper Switch, Front-to-Back, Used, 48x 1/10GbE SFP+ and 6x 40GbE QSFP+

Condition
Used, tested & guaranteed
WARRANTY & RETURNS
QFX5100-48S-AFO has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

QFX5100-48S-AFO price

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper QFX5100-48S-AFO is a switch from the Juniper QFX5100 family with 48 ports of 1/10GbE SFP+, 6 ports of 40GbE QSFP+, front-to-back airflow and AC power. It is a Layer 3 managed platform that runs Junos OS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Other versions

  • QFX5100-48S-AFI

    Refurbished, tested & guaranteedAirflow: Back-to-front (AFI)In stock

    $410
Compatible with
Air Out parts: the AC power supply JPSU-650W-AC-AFO, which has a gold handle (QFXC01-PWRACO-650A is the older version for the 48S), and the fan module QFX5100-FAN-AFO, labeled AIR OUT and colored Juniper Gold. Airflow in and airflow out fans and power supplies cannot be mixed in one chassis; converting an AIR OUT switch to AIR IN means replacing all the fans and power supplies at one time.
HOW IT DIFFERS
QFX5100-48S-AFO is the front-to-back airflow version of the 48 port 10GbE QFX5100: Juniper's hardware guide lists it as 48 SFP+ and 6 QSFP+ with AC supplies and Air Out (ports to FRUs), and 2 management ports. Juniper lists JPSU-650W-AC-AFO as the AC 650W PSU for front-to-back airflow and QFX5100-FAN-AFO as the front-to-back airflow fan module. QFX5100-48S-AFI is the same switch with back-to-front airflow on JPSU-650W-AC-AFI supplies. The 150 W of power consumption in the datasheet covers both, and the 48S measures 20.48 in deep.
Model
QFX5100-48S-AFO
Network Ports
48 × 1/10GbE
Connectors
SFP+, QSFP+
Type
Switch
Condition
Used, tested & guaranteed

Technical details

BrandJuniper
FamilyQFX5100
Uplinks6x 40GbE QSFP+
Total ports54
Fastest port40GbE
LayerLayer 3 (managed)
Operating systemJunos OS
Rack units1 U
AirflowFront-to-back (AFO)
Power inputAC
Throughput1.44 Tbps switching capacity, 1.07 Bpps forwarding

QFX5100-48S-AFO datasheet

Testing process

End of sale and support

ModelAnnouncedEnd of saleEnd of supportNotice
Juniper QFX5100 (24Q, 48S, 48T)Juniper notice

Questions about the Juniper QFX5100 family

What ports does the QFX5100-48S-AFO have?
The QFX5100-48S-AFO has 48 × 1/10GbE, with uplinks of 6x 40GbE QSFP+ and 54 data ports in all.
What is the throughput of the QFX5100-48S-AFO?
The QFX5100-48S-AFO has a throughput of 1.44 Tbps switching capacity, 1.07 Bpps forwarding.
Which way does the air flow on the QFX5100-48S-AFO?
The airflow of the QFX5100-48S-AFO is front-to-back (AFO).
What power does the QFX5100-48S-AFO use?
The QFX5100-48S-AFO uses AC.
How much rack space does the QFX5100-48S-AFO take?
The QFX5100-48S-AFO takes 1 U of rack space.
Is the Juniper QFX5100 end of life?
Yes. Juniper's QFX Series hardware milestones page gives two sets of dates for the models on this page. QFX5100-48S, 48T and 24Q models: end of life announced 30 April 2021, last order 1 July 2022, end of support 1 July 2027. QFX5100-96S models: announced 25 May 2022, last order 31 December 2022, end of support 31 December 2027.
What is the difference between AFO and AFI on a QFX5100?
Airflow direction. Air Out (AFO) draws air in at the port side and exhausts it past the power supplies and fans; Air In (AFI) runs the other way, from the power supply and fan side to the ports. Juniper notes that older switches called these front-to-back and back-to-front. Pick the direction that matches your hot and cold aisles; mixing directions in one chassis is not supported.
What is the difference between the QFX5100-48S and the QFX5100-48T?
The 48S has 48 SFP+ ports for 10GbE optics or direct attach cables. The 48T has 48 10GBASE-T copper RJ-45 ports. Both have six 40GbE QSFP+ ports.
Can QFX5100 switches be stacked or built into a fabric?
Yes. Up to ten QFX5100 switches form a QFX Virtual Chassis managed as one device. A Virtual Chassis Fabric scales to 20 devices in a spine and leaf design, with up to four QFX5100 spines, and EX4300 switches can join as leaf devices.
What condition and warranty come with a Juniper QFX5100 switch from Townsend?
Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.

How the QFX5100-48S-AFO differs

Here is how Juniper's documents set the QFX5100-48S-AFO apart from the QFX5100-48S-AFI. Compatible parts for the QFX5100-48S-AFI: Air In parts: the AC power supply JPSU-650W-AC-AFI, which has a blue handle (QFXC01-PWRACI-650A is the older version for the 48S), and the fan module QFX5100-FAN-AFI, labeled AIR IN and colored Juniper Azure Blue. Airflow in and airflow out fans and power supplies cannot be mixed in one chassis; converting an AIR IN switch to AIR OUT means replacing all the fans and power supplies at one time.

Both are listed with the same rack units: 1 U. Both are listed with the same switching capacity: 1.44 Tbps. Both are listed with the same forwarding rate: 1.08 Bpps.

Maker documents: Juniper QFX5100 Ethernet Switch Datasheet, QFX5100 Series 10/25/40/100GbE Switches | HPE Juniper Networking US

QFX5100-48S-AFO 48x 10GB SFP+ 6x 40GB QSFP+ F-B Airflow Switch

WHAT'S INCLUDED

One (1) Juniper QFX5100-48S-AFO. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

QFX5100-48S-AFO was tested by Townsend Networks technicians before listing. The test process is on the testing process.

Selling your Juniper QFX5100-48S-AFO? We buy used network gear.

Questions about the QFX5100-48S-AFO? Call 415-626-4231 or email sales@townsendnetworks.com.
